Oil-immersed Transformer

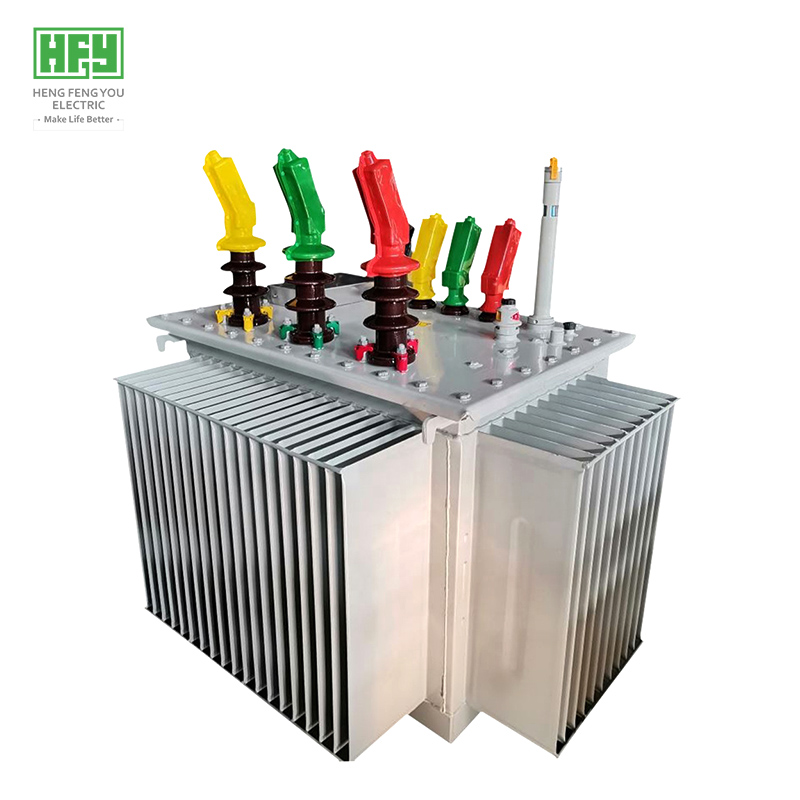

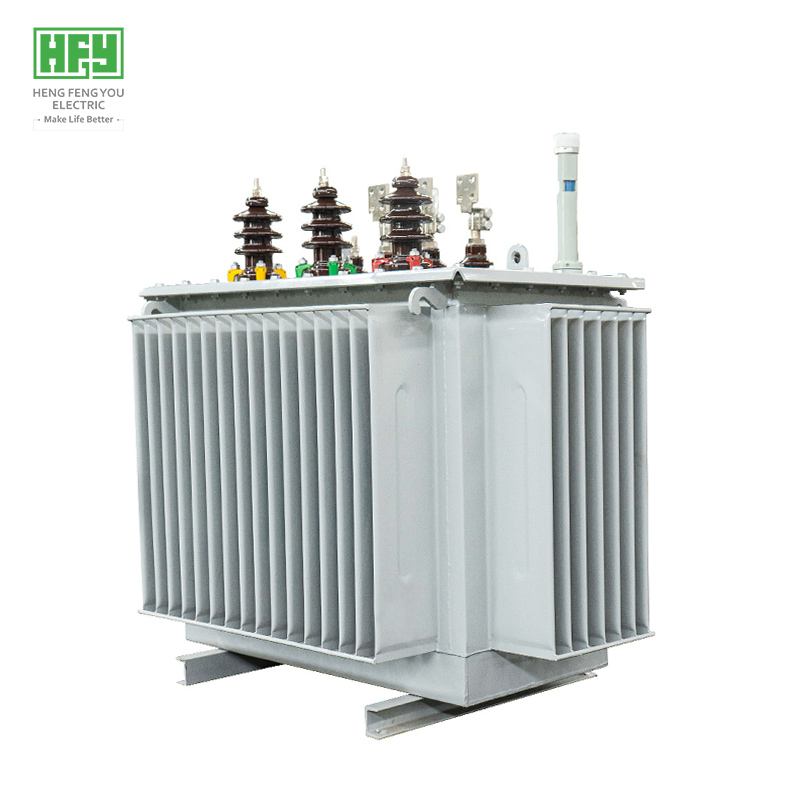

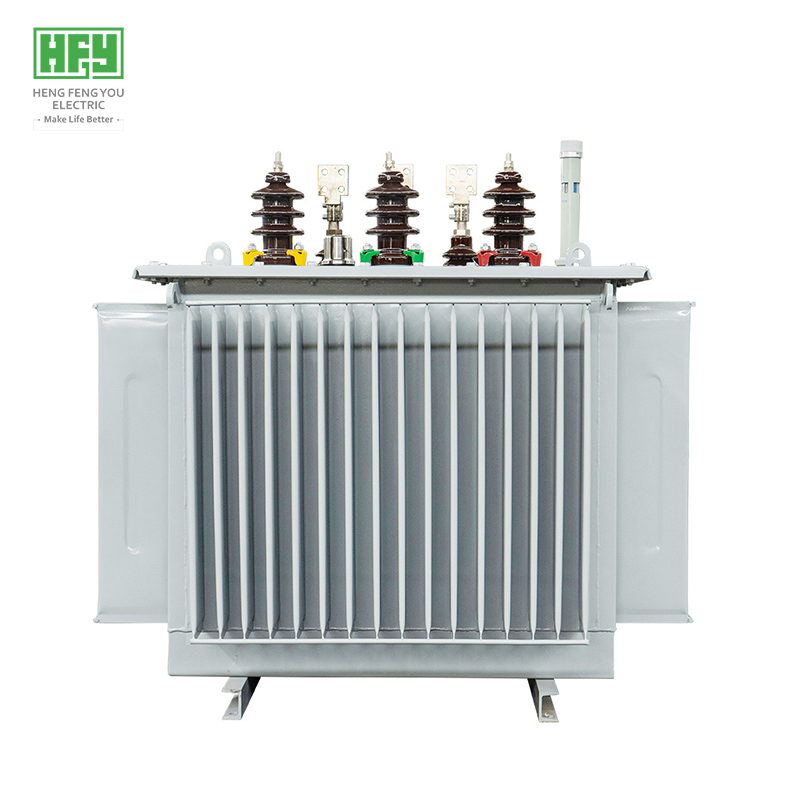

6KV Fully Sealed Three-phase Oil-immersed Power Plant Distribution Transformer

  • Brand: HENGFENGYOU
  • Series: S-M
  • USES: Distribution Transformer
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、CE、KEMA

Product overview

  - Lower loss, more energy saving
  - The actual measurement of the product is better than GB and IEC standards
  - More than 50 countries and regions around the world run verification of high reliability
  - Mainly used in power generation enterprises, industrial and mining enterprises 6KV distribution system
  - Products are mainly sold to Russia, Belarus, Ukraine, Uzbekistan, Kazakhstan, Tajikistan, Turkmenistan, Kyrgyzstan, Vietnam, North Korea and other countries and regions
  - Executive standard: IEC 60076 series, IEC 6013, IEC 60214-1, IEC 60296;GB1094 series, GB/T6451-2015, GB/T7597-2007, etc

6KV Fully Sealed Three-phase Oil-immersed Power Plant Distribution Transformer (S11-M Series)


Product advantage


-High voltage copper wire winding technology to improve lightning resistance performance

-Low voltage foil winding technology, high-quality A-E grade insulation material insulation

-Low magnetic leakage, high mechanical strength, and strong short-circuit resistance

-The material of the iron core is high-quality cold-rolled grain oriented silicon steel sheets with mineral oxide insulation (from Baosteel and Wuhan Iron and Steel Group in China)

-By controlling the process of cutting and stacking silicon steel sheets, the loss level, no-load current, and noise are minimized





Roduct parameters


  - Input voltage: 10kV/6kv、35kv/6kv
  - Output voltage: 6kV
  - Capacity: 50-2500 kva
  - Frequency: 50 hz

  - Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements



额定容量Capacity

额定电压及分接范围Rated voltage&Off-load tapping   联结组标号
Vector
 GroupSymbol
空载损耗
NO-load
loss(W)
负载损耗
Load loss(W)
空载电流
NO-load current(%)
短路阻抗Short
circuit impedance(%)
高压
H.V(kv)
高压分接范围
 High pressure
  Tap range(%)
低压
L.V(kv)
30 kva 11 10.5
10 6.3
6
±5%
±2x2.5%
0.4
0.415
0.420
0.430
0.440

Dyn11
Yyn0
100 630/600 1.5 4
50 kva 130 910/870 1.3 4
60 kva 150 1090/1040 1.2 4
75 kva 180 1310/1250 1.2 4
100 kva 200 1580/1500 1.1 4
125 kva 240 1890/1800 1.1 4
150 kva 280 2310/2200 1 4
200 kva 340 2730/2600 1 4
250 kva 400 3200/3050 0.9 4
300 kva 480 3830/3650 0.9 4
400 kva 570 4520/4300 0.8 4
500 kva 680 5410/5150 0.8 4
600 kva 810 6200 0.6 4.5
750 kva 980 7500 0.6 4.5
1000 kva 1150 10300 0.6 4.5
1250 kva 1360 12000 0.5 4.5
1500 kva 1640 14500 0.5 4.5
2000 kva 1940 18300 0.4 5
2500 kva 2290 21200 0.4 5

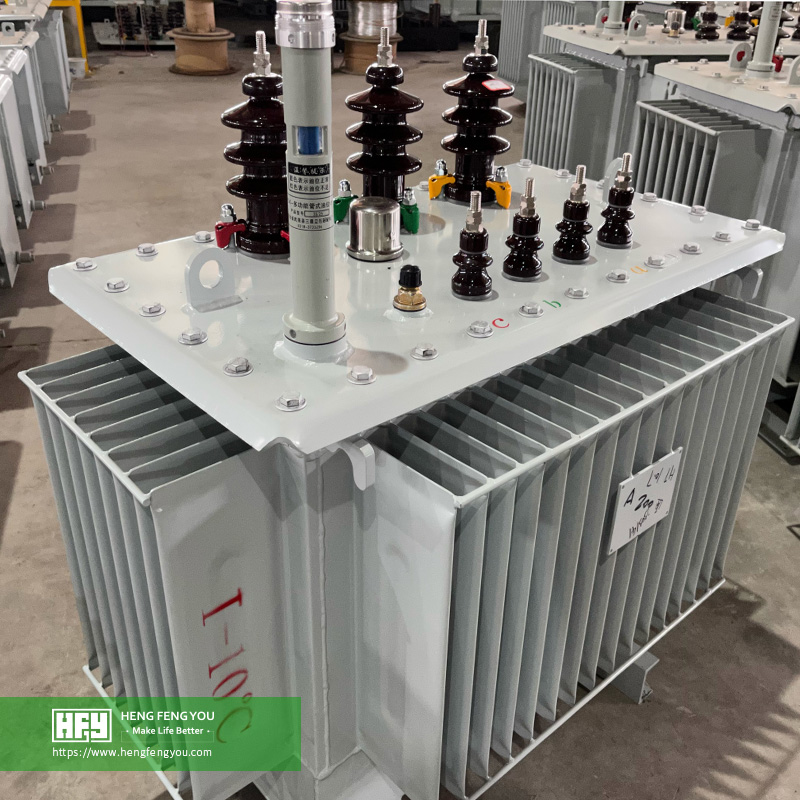

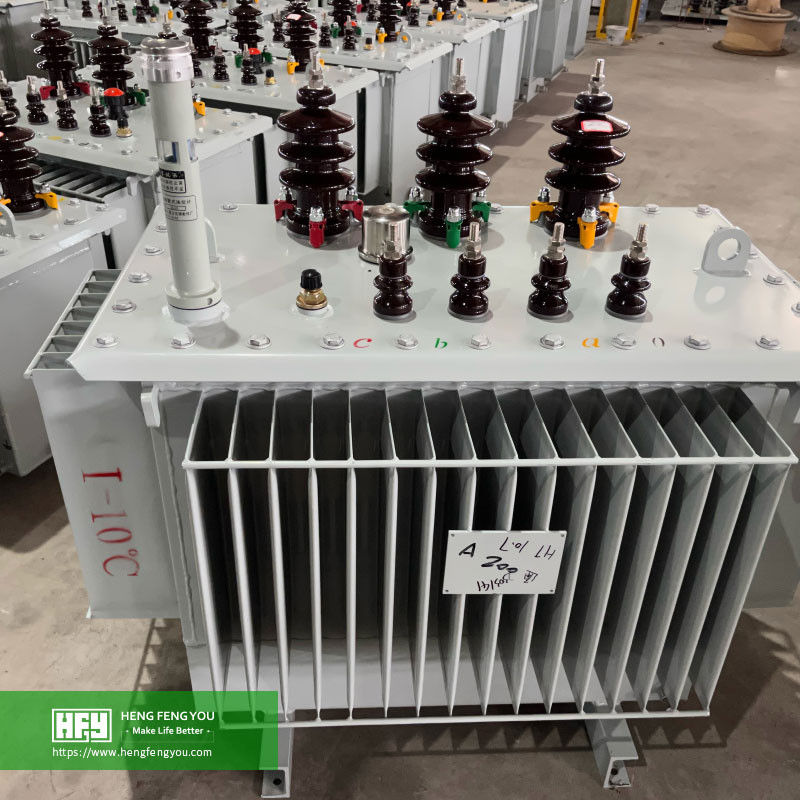

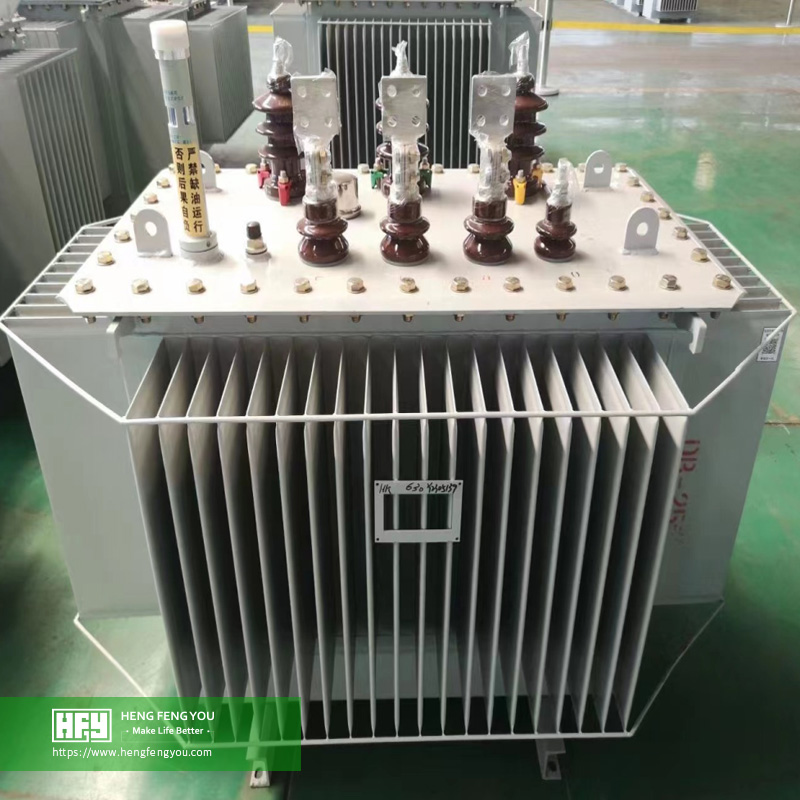

Case show
