Compact Transformer

Compact transformer (American type box transformer)

  • Brand: HENGFENGYOU
  • Series: ZGS
  • USES: Low cost, high reliability, intelligent urban power distribution solution
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、CE、KEMA

Product overview


 - ZGS series compact transformer, it is the transformer, switchgear, fuse, tap switch, low voltage distribution device and other relevant auxiliary equipment combination transformer, can meet the user's energy measurement, reactive power compensation, low voltage branch and other configuration requirements
 - Rated AC frequency 50Hz/ 60Hz, maximum working voltage to 35KV, capacity 250, 315, 400, 500, 630, 800KVA
 - The equipment is widely used in industrial parks, urban residential areas, commercial centers, high-rise buildings and other places
 - Products are mainly sold to East Asia, Southeast Asia and other regions, providing OEM/ODM services
 - Executive standards: IEC60067, GB17467-2010, etc
Box transformer,pad mounted transformer,<a href='https://www.hengfengyou.com/products/compact-transformer/' target='_blank'><u>Compact transformer</u></a>

Product advantage

Leading technology
- Fully enclosed, fully insulated structure, safe and reliable operation
- Low loss, low noise, low temperature rise, strong load capacity over fixed capacity, strong resistance to sudden short circuit
- Flexible wiring mode, can be used for terminal system, also can be used for ring network system, convenient conversion, improve the power supply reliability
- Easy to operate, maintenance-free, low equipment cost

Enclosure
- Made of cold rolled high quality hot dip galvanized sheet
- The surface is treated by electrostatic spray, and the paint can not be taken off for 50 years
- Laser numerical control equipment cutting, drilling, bending, to ensure the processing accuracy

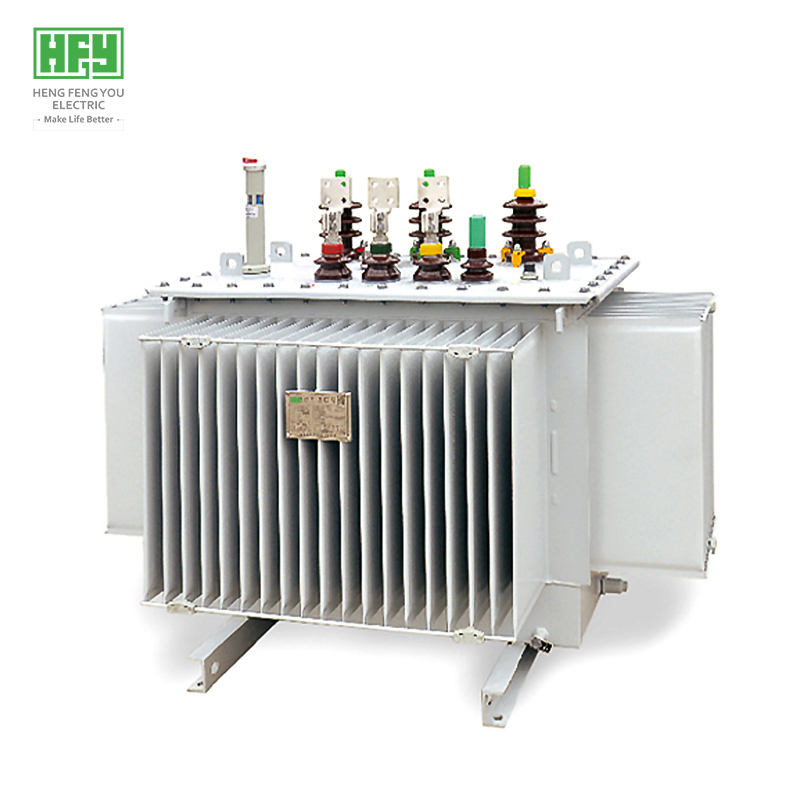

- The transformer is a low loss oil-immersed transformer produced by Hengfeng You Electric

Processing and assembly
- Assembly workers have been trained for at least 6 months
- Secondary wiring is fully automatic equipment cutting to ensure reliable wiring
- Use power tools to ensure proper torque for bolting reinforcement
- The copper bus is CNC punching and bending
- All kinds of experimental tests before leaving the factory to ensure normal operation


Product parameters

  - Capacity: 150KVA、250KVA、315KVA、400KVA、500KVA、630KVA、800 KVA

Conditions of use

 - Altitude shall not exceed 2000m
 - The ambient air temperature shall not be higher than +40 degrees, or less than -25 degrees.
And the average temperature within 24 hours shall not be higher than +35 degrees
 - Air humidity not greater than 90% (+25℃)
 - The inclination with the vertical plane shall not exceed 5° during installation, and the whole group of cabinets shall be relatively flat in line with (GBJ232-2) standard
 - Install in the place without violent vibration and shock, electrical components will not be corroded


Ordering instructions

At the time of ordering, the customer shall provide the following information:
 - Schematic diagram of primary loop and system diagram of secondary loop.
 - Electrical schematic diagram and terminal layout of auxiliary circuit
 - Equipment layout drawing, combination drawing and floor plan.
 - Brand model, specification and quantity of main electrical components of the equipment.
 - Inlet and outlet methods and cable specifications.
 - Equipment surface color.
 - Other special requirements can be negotiated with Hengfengyou Electric


Our Advantages

 - Authoritative product certification: ISO CE, CB, CCC, etc
 - Perfect SQA quality management system to ensure high quality products
 - Quick quotation, can provide electrical design services
 - Short delivery cycle, fast delivery worldwide
 - Perfect after-sales service system, so that customers buy worry-free
- Welcome customers to visit the factory guidance, provide OEM/ODM protection level
