Pad Mounted Transformer

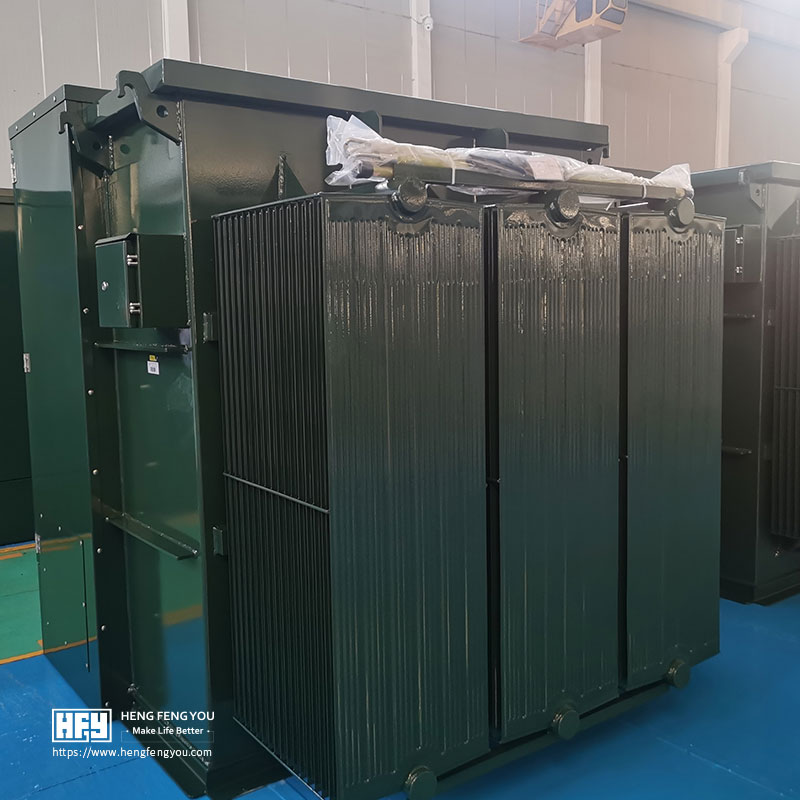

3000KVA Pad Mounted Transformer

  • Series: ZGS
  • USES: Pad Mounted Transformer
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、UL、CSA

Product overview

 - 3000 KVA Pad Mounted Transformer, it is the transformer, switchgear, fuse, tap switch, low voltage distribution device and other relevant auxiliary equipment combination transformer, can meet the user's energy measurement, reactive power compensation, low voltage branch and other configuration requirements
 - Rated AC frequency 50Hz/ 60Hz, maximum working voltage to 38.5KV
 - The equipment is widely used in industrial parks, urban residential areas, commercial centers, high-rise buildings and other places
 - Products are mainly sold to USA,East Asia, Southeast Asia and other regions, providing OEM/ODM services
 - Executive standards:ANSI C57,DOE,CSA,IEEE, IEC60067, GB 1094, GB17467-2010, GB/T 14048.8.1 GB 4208
3000 kva pad mounted transformer,3000 kva pad mounted <a href='https://www.hengfengyou.com/products/' target='_blank'><u>transformer price</u></a>

Product advantage
- Fully enclosed, fully insulated structure, safe and reliable operation
- Low loss, low noise, low temperature rise, strong load capacity over fixed capacity, strong resistance to sudden short circuit
- Flexible wiring mode, can be used for terminal system, also can be used for ring network system, convenient conversion, improve the power supply reliability
- Easy to operate, maintenance-free, low equipment cost
Product parameters

Capacity: 3000KVA Pad Mounted Transformer
Rated voltage: 10kV, 13.2kV, 13.8kV, 24.9kV, 33kV, 34.5kV
Maximum operating voltage:38.5kV
Pad Mounted Transformer Technical Specification
RatedPower(KVA) H.V(KV) L.V(V) Loss(W) Dimension(CM) Weight(KG)
No-loadLoss (W) On-loadLoss (W) W D H Oil   Weight Total  Weight
75KVA 34.5KV
180 1250 1390 910 1430 120 645
112.5KVA 200 1500 1420 920 1430 138 729
150KVA 280 2200 1510 980 1530 201 989
225KVA 400 3050 1600 1000 1660 230 1195
300KVA 480 3650 1660 1080 1680 260 1415
500KVA 680 5100 1810 1160 1790 325 1905
750KVA 980 7500 2030 1300 2030 535 2755
1000KVA 1150 10300 1651 1549 1854 650 3235
1500KVA 1640 14500 2210 1470 2150 748 5835
2000KVA 2160 20645 2380 1600 2220 950 6430
2500KVA 2680 27786 2480 1650 2330 1020 8865
Connections and neutral configurations
•     Delta - Wye: Low voltage neutral shall be a fully insulated X0 bushing with removable ground strap.
•     Grounded Wye-Wye: High voltage neutral shall be internally tied to the low voltage neutral and brought out as the H0X0 bushing in the secondary compartment with a removable ground strap.
•     Delta-Delta: Transformer shall be provided without a neutral bushing.
•     Wye-Wye: High voltage neutral shall be brought out as the H0 bushing in the primary compartment and the low voltage neutral shall be brought as the X0- bushing in the secondary compartment.
•     Wye-Delta: High voltage neutral shall be brought out as the H0 bushing in the primary compartment. No ground strap shall be provided (line to line rated fusing is required).
High and low voltage bushings
•     200 A bushing wells (15, 25, and 35 kV)
•     200 A, 35 kV Large Interface
•     600 A (15, 25, and 35 kV) Integral bushings (dead-front)
Electrical-grade wet-process porcelain bushings(live-front)
Tank/cabinet features
•    Bolted cover for tank access (45-2500 kVA)
•    Welded cover with hand hole (>2500 kVA)
•    Three-point latching door for security
•    Removable sill for easy installation
•    Lifting lugs (4)
•    Stainless steel cabinet hinges and mounting studs
•    Steel divider between HV and LV compartment
•    20" Deep cabinet (45-1000 kVA)
•    24" Deep cabinet (1500-7500 kVA)
•    30" Deep cabinet (34.5/19.92 kV)
•    Pentahead captive bolt
•    Stainless steel 1-hole ground pads (45-500 kVA)
•    Stainless steel 2-hole ground pads (750-10,000 kVA)
•    Parking Stands (dead-front)
•    One-inch upper filling plug
•    One-inch drain plug (45-500 kVA)
•    One-inch combination drain valve with sampling device in low voltage compartment (750-10,000 kVA)
•    Automatic pressure relief valve
•    Laser-scribed anodized aluminum nameplate
Case show

Business Cooperation

Grow business with Hengfengyou
Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.

Our advantages

  - Authoritative certification: ISO9001、CE、CCC、COC、UL、CSA, etc
  - Perfect SQA quality management system and patented technology to ensure high quality products
  - Efficient production equipment and low raw material prices to ensure the price advantage
  - Sufficient inventory, short delivery time and  fast delivery worldwide
  - Perfect after-sales service system, allowing customers to buy worry-free
  - Provide OEM/ODM services. Welcome clients to visit our factory.
