Product overview
- It is used for power or lighting distribution in power distribution systems such as three-phase three-wire, three-phase four-wire, three-phase five-wire and other distribution systems under three-phase AC 660V
- Rated AC frequency 50HZ / 60Hz, maximum working voltage to 660V, rated current 800A
- High reliability of operation verification in more than 50 countries and regions around the world,Kuwait, UAE, Saudi Arabia, Iraq, Qatar, Tanzania, Zimbabwe, Ghana, South Africa, Kenya, Zambia, Libya, Myanmar, Philippines, Bangladesh, Nepal,Uzbekistan, Kazakhstan, Kyrgyzstan, Mongolia, Indonesia, Pakistan,Vietnam etc.
- Mainly used in power generation enterprises, industrial and mining enterprises and other fields
- Electrical performance in full compliance with GB7251 and IEC60439 related regulations
Product advantage
> Leading technology
- Standard anti-corrosion and salt spray environmental plan to meet the stringent environmental requirements of the site
- It can be equipped with circuit breakers of various brands at home and abroad, such as Chint NXBF series, ABB TS200 series, Schneider A9/E9 series, etc
- Compact design to accommodate more functional units in a smaller space
> Cabinet put oneself in another's position
- The whole machine is welded with 1.5-2mm cold rolled hot dip galvanized sheet or stainless steel sheet
- Laser numerical control equipment cutting, drilling, bending, to ensure the processing accuracy
- Size and material can be arbitrarily specified
- The exterior is coated with electrostatic epoxy powder, which will not take off paint for 50 years
> Functional units

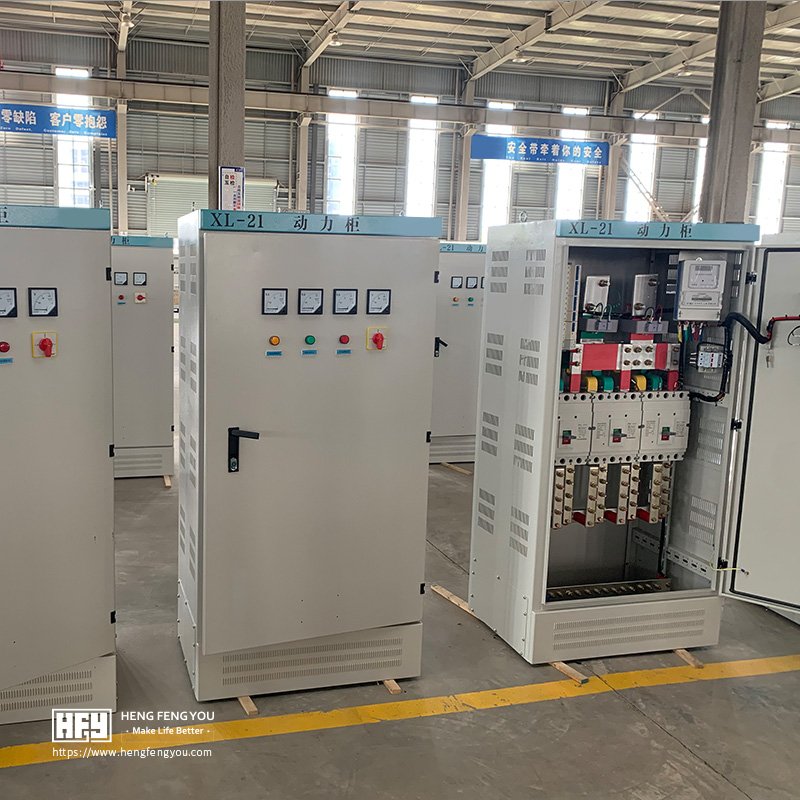

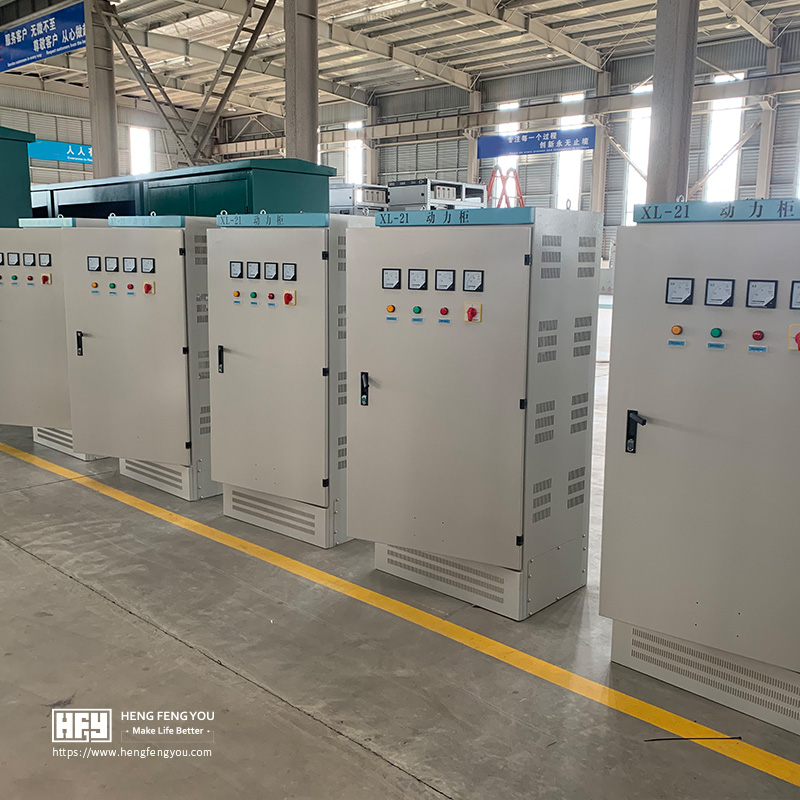

- The door is equipped with voltage, current indicator meters and signal lights, buttons, transfer switches and other main command components

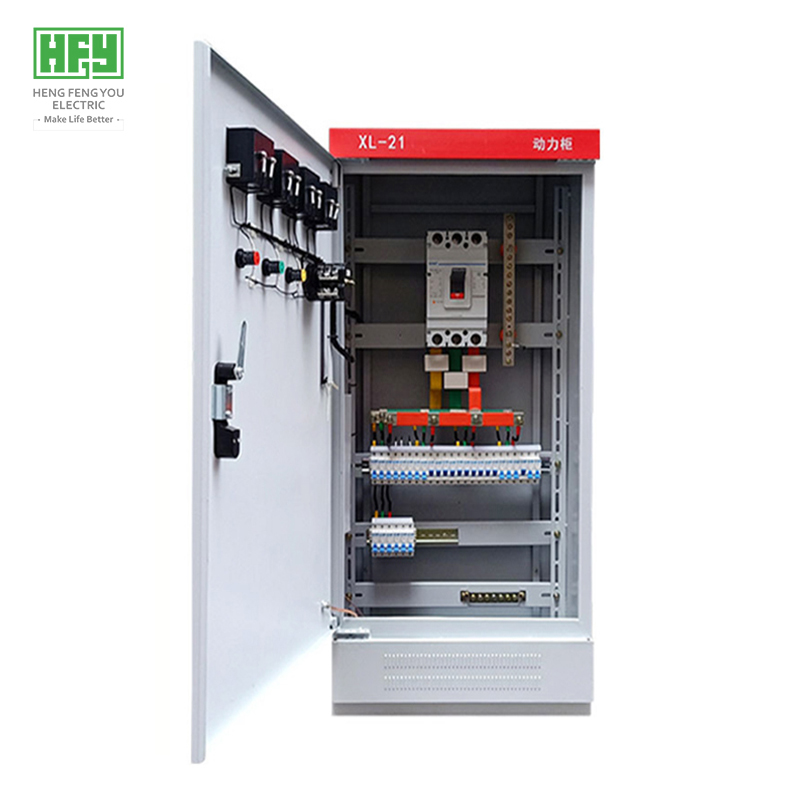

- New rotary load isolating switch is adopted in the box, which can be operated with load on the front
> Processing and assembly
- Dust-free workshop to ensure insulation
- Assembly workers have been trained for at least 6 months
- The secondary connection is automatic terminal crimping machine to ensure reliable connection
- Use power tools to ensure proper torque for bolting reinforcement
- The copper bus is CNC cutting, punching and bending to ensure the accuracy
- All kinds of experimental tests before delivery to ensure the normal operation of the equipment
Product parameters
>Waterproof grade IP56
Meet iec60529:2001 standard
For detailed parameters, please contact us
Conditions of use
- Altitude shall not exceed 2000m
- The ambient air temperature shall not be higher than +40 degrees, or less than -5 degrees
- ambient air humidity does not exceed 50%, low temperature allows a large relative temperature (e.g. +20 ° for 90%)
- Electrical components are free from corrosion and conductive dust
Ordering instructions
> The customer shall provide the following information:
- Main circuit scheme diagram, secondary circuit system diagram and auxiliary circuit control mode
- Equipment layout drawing and distribution room layout drawing
- Brand and model of main electrical components of the equipment
- Inlet and outlet line mode. When bus bridge connection is needed between devices, data such as bus spacing and height from ground shall be provided.
- Other special requirements can be negotiated with Hengfengyou Electric
Our Advantages
- Authoritative product certification: ISO CE, CB, CCC, etc
- Perfect SQA quality management system to ensure high quality products
- Quick quotation, can provide electrical design services
- The delivery period is short, and the fastest delivery time is 15 days worldwide
- Perfect after-sales service system, so that customers buy worry-free
- Welcome customers to visit the factory guidance, provide OEM/ODM protection level
