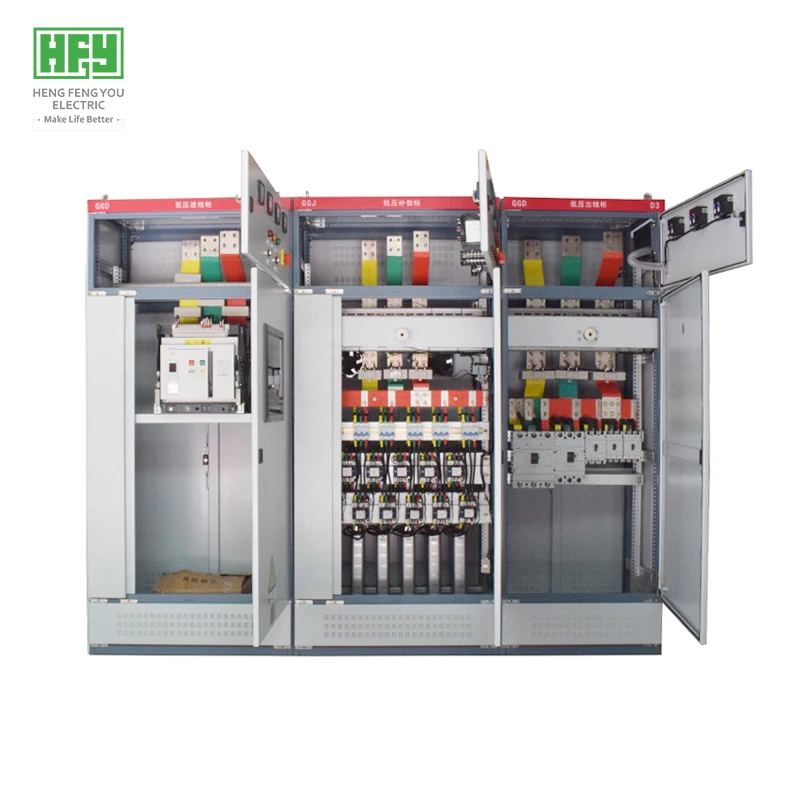

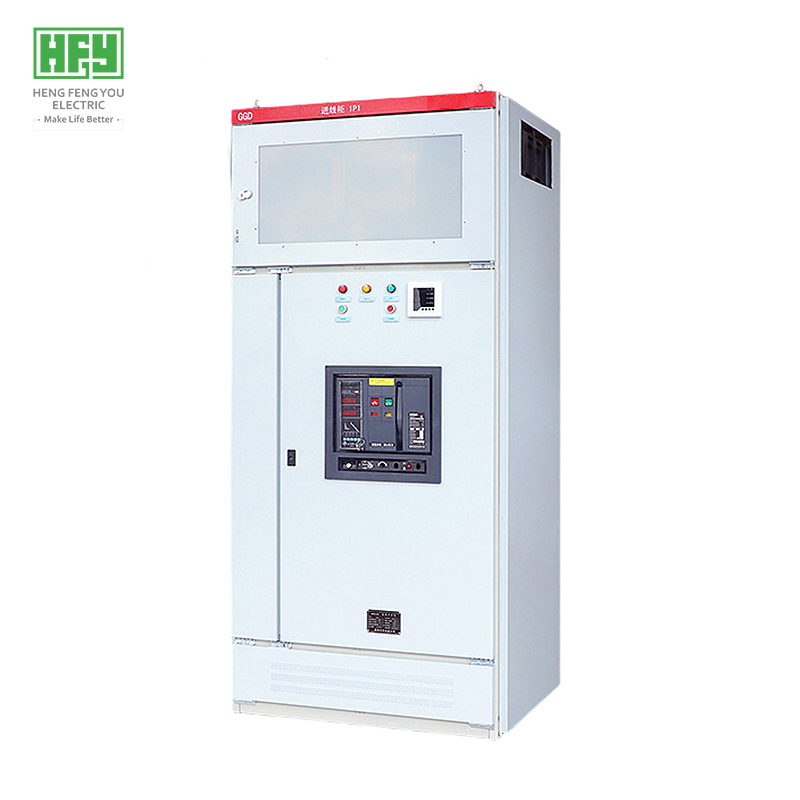

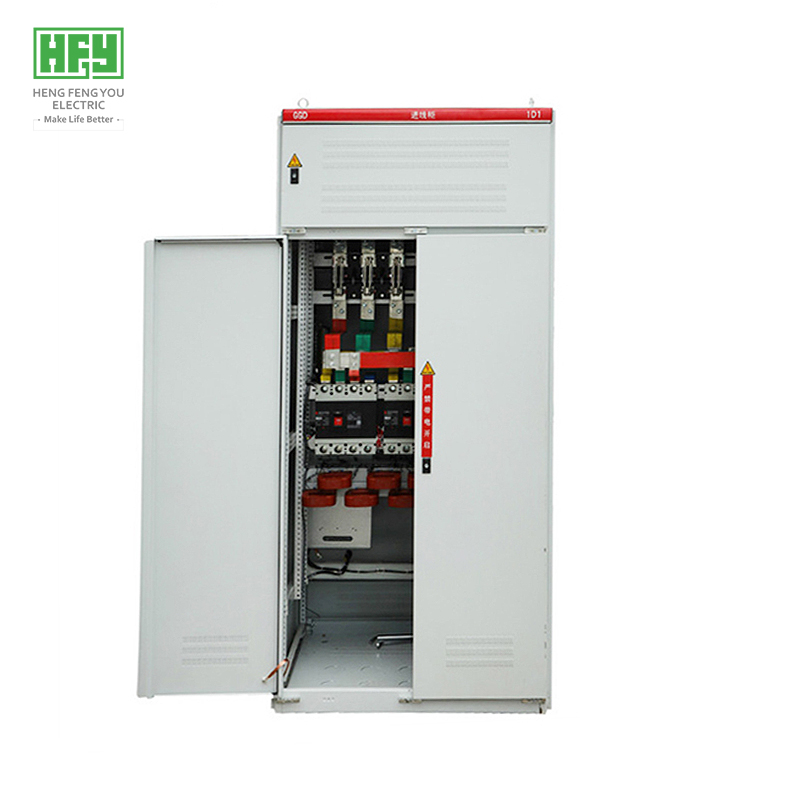

GGD series fixed switchgear overview
- Used for receiving feed, bus, lighting, motor control and power compensation in low voltage distribution systems
- Include power center (PC) and motor control center (MCC) functions
- Rated AC frequency 50Hz/ 60Hz, maximum working voltage to 660V, maximum working current to 3150A
- High reliability of operation verification in more than 50 countries and regions around the world
- Mainly used in industrial parks, urban residential areas, commercial centers, high-rise buildings and other power distribution sites
- Meet many international standards: IEC60439, BS5486, VDE0660, GB7251, NEMAIC2-322, JB/T9661, etc
GGD series fixed switchgear advantages
> Leading technology
- High breaking capacity, good dynamic and thermal stability
- Standard anti-corrosion and salt spray environmental plan to meet the stringent environmental requirements of the site
- High breaking capacity, good dynamic and thermal stability
> Cabinet put oneself in another's position
- The overall use of 2-3mm high quality cold rolled hot dip galvanized sheet, local welding
- Laser numerical control equipment cutting, drilling, bending, to ensure the processing accuracy
- There are different number of heat dissipation slots at both ends of the cabinet body to form a natural ventilation channel to achieve the purpose of heat dissipation
- The exterior is coated with electrostatic epoxy powder, which will not take off paint for 50 years
- Molding size, hole size and equipment interval are modularized (modulus E=20mm)
> Functional units
- The instrument doors with electrical components are connected to the frame by multiple strands of flexible copper wire
- The mounting parts in the cabinet are connected with the frame with knurled screws. The whole cabinet forms a complete grounding protection circuit
> Busbar system
- Adopt three-phase four-wire system or three-phase five-wire system
- High quality three-phase tin bus copper bar, high mechanical strength, good heat dissipation
> Processing and assembly
- Dust-free workshop to ensure insulation
- Assembly workers have been trained for at least 6 months
- The secondary connection is automatic terminal crimping machine to ensure reliable connection
- Use power tools to ensure proper torque for bolting reinforcement
- The copper bus is CNC cutting, punching and bending to ensure the accuracy
- All kinds of experimental tests before delivery to ensure the normal operation of the equipment
GGD series fixed switchgear parameters
|
model
|
Rated voltage (V)
|
Rated current (A)
|
Rated short circuit breaking current
|
Rated short circuit tolerance current
|
Rated peak permissible current
|
|
GGD-1000-15
|
380
|
1000
|
15
|
15
|
30
|
|
600（630）
|
|
400
|
|
GGD-1600-30
|
380
|
1500（1600）
|
30
|
30
|
63
|
|
1000
|
|
600
|
|
GGD-31500-50
|
380
|
3150
|
50
|
50
|
105
|
|
2500
|
|
2000
|
Conditions of use
- Altitude shall not exceed 2000m
- ambient air temperature not higher than +40 ° C, not lower than -5 ° C (average temperature within 24 hours not higher than +35 ° C)
- The humidity of the surrounding air should not exceed 50%. Low temperature allows a large relative temperature (e.g. +20 ° C is 90%). Consideration should be given to the effect of condensation caused by temperature changes
- Inclination with vertical plane is not more than 5°, and the whole group of cabinets is relatively flat, in line with (GBJ232-2) standard
- Requested in no violent vibration and impact, electrical components will not be corroded, no conductive dust place
GGD series fixed switchgear Ordering instructions
> The customer shall provide the following information:
- Main circuit scheme diagram, secondary circuit system diagram and auxiliary circuit control mode
- Equipment layout drawing and distribution room layout drawing
- Brand and model of main electrical components of the equipment
- Inlet and outlet line mode. When bus bridge connection is needed between devices, data such as bus spacing and height from ground shall be provided.
- Other special requirements can be negotiated with Hengfengyou Electric
Our Advantages
- Authoritative product certification: ISO CE, CB, CCC, etc
- Perfect SQA quality management system to ensure high quality products
- Quick quotation, can provide electrical design services
- The delivery period is short, and the fastest delivery time is 15 days worldwide
- Perfect after-sales service system, so that customers buy worry-free
- Welcome customers to visit the factory guidance, provide OEM/ODM protection level
GGD series fixed switchgear FAQ
-
What is the main application of GGD series fixed switchgear?
GGD series fixed switchgear is widely used in power distribution systems, providing control, protection, and monitoring for industrial and commercial electrical networks.
-
What are the rated voltage and current specifications of GGD switchgear?
The rated voltage is typically 380V or 660V AC, with a rated current range from 100A to 3150A, depending on the model.
-
What protection functions does GGD switchgear offer?
It includes overcurrent, short-circuit, overload, and earth leakage protection to ensure safe operation.
-
Is GGD switchgear suitable for harsh environments?
Yes, it features a robust design with corrosion-resistant materials, making it suitable for industrial environments with dust and humidity.
-
What standards does GGD switchgear comply with?
It meets international standards such as IEC 61439 and GB 7251 for low-voltage switchgear and controlgear assemblies.
-
Can GGD switchgear be customized for specific applications?
Yes, it supports modifications in busbar configuration, protection devices, and enclosure materials based on customer requirements.
-
What is the installation method for GGD switchgear?
It is designed for fixed installation, either floor-mounted or wall-mounted, depending on the model.
-
Does GGD switchgear support remote monitoring and control?
Optional intelligent modules can be integrated for real-time monitoring, remote control, and communication with SCADA systems.
-
What maintenance is required for GGD switchgear?
Regular inspections should include checking electrical connections, insulation resistance, and mechanical operation of circuit breakers.
-
What are the key advantages of GGD series over other switchgear?
It offers high reliability, modular design, strong short-circuit resistance, and cost-effective performance for power distribution needs.
