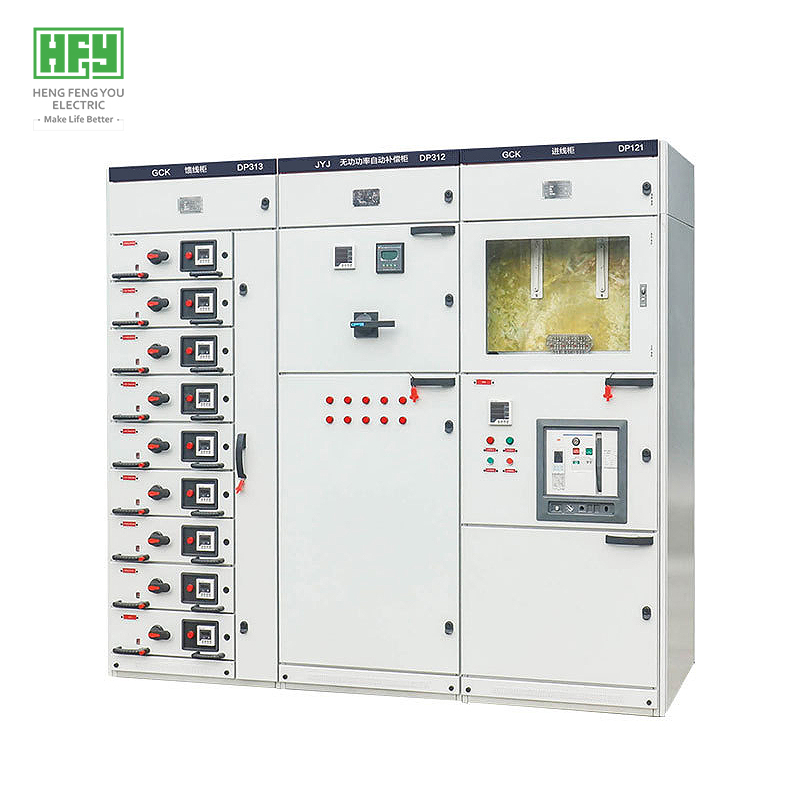

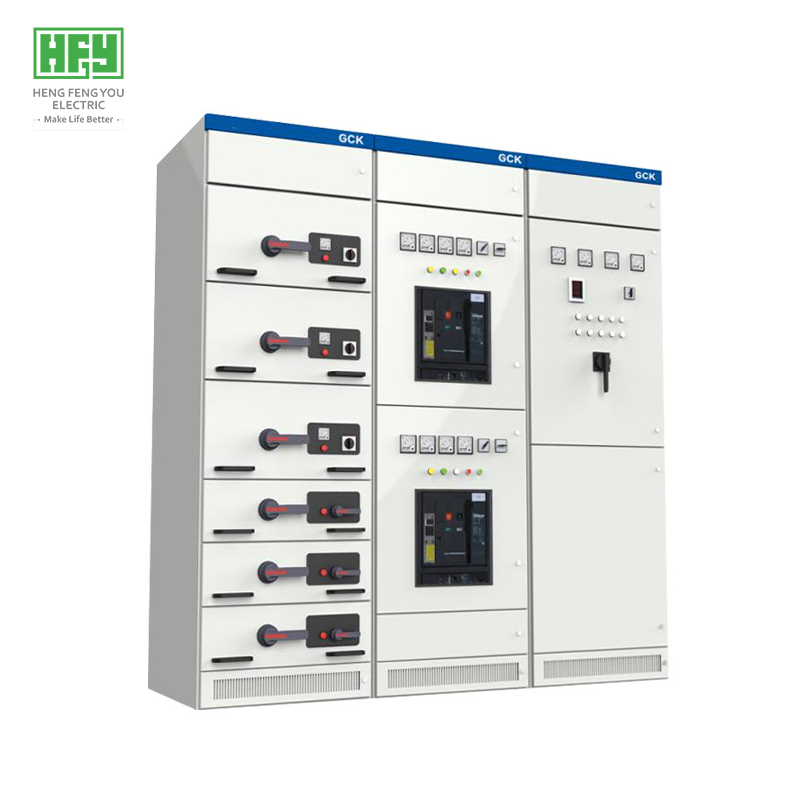

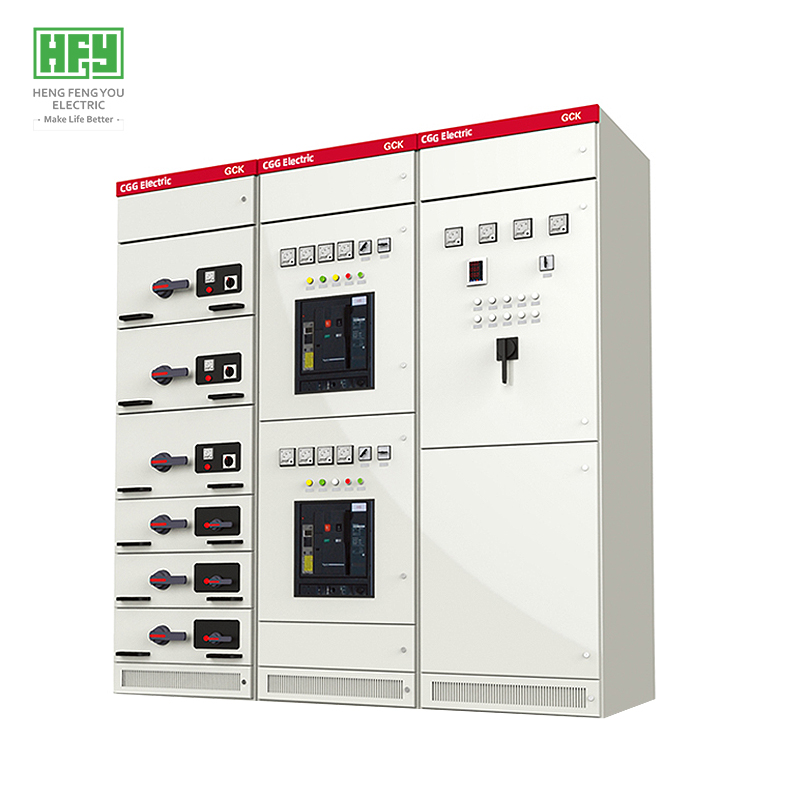

GCK low pressure draw-off switchgear overview
- Low voltage distribution system for receiving feed, bus, lighting, motor control and power compensation
- Include power center (PC) and motor control center (MCC) functions
- Rated AC frequency 50Hz/ 60Hz, maximum working voltage to 660V, maximum working current to 3150A
- High reliability of operation verification in more than 50 countries and regions around the world
- Mainly used in industrial parks, urban residential areas, commercial centers, high-rise buildings and other power distribution sites
- Meet many international standards: IEC60439, BS5486, VDE0660, GB7251, NEMAIC2-322, JB/T9661, etc
GCK low pressure draw-off switchgear advantage
> Leading technology
- Standard anti-corrosion and salt spray environmental plan to meet the stringent environmental requirements of the site
- The cabinet rack is a combined assembly structure, which is welded free structure with special-shaped steel and Angle plate positioning bolt connection, which improves the installation accuracy
- It can be equipped with circuit breakers of various brands at home and abroad, such as Chint NXM series, ABB TMAX series, Schneider NSX series, etc
- High breaking capacity, good dynamic and thermal stability, advanced structure, any combination of various scheme units
- The single cabinet contains more loops, saving the ground area, easy maintenance and high level of security protection (IP30)
> Cabinet put oneself in another's position
- Adopts 2-3mm high quality cold rolled hot dip galvanized sheet as a whole
- Laser numerical control equipment cutting, drilling, bending, to ensure the processing accuracy
- The exterior is coated with electrostatic epoxy powder, which will not take off paint for 50 years
- Molding size, hole size and equipment interval are modularized (modulus E=20mm).
- The cabinet rack is divided into bus, functional unit and cable, which are separated from each other to prevent the spread of accidents and facilitate live maintenance
> Functional unit (drawer part)
- Functional unit: feeding unit, motor unit, public power unit
- The door panel of the compartment is mechanically linked with the drawer by the operating mechanism of the main switch. When the main switch is closed, the door panel cannot be opened
- The operating machinery of the main switch can be locked in the closing or opening position by a picklock, so that the maintenance of electrical equipment can be carried out safely
- The back of the function unit is provided with the inlet and outlet plug of the main circuit, secondary plug of the auxiliary circuit and grounding plug
- The grounding plug enables the drawer to protect the continuity of the circuit when separating the test connection position
- The compartments of functional units are separated by movable metal partitions, which open and close automatically as the drawers are pushed and pulled out, so that they cannot touch the vertical bus bars in the compartments
> Busbar system
- Adopt three-phase four-wire system or three-phase five-wire system
- High quality three-phase tin bus copper bar, high mechanical strength, good heat dissipation
- The flat bus arrangement makes the device have good dynamic and thermal stability, and can withstand 80/176kA short circuit current impact
> Processing and assembly
- Dust-free workshop to ensure insulation
- Assembly workers have been trained for at least 6 months
- The secondary connection is automatic terminal crimping machine to ensure reliable connection
- Use power tools to ensure proper torque for bolting reinforcement
- The copper bus is CNC cutting, punching and bending to ensure the accuracy
- All kinds of experimental tests before delivery to ensure the normal operation of the equipment
GCK low pressure draw-off switchgear parameters
GCK low pressure draw-off switchgear Ordering instructions
> The customer shall provide the following information:
- Main circuit scheme diagram, secondary circuit system diagram and auxiliary circuit control mode
- Equipment layout drawing and distribution room layout drawing
- Brand and model of main electrical components of the equipment
- Inlet and outlet line mode. When bus bridge connection is needed between devices, data such as bus spacing and height from ground shall be provided.
- Other special requirements can be negotiated with Hengfengyou Electric
Our Advantages
- Authoritative product certification: ISO CE, CB, CCC, etc
- Perfect SQA quality management system to ensure high quality products
- Quick quotation, can provide electrical design services
- The delivery period is short, and the fastest delivery time is 15 days worldwide
- Perfect after-sales service system, so that customers buy worry-free
- Welcome customers to visit the factory guidance, provide OEM/ODM protection level
GCK low pressure draw-off switchgear FAQ
-
What is the main function of GCK low voltage draw-out switchgear?
It is designed for power distribution, motor control, and circuit protection in low-voltage systems, allowing easy maintenance with its draw-out design.
-
What is the rated voltage and current range of GCK switchgear?
The standard rated voltage is up to 690V AC, with a current range typically from 400A to 4000A, depending on the configuration.
-
What protection features does GCK switchgear offer?
It includes overcurrent, short-circuit, earth fault, and under-voltage protection, ensuring safe operation.
-
How does the draw-out mechanism work?
The circuit breakers or functional units can be easily pulled out for maintenance without disconnecting the entire system, improving efficiency.
-
Is GCK switchgear suitable for harsh environments?
Yes, it has a robust enclosure with corrosion resistance and can operate in high-humidity or dusty conditions when properly specified.
-
What standards does GCK switchgear comply with?
It meets international standards such as IEC 61439, GB 7251, and may have CE or UL certification depending on the model.
-
Can GCK switchgear be customized for specific applications?
Yes, it supports modular configurations, including different breaker types, metering options, and communication interfaces.
-
What is the typical lifespan of GCK switchgear?
With proper maintenance, it can last 20-30 years, depending on operating conditions and load demands.
-
How is heat dissipation managed in GCK switchgear?
Ventilation slots, cooling fans, or heat-resistant materials are used to maintain optimal temperature levels.
-
What maintenance is required for GCK switchgear?
Regular inspection of connections, lubrication of moving parts, and testing of protection devices are recommended for reliable performance.
