220 kV Vehicle-Mounted Mobile Power Substation (HVMM Series) Global Procurement Guide

I. 220 kV Mobile Substation Overview and Global Market Expansion

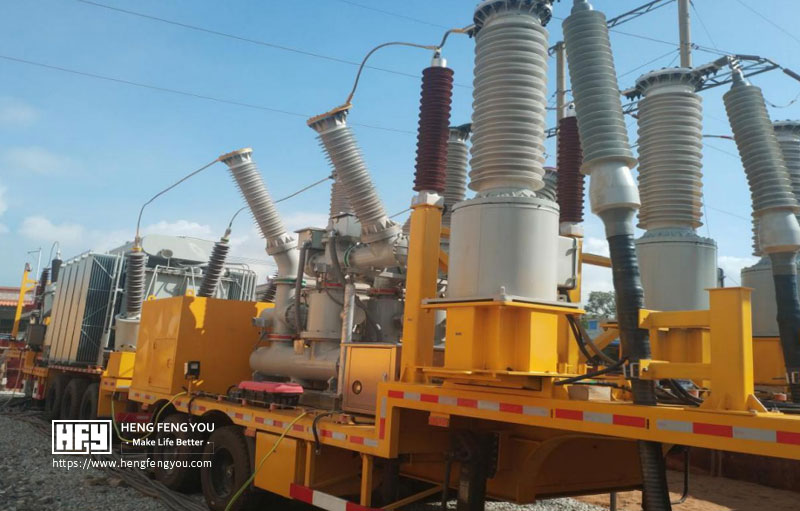

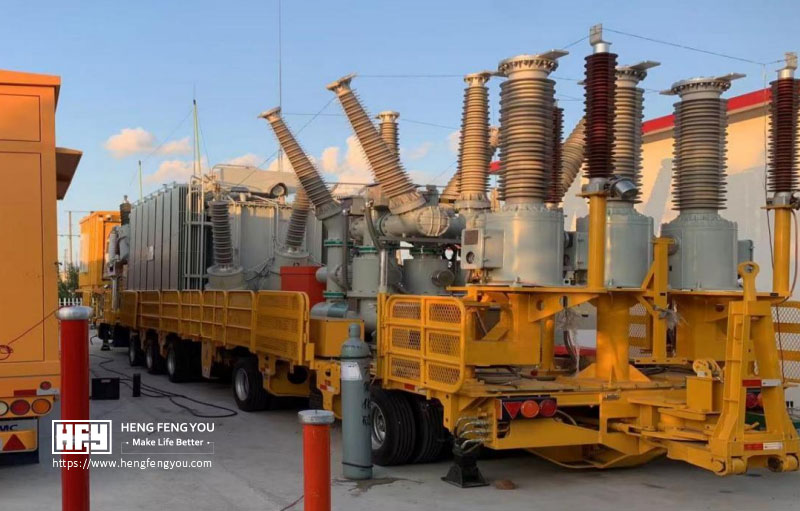

The 220 kV series vehicle-mounted mobile power substation produced by Hengfengyou Electric is a highly engineered, combined substation solution. It integrates primary and secondary electrical assemblies onto a heavy-duty, load-bearing chassis trailer. This premium configuration seamlessly combines high-voltage gas-insulated switchgear (GIS/HGIS), low-loss main power transformers, intelligent protection systems, automated communication terminals, and auxiliary power supplies into a modular distribution powerhouse.

Flexible and Efficient Emergency Power Solutions

Driven by the global demand for immediate, resilient power infrastructure, vehicle-mounted mobile substations have become a critical asset for utilities worldwide. They ensure high operational deployment rates and minimize downstream downtime during grid emergencies.

Worldwide Distribution and Export Regions

Hengfengyou’s 220 kV HVMM mobile substations are field-proven and actively exported to key global utility markets and industrial zones:

• Africa: South Africa, Tanzania, Ethiopia, Nigeria, Angola, Kenya, Ghana, Zambia, Zimbabwe, Algeria, Morocco.

• Middle East: United Arab Emirates (UAE), Saudi Arabia, Iraq, Iran, Oman, Qatar, Kuwait, Jordan.

• Central & South Asia: Uzbekistan, Kazakhstan, Tajikistan, Turkmenistan, Kyrgyzstan, Pakistan, Bangladesh, Sri Lanka.

• Southeast Asia: Vietnam, North Korea, Indonesia, Philippines, Malaysia, Thailand, Myanmar.

• Americas: United States, Canada, Mexico, Brazil, Ecuador, Chile, Peru, Colombia, Argentina.

• Europe & Mediterranean: Turkey, Egypt, Belarus, Ukraine, Azerbaijan.

Product Application: Rapid emergency repair for natural disasters, routine maintenance bypass, conventional substation retrofits, heavy infrastructure project support, and temporary commercial power supply.

II. 220 kV Mobile Substation Technical Specifications and Engineering Parameters

The HVMM series is fully customizable to meet diverse international grid standards, supporting a primary incoming voltage of 220 kV, multi-tier output secondary voltages, and total power capacities ranging from 10 MVA to 63 MVA. Every chassis structure undergoes intensive finite element analysis (FEA) to confirm mechanical stress tolerance under full load during rough terrain transportation.

Table: Technical Parameters of 33 kV - 110 kV / 220 kV Mobile Substations

III. Core Procurement Advantages of the 220 kV Mobile Substation

• 15+ Years of Proven Industry Expertise: Comprehensive independent R&D, manufacturing, and global sales, delivering up to 30 turnkey mobile units per year for high voltage grids under 132 kV / 220 kV, and 120 units under 35 kV.

• Advanced Mechanical Integration: Tailored axle weight balancing protects fragile internal parts like main transformer windings and switchgear alignments from vibration failures during hauling.

• Resilient Climate Defenses: Enclosures and structures are systematically treated with an IP54 protection level to handle extreme industrial conditions, including coastal salt spray, intense sandstorms, tropical heat, and high-humidity environments.

IV. Global Substation Project Cases and Partnerships

Hengfengyou Electric is committed to scaling as a world-class electrical manufacturer. Our decades of engineering experience and field data translate to direct cost savings and operational security for power distribution firms across 50+ countries. We prioritize building reliable, long-term technical and commercial partnerships with global utility stakeholders.

V. Frequently Asked Questions (FAQ) for 220 kV Mobile Substations

Q1: What is a 220 kV vehicle-mounted mobile substation?

It is an integrated and rapidly deployable bulk-power mobile substation installed on heavy-duty multi-axle trailers or modular container platforms. It contains 220 kV transformers, compact GIS/HGIS switchgear, digital protection control systems, and auxiliary networks, suitable for temporary primary grid injection, bulk-power utility bypass, or fast emergency repairs.

Q2: What are the differences between 220 kV vehicle-mounted substations and 110 kV vehicle-mounted substations?

Q3: What are the main application scenarios of 220 kV mobile substations?

• Power Grid Emergency: Rapid replacement and substation bypass in case of critical 220 kV hub substation failures.

• Renewable Energy Grid Connection: Temporary boosting stations for large scale wind farms and centralized photovoltaic bases.

• Urban Infrastructure Expansion: Transitional power supply during primary city grid overhauls, renovations, and deep upgrades.

• Major International Event Security: Dedicated backup power provisioning for high-profile global events such as the Olympic Games or World Expos.

Q4: What are the conditions required for transportation and installation of 220 kV mobile substations?

• Transportation Logistics: Specialized multi-axle hydraulic trailer vehicles are required. Most jurisdictions require over-limit (oversize/overweight) permitting before transit.

• Installation Ground Criteria: The designated site must be properly leveled and hardened to withstand a foundation bearing capacity of ≥ 10 tons/square meter (approx. 100 kPa to 150 kPa), with dedicated spaces for temporary cable routing and fire exits.

Q5: How long does a 220 kV mobile substation take from transportation to full operation?

• Regular Deployment Schedule: Takes 3 to 7 days, including physical positioning, landing leg leveling, cable termination, and on-site relay debugging.

• Emergency Rapid Mode: Can be energized and put into operation within 48 hours because all components are pre-assembled, wired, and factory-tested before shipping.

Q6: Does the 220 kV mobile substation support intelligent remote monitoring?

Yes, it comes standard with a centralized SCADA system and provides the following features:

• Real-time monitoring of main transformer oil temperature, load parameters, and insulation gas status.

• Automated remote start/stop operations and early fault warning alarms.

• Seamless protocol-compliant data docking with the centralized regional power grid dispatch center.

Q7: What is the 220 kV mobile substation level of protection? Can it adapt to extreme environments?

• Enclosure Protection Class: Features an IP54 standard (dustproof and waterproof) with customizable options up to IP65 for extreme industrial sectors.

• Extreme Climate Adaptability: Outfitted with intelligent HVAC climate control systems supporting reliable performance from -40 °C to +50 °C. Optional anti-vibration dampers and C5-M marine-grade anti-corrosion coatings make it highly suitable for coastal, desert, and high-altitude areas.

Q8: What 220 kV mobile substation technical requirements do grid connections need to meet?

Systems are fully engineered to comply with international transmission utility codes, including:

• Strict relay protection coordination and protection setting matching with the host network.

• Advanced power quality filtering keeping Total Harmonic Distortion (THD) under 3%.

• Comprehensive short-circuit capacity verification under maximum grid fault levels.

Q9: Is the operation and maintenance cost high? What are the contents of daily maintenance?

• Cost Structure: Eliminates nearly 100% of standard brick-and-mortar civil engineering overhead. The total operational maintenance cost is approximately 60% to 80% of a traditional fixed substation site.

• Routine Maintenance Focus: Periodic transformer dissolved insulation oil detection, SF6 gas sealing and pressure checks on the GIS switchgear, and routine cleaning of the automated cooling fan radiators.

Q10: What is the service life of a 220 kV mobile substation? What are the retirement standards?

Q11: Can it be used in conjunction with renewable energy sources such as energy storage and photovoltaics?

Yes, the advanced configuration fully supports modern smart grid integration:

• Configurable with flexible DC interfaces for direct renewable integration.

• Integrated Static Var Generators (SVG) for dynamic reactive power compensation.

• Black start capabilities when linked with an auxiliary battery energy storage system (BESS).

Q12: How should international buyers choose between leasing and purchasing?
