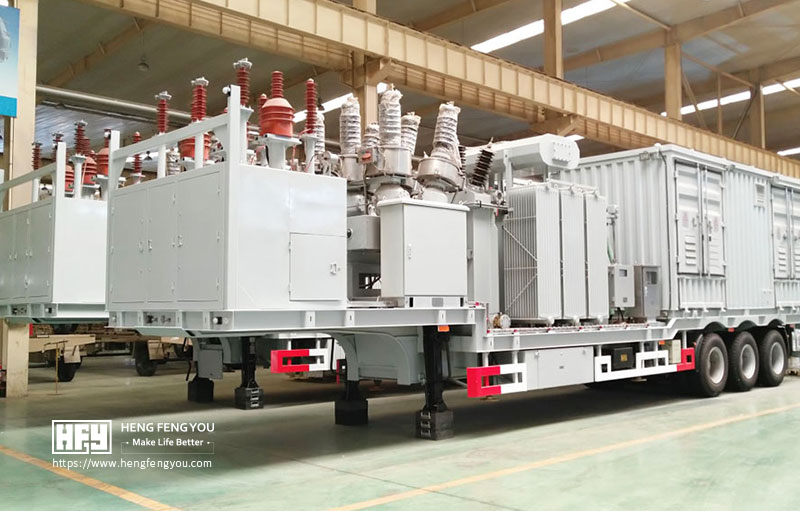

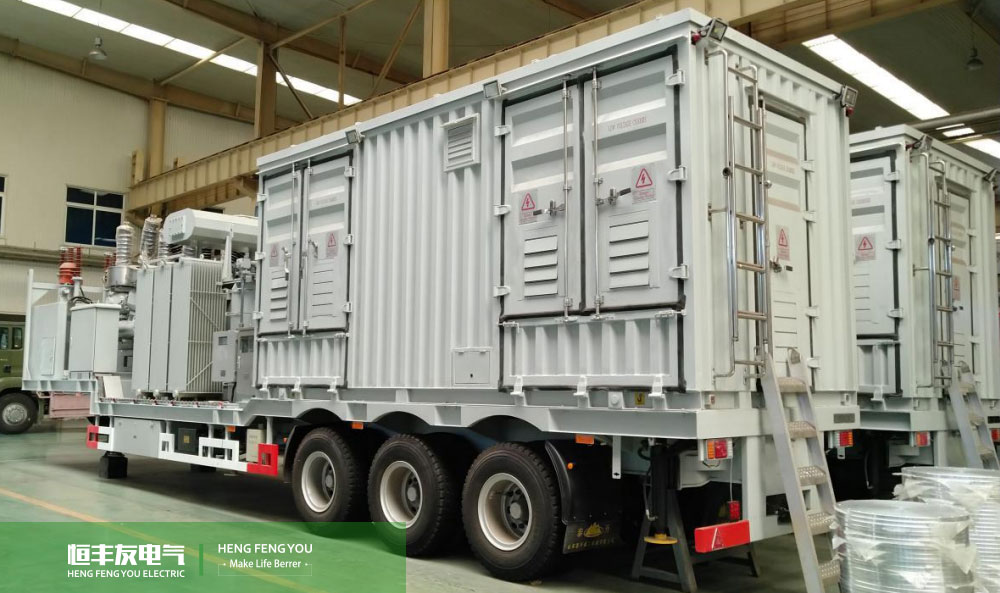

50 kV Vehicle-Mounted Mobile Power Substation (HVMM Series) Global Procurement Guide

II. 50 kV Mobile Substation Technical Specifications and Engineering Parameters

The HVMM series is fully customizable to meet diverse international grid standards, supporting a primary incoming voltage of 50 kV, multi-tier output secondary voltages, and total power capacities ranging from 10 MVA to 63 MVA. Every chassis structure undergoes intensive finite element analysis (FEA) to confirm mechanical stress tolerance under full load during rough terrain transportation.

Table: Technical Parameters of 33 kV - 110 kV Mobile Substations

III. Core Procurement Advantages of the 50 kV Mobile Substation

• 15+ Years of Proven Industry Expertise: Comprehensive independent R&D, manufacturing, and global sales, delivering up to 30 turnkey mobile units per year for high voltage grids under 132 kV, and 120 units under 35 kV.

• Advanced Mechanical Integration: Tailored axle weight balancing protects fragile internal parts like main transformer windings and switchgear alignments from vibration failures during hauling.

• Resilient Climate Defenses: Enclosures and structures are systematically treated to handle extreme industrial conditions, including coastal salt spray, intense sandstorms, tropical heat, and high-humidity environments.

IV. Global Substation Project Cases and Partnerships

Hengfengyou Electric is committed to scaling as a world-class electrical manufacturer. Our decades of engineering experience and field data translate to direct cost savings and operational security for power distribution firms across 50+ countries. We prioritize building reliable, long-term technical and commercial partnerships with global utility stakeholders.

V. Frequently Asked Questions (FAQ) for 50 kV Mobile Substations

Q1: What core high-voltage components are included in a 50 kV vehicle-mounted mobile substation?

• High-Voltage Stage: Compact 50 kV GIS or HGIS modules designed to reduce total equipment width while maximizing dielectrical reliability.

• Medium/Low Voltage Stage: Heavy-duty metal-clad switchgear integrated with vacuum circuit breakers (VCBs).

• Core Transformer: Low-loss distribution or power transformer fitted with high-efficiency shock absorbing mounts.

• Intelligent Support Systems: Programmable digital protection relay cabinets, automated fire extinguishing loops, and precision temperature management HVAC systems.

• Heavy Trailer Chassis: Configurable multi-axle trailers or standard shipping-grade modular containers matching international road weight codes.

Q2: What are the primary global deployment scenarios for a 50 kV mobile substation?

• Urban Grid Rehabilitation: Temporary load transfers during deep substation maintenance or upgrade overhauls to stop municipal blackouts.

• Industrial Infrastructure: Immediate power provisioning for petrochemical projects, metallurgy, and remote mining sites before fixed grid lines arrive.

• Emergency Relief and Logistics: Fast grid restoration within 48 to 72 hours following destructive typhoons, floods, or earthquakes.

• Developing Grid EPC Markets: Fast-tracking electricity delivery for remote townships and development zones under international infrastructure funds.

Q3: What makes a 50 kV mobile substation more advantageous than a traditional fixed substation?

Q4: What logistical setup and location parameters are required to transport and place a 50 kV mobile substation?

• Road and Bridge Logistics: Hauled using heavy multi-axle hydraulic trailer configurations. Weight and height clearances are engineered to comply with standard highway bridge limits.

• Ocean Freight Compliance: Equipment layouts match standard international shipping tie-down and safety rules under ISO transport criteria.

• Site civil conditions: The targeted location ground must feature a fully compacted bearing capacity of ≥ 150 kPa and an alignment slope gradient under 0.5 degrees.

Q5: How many days are needed to bring a 50 kV mobile substation to full operation on-site?

• Standard Deployment Plan: Takes about 3 to 7 days, covering trailer placement, landing leg leveling, cable joint terminations, and safety relay verification.

• Critical Emergency Mode: Can be powered up within 48 hours. Because all primary busbars and secondary protection circuits are fully integrated and tested at the Hengfengyou factory, field engineers only need to complete external grounding and cable connections.

Q6: Which intelligent monitoring systems are standard on Hengfengyou 50 kV mobile substations?

• Dissolved Gas Monitoring: Real-time DGA oil chromatography testing to identify internal transformer faults early.

• Smart Heat Defenses: Real-time winding hot-spot fiber-optic sensing with a precision margin of ±1°C to safely manage short-term overloading.

• Protocol Compatibility: Complete support for the standard IEC 61850 protocol, enabling instant remote links to centralized utility SCADA network systems.
