Oil-immersed Transformer

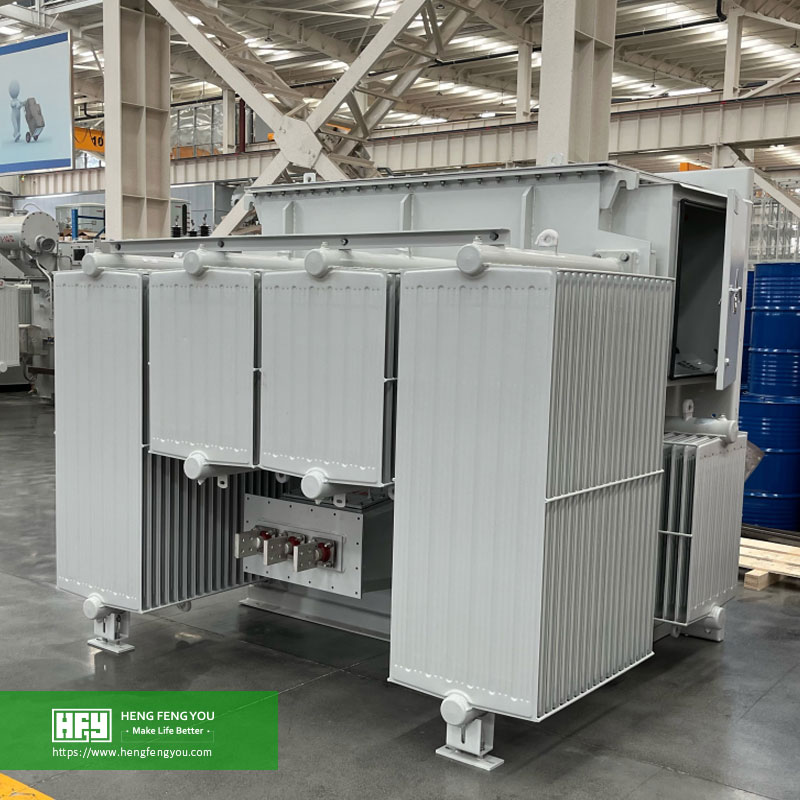

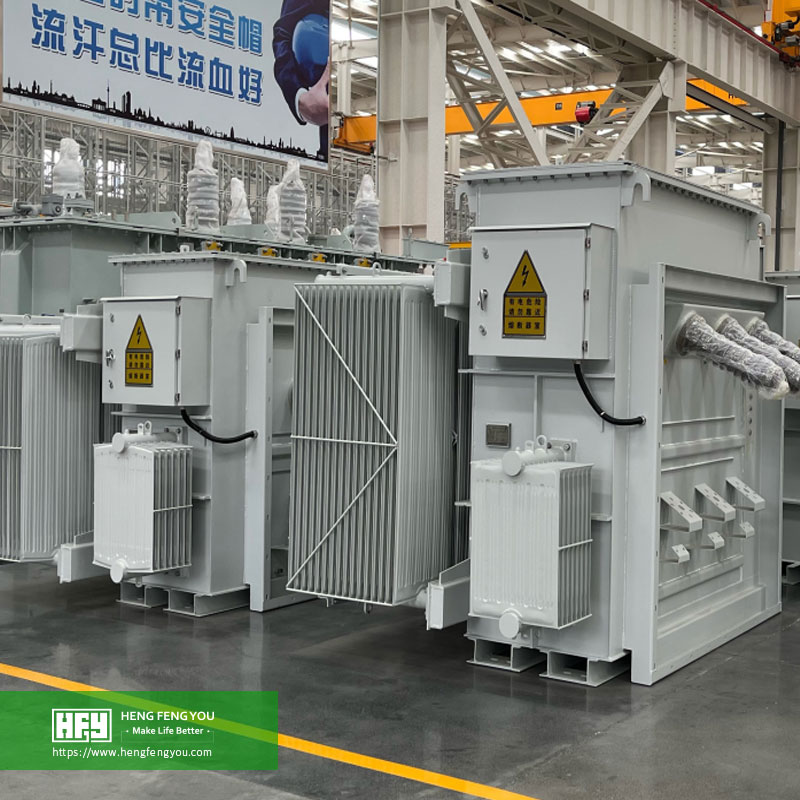

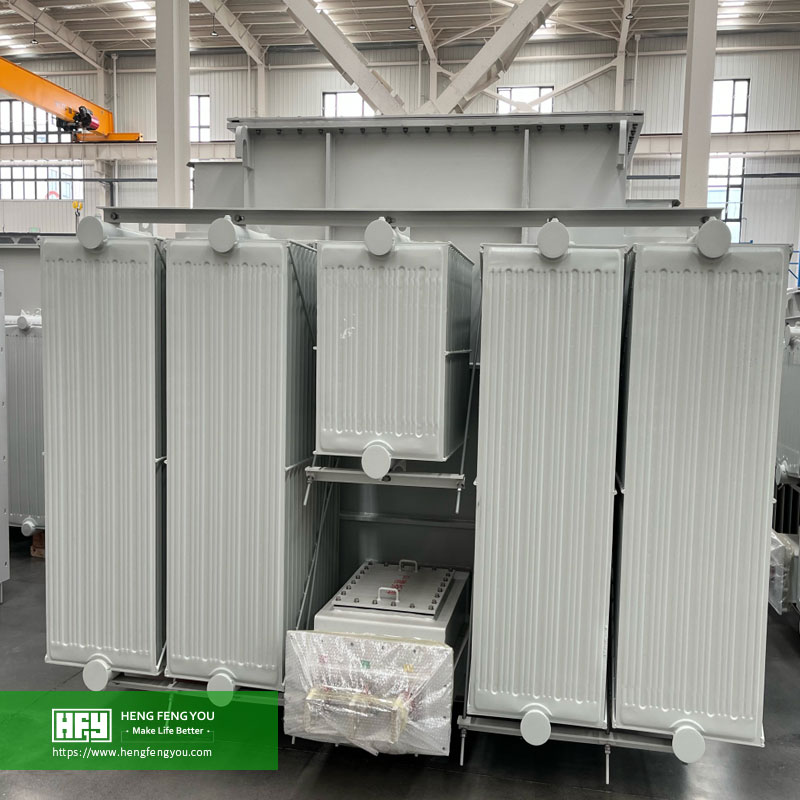

Solar double split step-up transformer

Brand: HENGFENGYOU
Series: SF11
USES: Solar
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、KEMA

Get Quotes

Solar double split step-up transformer Introduction

Solar double split transformer is a new type of power generation system that adopts double split transformer technology, which can effectively improve the efficiency and stability of photovoltaic power generation systems.

This technology can effectively solve the problems of voltage fluctuations and energy loss in solar power generation systems, improve the efficiency and stability of the system, and the advantage of solar double split transformers is that they can adapt to different lighting conditions and load changes, ensuring the stability and reliability of the system. At the same time, it can also reduce the system's logging and floor area, improving the economy and environmental friendliness of power generation.

Our advantages

- Authoritative certification: ISO9001、CE、CCC、COC、UL、CSA, etc
- Perfect SQA quality management system and patented technology to ensure high quality products
- Efficient production equipment and low raw material prices to ensure the price advantage
- Sufficient inventory, short delivery time and fast delivery worldwide
- Perfect after-sales service system, allowing customers to buy worry-free
- Provide OEM/ODM services. Welcome clients to visit our factory.

Condition

I、Air temperature: -40 ° C~+55 ° C

II、Earthquake intensity: magnitude 8

III、Outdoor wind speed: ≤ 35m/s

IV、Pollution level: Class II, III, IV

V、Altitude: ≤ 4500m

VI、Relative humidity: daily average< 95%

Solar double split step-up transformer FAQ

1. What is a Solar Double Split Step-Up Transformer?
A Solar Double Split Step-Up Transformeris a specialized transformer designed for solar power systems, featuring dual split windings to efficiently step up low-voltage DC (or AC) from solar panels to a higher voltage suitable for grid integration or storage systems.

2. How does a Double Split Step-Up Transformer work in a solar system?
It takes the input voltage from solar panels (or an inverter), splits it into two separate windings, and steps it up to a higher voltage while maintaining electrical isolation, improving efficiency and safety.

3. What are the key benefits of using this transformer in solar applications?
Higher efficiency with reduced energy loss
Improved voltage regulation for stable power output
Enhanced safety with electrical isolation
Better heat dissipation due to split winding design

4. What voltage ranges do these transformers typically support?
They commonly step up voltages from 24V/48V (DC or AC) to 120V/240V/480V (or higher) depending on the solar system requirements.

5. Are these transformers compatible with both on-grid and off-grid solar systems?
Yes, they can be used in on-grid (grid-tied) and off-grid (standalone) solar systems, depending on the design and configuration.

6. How do I choose the right transformer for my solar setup?
Consider:
Input/Output voltage requirements
Power rating (kVA/kW)
Single-phase or three-phase compatibility
Efficiency and cooling method (air-cooled/oil-cooled)

7. What maintenance is required for these transformers?
Regular inspection for loose connections
Monitoring temperature to prevent overheating
Keeping the unit clean and dust-free
Periodic testing of insulation resistance

8. Can these transformers handle fluctuations in solar power input?
Yes, they are designed to manage variable input voltages from solar panels, but a stable MPPT (Maximum Power Point Tracking) system is recommended for optimal performance.

9. What safety features are included?
Overload protection
Short-circuit protection
Isolation between windings
Thermal cut-off in case of overheating
