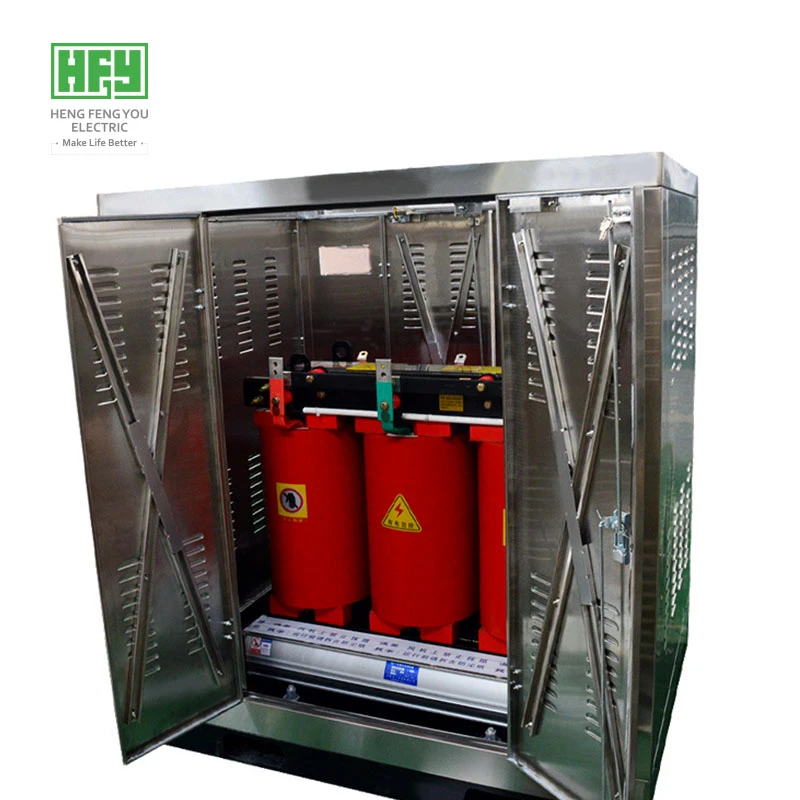

KSG Mining Dry-type Transformer (50 kVA - 2000 kVA)

I. Product Overview of KSG Mining Dry-type Transformer

Against the backdrop of surging global mineral exploitation and rigorous subterranean safety mandates, the KSG mining dry-type transformer stands as the premier zero-oil power distribution solution. Engineered explicitly by HENGFENGYOU ELECTRIC, this specialized series eliminates the catastrophic fire risks associated with traditional oil-filled equipment in enclosed spaces.

With an elite moisture-proof, flame-retardant, and self-extinguishing construction, our underground mine transformers have delivered high-reliability operational verification across more than 50 countries and regions. They are widely deployed in major mining hubs across Zambia, South Africa, Democratic Republic of Congo (DRC), Nigeria, Chile, Brazil, Peru, Colombia, Kazakhstan, Russia, Uzbekistan, Australia, Indonesia, Vietnam, Turkey, and Canada.

II. Core Product Features of HENGFENGYOU Mining Transformers

III Strategic Global Partnering & Factory Advantages

• Authoritative International Certification: Fully certified under ISO9001, CE, CB, CCC, and KEMA standards, facilitating rapid local grid approvals and customs clearance.

• Rigorous Quality Management: Integrated Supplier Quality Assurance (SQA) and factory acceptance tests (FAT), including full-load temperature rise and partial discharge testing (controlled strictly at 10 pC or less).

• Cost-Efficient Engineering: Advanced manufacturing lines and localized raw material sourcing in China enable us to deliver a 15% to 20% price advantage over European alternatives.

• Rapid Delivery Timelines: Optimized logistical supply chains support dispatch within 30 to 45 days, combined with standard 5-year extended warranty protection.

• OEM/ODM Customization: Complete engineering department capability to adapt mechanical dimensions, terminal boxes, and protective relays for existing underground substation footprints.

Q1: Underground mine layouts are extremely tight. Can the dimensions and terminal positions of the KSG transformer be customized?

A: Yes, absolutely. Space constraints in mine shafts and tunnels are major bottlenecks for equipment replacements. HENGFENGYOU ELECTRIC specializes in custom engineering. We can modify the height, width, and weight distribution of the KSG transformer to fit specific transport cages and underground chambers. Additionally, we provide custom top-entry, side-entry, or bottom-entry high/low voltage cable terminal boxes to ensure immediate compatibility with your existing cable runs without on-site cutting or splicing.

Q2: Mine power grids experience frequent short-circuits from heavy machinery startups. How does this transformer resist mechanical stress?

A: Sudden startups of high-power mining equipment like scrapers, drills, and continuous miners create severe electro-dynamic forces. Our KSG series utilizes high-strength foil-wound or continuous disc-wound structures reinforced with fiberglass pre-impregnated materials. The core is clamped utilizing heavy-duty structural steel plates with anti-loosening hardware. This rugged design guarantees an exceptional short-circuit ride-through capability that satisfies rigid IEC 60076-5 mechanical endurance criteria.

Q3: Subterranean environments are heavily contaminated with conductive dust and coal particles. How does the insulation remain intact?

A: Conductive dust accumulation is a primary cause of flashovers and insulation tracking failures in dry-type transformers. For environments with high dust concentrations, we provide specialized IP23 or IP54 protective enclosures. The windings are treated with multiple layers of smooth, hydrophobic protective sealants that prevent dust adhesion. For extreme hazardous zones, we can supply completely sealed non-ventilated enclosures or hermetically integrated flame-proof mining substations.

Q4: What integrated protective accessories are included to protect against overtemperature and overcurrent faults?

A: To ensure continuous unmanned operation safety, every KSG transformer is equipped with a high-precision PT100 platinum thermal resistance sensor embedded directly into the low-voltage windings. This pairs with an external digital temperature control monitor that provides automated two-stage responses: a thermal alarm signal followed by an automatic trip command if temperatures exceed safe limits. We also offer options to integrate high-voltage drop-out fuses, surge arresters (rated for lightning and switching protection), and space heaters to prevent condensation during down periods.

Q5: Is the KSG dry-type transformer compatible with harsh international grid standards like ZESCO (Zambia) or SEC (Saudi Arabia)?

A: Yes. Our engineering team routinely designs equipment according to local utility mandates worldwide. Whether your project requires compliance with standard IEC 60076 codes, South African Bureau of Standards (SABS) requirements, or strict energy-efficiency thresholds (such as China's GB 20052-2024 Tier 1/Tier 2 or European Ecodesign directives), we modify the core and winding configurations to hit exact loss and efficiency metrics.
