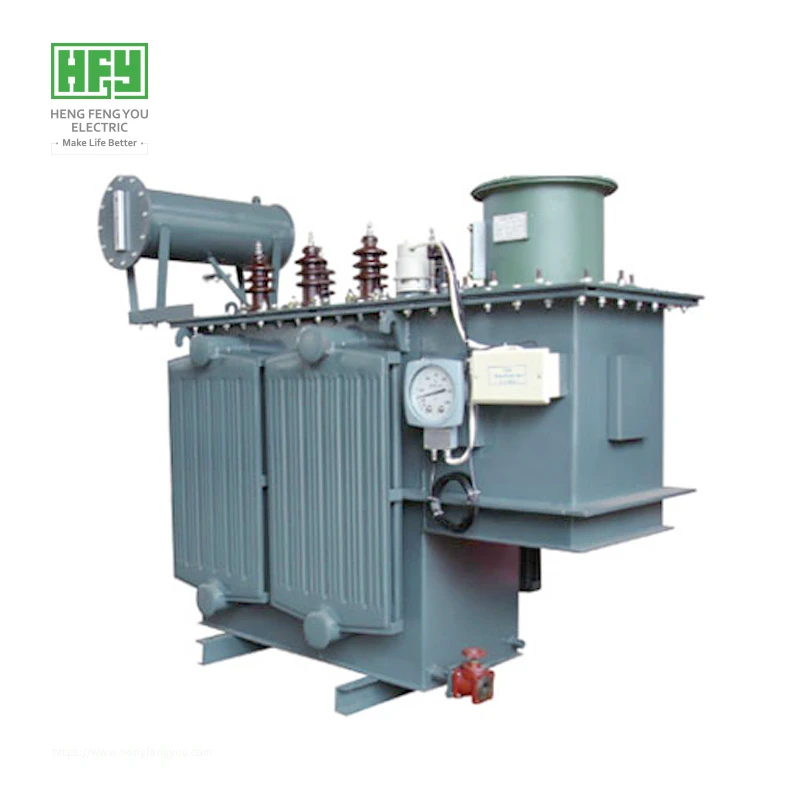

Steelmaking Electric Arc Furnace Transformer (EAF Transformer)

I. Product Overview of Steelmaking Electric Arc Furnace Transformer

To capture localized search traffic from global metallurgical hubs, our EAF transformers are engineered to comply with different regional grid codes. They are widely exported to major steel-producing nations, including India, Turkey, Vietnam, Indonesia, South Korea, Brazil, Mexico, Chile, Egypt, Saudi Arabia, South Africa, Nigeria, Kazakhstan, Russia, and Germany.

II. Core Product Features of HENGFENGYOU EAF Transformers

III.Strategic Global Partnering & Factory Advantages

• Authoritative International Certification: Fully compliant with ISO9001, CE, CCC, UL, and CSA, ensuring smooth installation and regulatory compliance across international steel mills.

• Robust Quality Assurance: Our strict SQA system mandates comprehensive factory acceptance testing, including advanced Dissolved Gas Analysis (DGA) and impulse withstand testing.

• Cost-Efficient Supply Chain: Localized raw material sourcing and highly optimized production lines in China provide a 15% to 25% budget advantage compared to traditional Western manufacturers.

• Rapid Global Delivery: Accelerated manufacturing and logistical support minimize down-time for crucial plant upgrades or greenfield steel mill construction.

• OEM/ODM Engineering: Full capability to redesign physical terminal layouts, busbar orientations, and cooling positions to fit exact existing vault dimensions during retrofits.

Q1: EAF operations generate massive harmonic distortion and voltage flicker. How do your transformers protect the upstream power grid?

The rapid striking and breaking of the electric arc inject massive quantities of 3rd, 5th, and 7th harmonics back into the high-voltage grid. To prevent voltage flicker and penalty fees from utility companies, HENGFENGYOU designs custom phase-shifting winding structures (such as extended delta or split-phase layouts) that naturally cancel out specific harmonic orders. When paired with external Static Var Compensators (SVC) or Statcom systems via our auxiliary tertiary windings, our transformers help stabilize power factors and safeguard regional grid integrity.

Q2: High-current busbars on the low-voltage side generate intense magnetic fields and overheating. How do you resolve this?

When secondary currents reach tens of thousands of amperes, the surrounding steel structural parts can experience severe eddy-current heating. We resolve this by constructing the secondary outlets using non-magnetic stainless steel plate materials and copper-clad shielding configurations. Low-voltage terminals are designed as water-cooled copper busbars, ensuring the heavy-current transition to the furnace delta closure remains well within safe thermal boundaries.

Q3: Smelting plants are highly contaminated with conductive dust and corrosive gases. What is your insulation protection strategy?

The air inside steel plants is filled with conductive graphite dust, iron oxide particles, and corrosive gases that can destroy standard external bushings. HENGFENGYOU addresses this by utilizing completely enclosed cable boxes or specialized high-creepage, anti-pollution porcelain and resin bushings. For maximum security, the main tank features a sand-blasted, multi-layer epoxy coating that resists high-temperature corrosion and airborne metallic dust accumulation.

Q4: How does the choice between an internal series reactor and an external reactor affect overall melting performance?

An internal series reactor provides the inductive reactance necessary to stabilize the arc during the initial scrap melting phase when the arc path is highly volatile. In our design without an excitation tap changer, the reactor can be automatically switched into or out of the circuit via the tap changer. Choosing an integrated internal reactor saves substantial substation floor space and simplifies heavy busbar layouts, whereas an external reactor offers easier independent maintenance but requires a larger equipment footprint.

Q5: What automated diagnostic systems are integrated to prevent catastrophic winding insulation failures?

Because EAF transformers operate under high thermal and mechanical stress cycles, unexpected downtime can cost steel mills thousands of dollars per hour. Our transformers come equipped with intelligent online monitoring packages. This includes continuous winding and oil PT100 temperature trackers, automated fiber-optic hotspot sensing directly inside the coils, oil level indicators with digital alarm contacts, and online DGA (Dissolved Gas Analysis) monitors to detect early signs of internal arcing or paper degradation before a critical failure occurs.

V. Get an Instant Factory Quotation Today

Do you need to replace an aging arc furnace transformer, scale up your steel mill's annual tonnage capacity, or submit a technical bid for a global steel plant EPC project? Contact our engineering team today to receive certified layout drawings, electrical parameter sheets, and direct factory wholesale pricing.
