Compact Substations

Compact Substation Overview & Operational Principle

The Compact Substation (also known as a Prefabricated Package Substation or Mini Substation) from HENGFENGYOU ELECTRIC is a fully integrated, factory-assembled power distribution system engineered to replace space-consuming, high-cost traditional indoor brick-and-mortar substations. Operating at primary AC voltages up to 35kV (including standard 11kV, 15kV, 22kV, and 33kV networks) with maximum working currents up to 5000A, it safely converts medium-voltage electricity into low-voltage power (400V/230V) for localized distribution.

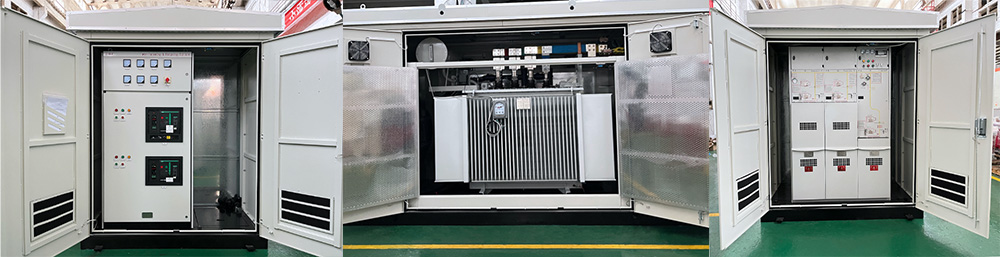

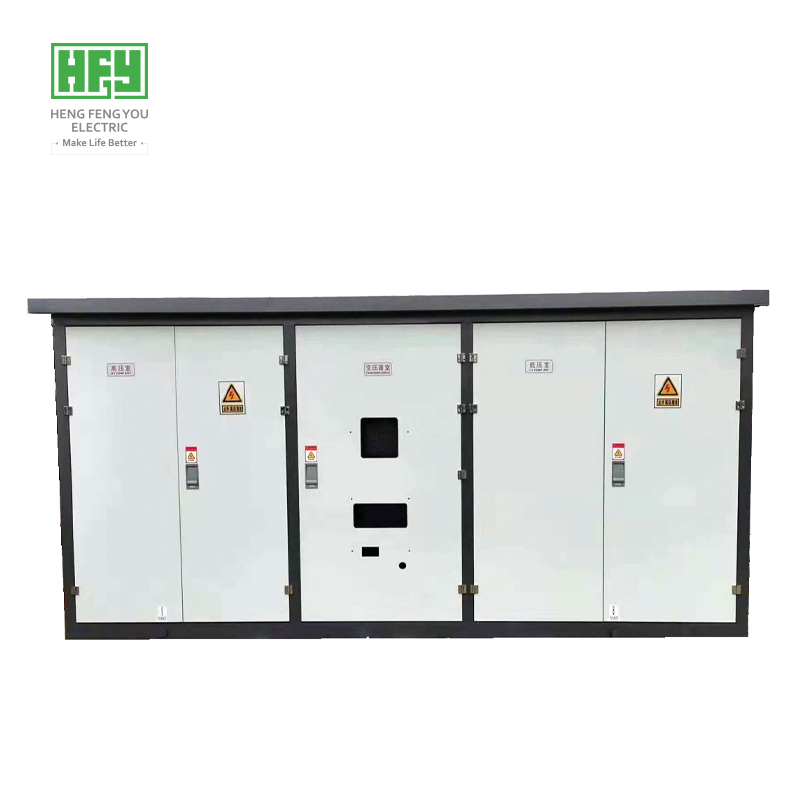

The unit is partitioned into three isolated, functional compartments: a High Voltage (HV) room, a Transformer room, and a Low Voltage (LV) room. This internal segregation guarantees maximum operational safety, efficient thermal ventilation, and effortless routine inspection. Designed for quick plug-and-play installation, it is widely installed across industrial parks, high-rise commercial centers, residential estates, public docks, and urban infrastructure worldwide. Full OEM/ODM engineering customization is supported.

Implementation Standards: IEC 62271-200, IEC 60076, IEC 61439, GB/T 17467, SABS, SASO, CE, ISO9001 approved.

Compact Substation Technical Specifications & Parameters

Core Advantages & Features of Prefabricated Compact Substations

1. Three-Compartment Isolation & Enhanced Operational Safety

• High Voltage, Transformer, and Low Voltage rooms are completely partitioned by fire-retardant steel barriers. Interlocks prevent improper manual operation and isolate electrical arc hazards.

• Built with high-conductivity tinned copper busbars configured in three-phase four-wire or three-phase five-wire systems for superior short-circuit withstand capability and heat dissipation.

2. Flexible Shell Materials & Heavy-Duty Environmental Protection

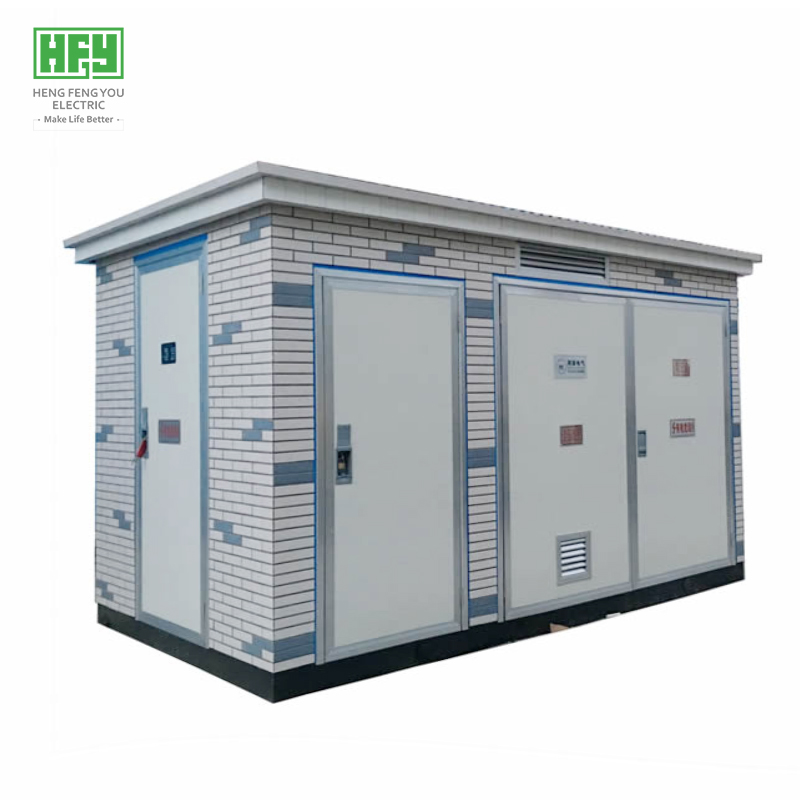

• Housing choices include anti-corrosive powder-coated steel plates, stainless steel, aluminum alloy, or thermally insulated GRC cement panels.

• Features passive thermal insulation, active forced ventilation fans, dust-proof labyrinth louvers, and anti-condensation heating elements to handle high humidity and severe dust.

3. Factory Pre-Assembled & Low Civil Engineering Cost

• Completely assembled, wired, and routine-tested prior to dispatch. Reduces total site installation footprint by over 70% and cuts on-site construction cycles to a minimum.

• Integrates automatic power factor correction (APFC), power metering, and remote SCADA monitoring for low-maintenance, unmanned substation operation.

Ordering Instructions & Procurement Guidelines

To obtain a precise engineering proposal and fast direct factory quote within 24 hours, please supply:

• Primary single-line diagram (SLD) and secondary control circuit schematics.

• System voltage class (11kV to 35kV) and secondary distribution requirements (400V/230V).

• Required transformer capacity (kVA) and transformer cooling type (Oil-immersed or Dry-type).

• Preferred enclosure material (Stainless steel, Composite, GRC cement) and RAL paint color code.

• Site environmental conditions (altitude if over 1000m, extreme ambient temperatures, humidity).

Compact Substation Procurement & Engineering FAQ

Q1: What is the standard delivery schedule and manufacturing lead time for compact substations?

A: Standard modular configurations and stock transformer cores can be dispatched within 7 to 30 days. For fully customized compact substations requiring specific utility-approved switchgears or complex single-line layouts, the total manufacturing and testing lead time is 75 to 90 days with fast worldwide delivery.

Q2: What warranty coverage and technical support do you provide?

A: All HENGFENGYOU ELECTRIC compact substations include a standard 1-year (12 months) comprehensive factory warranty from the date of shipment. Extended warranties up to 5 years are available for major municipal or commercial EPC contracts, supported by lifetime spare parts availability and 24/7 technical support.

Q3: Are your compact substations certified for international power grid tenders?

A: Yes. Our production strictly complies with ISO9001 and international standards including IEC 62271-200, IEC 60076, and IEC 61439. Our products hold CE, KEMA, SABS, SASO, and CCC certifications, ensuring seamless utility grid connection across Europe, Asia, Africa, South America, and the Middle East.

Q4: How does a compact substation save on overall civil engineering costs?

A: Traditional brick-and-mortar indoor substations require extensive land acquisition, architectural building permits, and prolonged civil construction. A prefabricated compact substation arrives on-site completely pre-assembled and pre-tested. It requires only a flat concrete pad, reducing civil construction costs and deployment time by up to 70%.

Q5: What enclosure material should I choose for coastal or harsh weather environments?

A: For coastal regions subject to high salt spray or tropical humidity, we recommend 304/316 stainless steel enclosures or high-strength GRC cement composite panels rated IP65/IP67. For standard urban or industrial parks, heavy-duty hot-dip galvanized steel with electrostatic powder coating provides a cost-effective 30-year anti-corrosion service life.

Q6: Can the low-voltage side incorporate automatic power factor correction and smart metering?

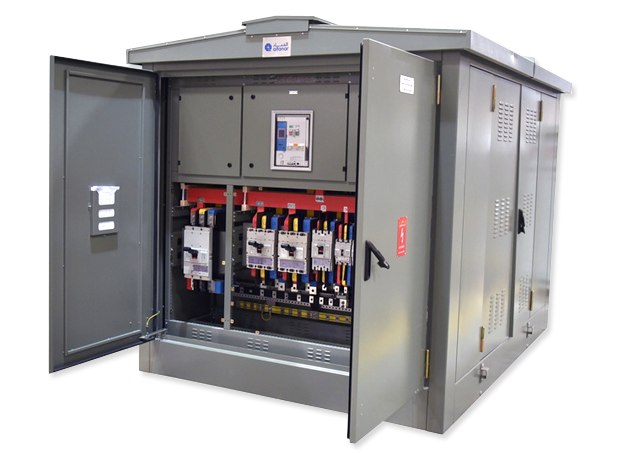

A: Yes. The low-voltage compartment can be fully customized with automatic power factor correction (APFC) capacitor banks, multi-circuit branch breakers, smart energy meters with RS485/Modbus communication protocols, and automatic main-bus transfer switches (ATS).
