Pole Mounted Substation & Transformer

Pole Mounted Substation & Transformer Overview & Working Principle

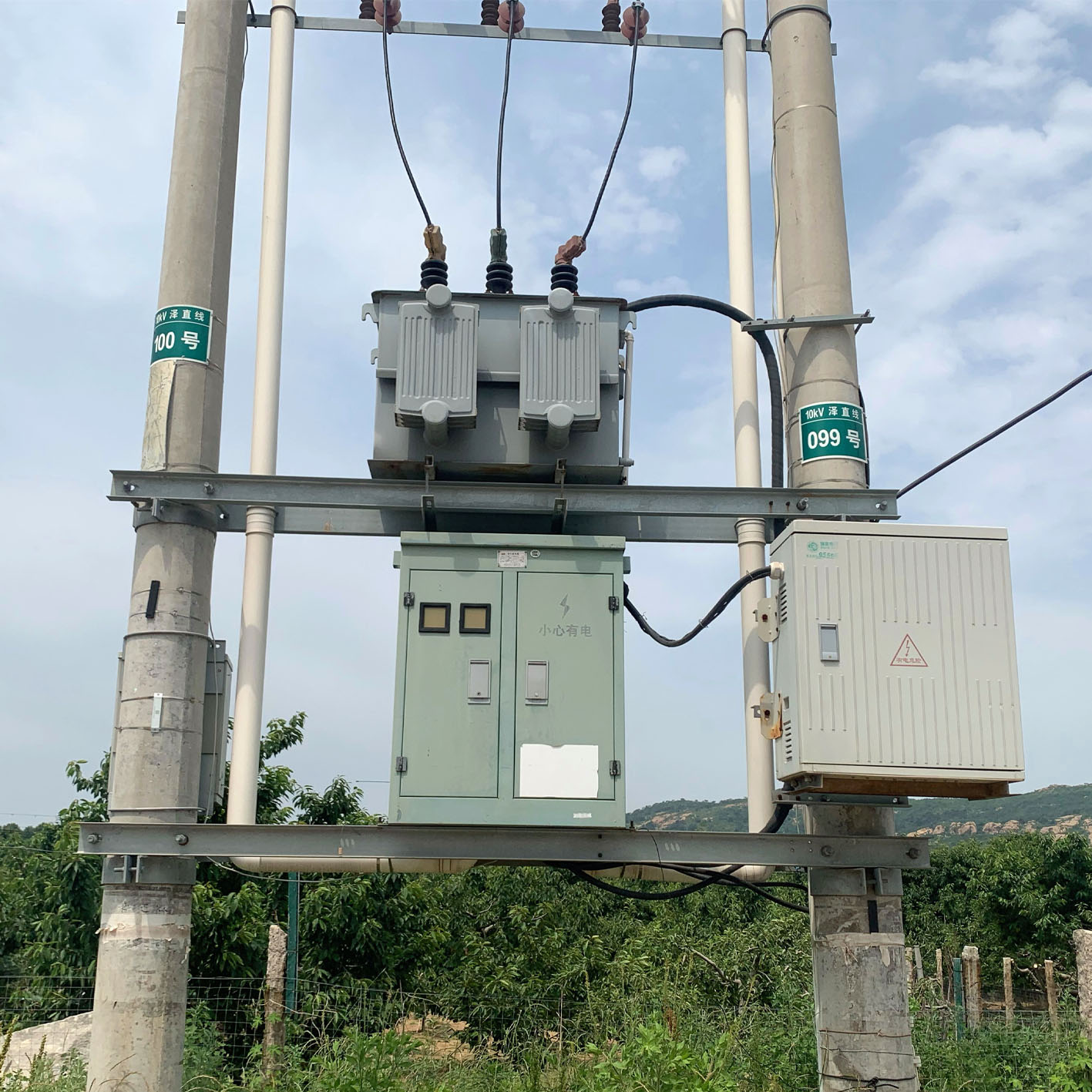

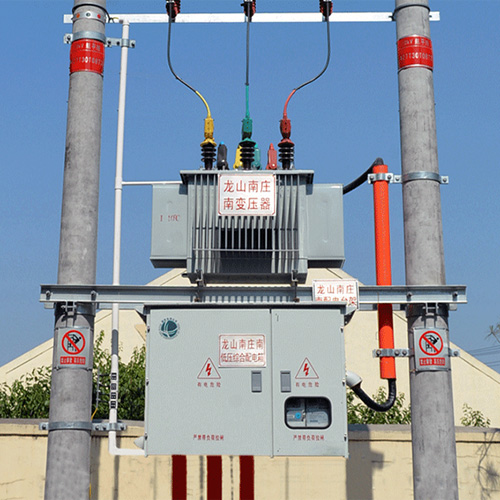

The Pole Mounted Substation & Transformer from HENGFENGYOU ELECTRIC is an all-in-one outdoor overhead power distribution unit engineered specifically for rural power grids, urban overhead lines, and remote residential or industrial electrification. By directly mounting the step-down power transformer, outdoor AC vacuum circuit breaker (VCB), drop-out fuse cutouts, zinc oxide lightning arresters, and a low-voltage integrated distribution box (JP cabinet) onto single or double utility poles, it delivers a highly space-efficient power distribution solution.

The system connects directly to 10kV, 11kV, 15kV, 33kV, or 35kV primary overhead lines and safely steps down the voltage to low-voltage AC (0.23kV, 0.4kV, or 0.415kV) for local end-users. Proven across more than 50 countries in Asia, Africa, the Middle East, and South America, this system exceeds standard IEC and GB performance benchmarks, offering seamless deployment with a minimum footprint and low civil engineering cost.

Implementation Standards: IEC 60076 series, IEC 60836, IEC 60944, GB/T 6451, GB 1094, ANSI/IEEE, KEMA, CB, CCC, and ISO9001 approved.

Pole Mounted Substation & Transformer Technical Specifications

Core Advantages & Manufacturing Excellence of Pole-Mounted Transformers

1. Patented Energy-Saving Technology & Ultra-Low Losses

• Utilizes HENGFENGYOU ELECTRIC’s patented Ultra-Low Loss Energy-Saving Technology, saving up to 5% on raw materials and reducing transformer losses by 10%–20% compared to standard market alternatives.

• Low-voltage copper foil winding combined with high-voltage copper strip winding delivers exceptional resistance against short-circuit radial stress and atmospheric lightning surges.

2. Heavy-Duty Weather Resistance & Robotic Precision Welding

• Constructed using Japanese Mitsubishi CNC laser cutting and ABB double-layer robotic welding with laser leak testing, achieving a 99.99998% passing rate.

• Protected by electrostatic spray treatment ensuring zero paint peeling for over 30 years outdoors (>100h salt spray corrosion resistance, coating hardness ≥ 0.4).

3. Fully Sealed Maintenance-Free Design & Robust Mounting

• Completely sealed tank structure prevents transformer oil oxidation, guaranteeing a normal operating service life exceeding 30 years without internal oil maintenance.

• Mounting brackets feature heavy-duty Q235 hot-dip galvanized steel for rapid, corrosion-free installation on wood, concrete, or steel utility poles.

Operating & Service Environment Conditions

• Altitude: Less than 1000m above sea level (Higher altitude designs customizable upon request).

• Ambient Temperature Range: -25°C to +40°C; Maximum relative humidity: ≤ 90%at +25°C.

• Vertical Incline:≤5° ; Outdoor wind speed endurance up to 35m/s without severe seismic vibration.

• Environmental Suitability: Free of explosive, corrosive, or conductive dust that compromises transformer coil insulation.

Ordering Instructions & Procurement Guidelines

When placing an order or requesting a formal engineering quote, please provide:

• Required transformer voltage ratios (e.g., 11kV to 0.4kV), rated capacity ($\text{kVA}$), vector group, and loss requirements.

• Site operating conditions (altitude, ambient temperature, humidity, coastal salt-spray risk).

• Customized accessories (tap changer steps, oil conservator requirement, color RAL code, JP box configuration).

• MOQ: 1 set. Standard units are dispatched within 7 days; mass utility contracts deliver in 30 to 90 days globally.

Pole Mounted Substation & Transformer Procurement FAQ

Q1: What is the standard lead time and delivery schedule for pole-mounted transformers?

A: Standard catalog models (11kV/33kV) and stocked modular components can be dispatched within 7 to 30 days. For bulk utility orders, custom voltage configurations, or complete turnkey pole-mounted substations, the typical manufacturing and testing delivery cycle is 75 to 90 days with worldwide fast shipping.

Q2: What warranty coverage and technical guarantees do you provide?

A: We offer a standard 1-year (12 months) comprehensive quality warranty from the date of shipment. For long-term government utility contracts or rural electrification programs, warranty coverage can be extended up to 5 years upon request, supported by lifetime spare parts supply and remote technical support.

Q3: Are HENGFENGYOU ELECTRIC pole-mounted substations certified for international power grid tenders?

A: Yes. All performance metrics exceed Chinese GB and international IEC 60076 standards. Our pole-mounted series holds official CB, KEMA, CCC, ANSI, and ISO9001 certifications, with proven operational reliability in over 50 countries across Asia, Africa, South America, and the Middle East.

Q4: How does your pole-mounted transformer handle lightning surges in overhead power lines?

A: Overhead distribution lines are highly exposed to lightning strike risks. Our units integrate high-voltage zinc oxide surge arresters directly at the primary bushings, paired with specialized copper-strip HV windings and high-grade insulation to withstand lightning impulse voltages up to 75kV.

Q5: What mounting options are available for installing the transformer and JP distribution box?

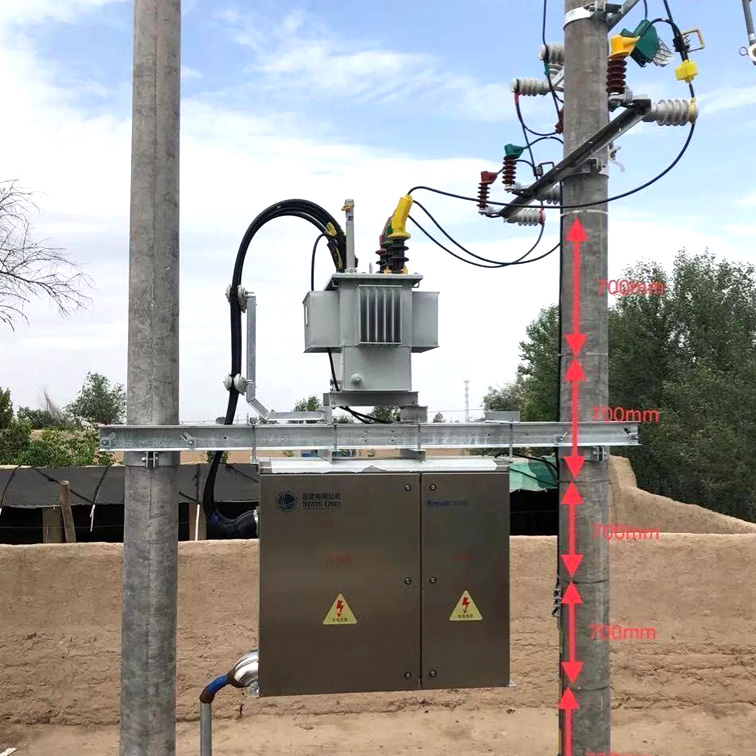

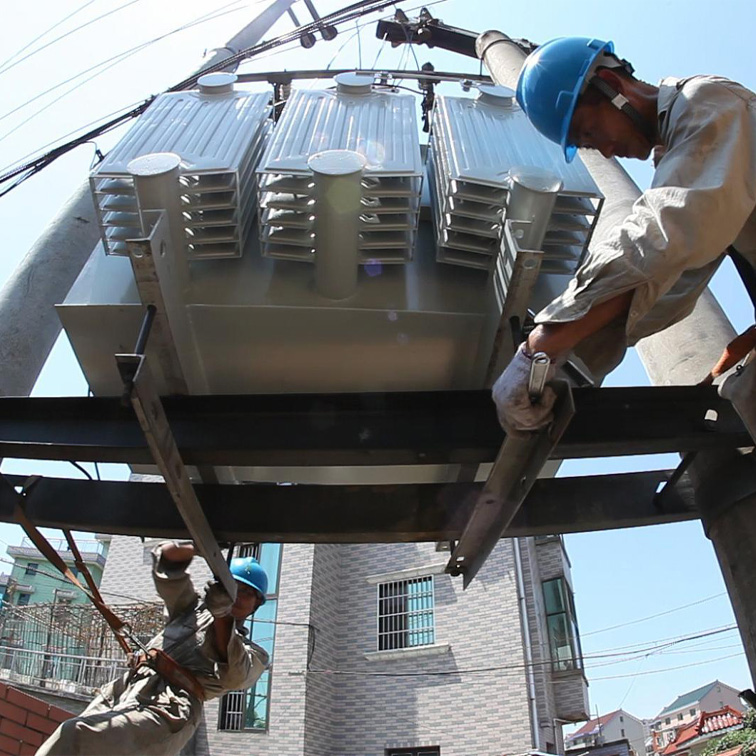

A: We supply heavy-duty hot-dip galvanized steel bracket kits designed for both Single Pole installation (typically for smaller transformers up to 100kVA) and Double Pole / H-Frame installation (for larger capacities up to 400kVA or 800kVA). The brackets accommodate standard concrete or steel utility poles.

Q6: Can we request customized aluminum windings or special voltage tap changers?

A: Yes. While high-conductivity oxygen-free copper is our standard material, we offer customized aluminum foil/wire windings to meet specific budget targets. We also offer 5-step or 7-step off-load/on-load tap changers to adapt to local overhead grid voltage fluctuations.
