Ⅰ. Colombia 1200kVA 34.5/0.4kV Wind Power Transformer Market and Project Requirements

The collection voltage, wind turbine output voltage, and transformer capacity of a wind power project in Colombia should be determined according to the wind turbine model, total installed capacity, collection line length, substation configuration, and the project owner's technical specifications.

For specific projects using a 34.5kV collection system and a 0.4kV wind turbine-side output, the 1200kVA 34.5/0.4kV wind power transformer can be used to step up the low-voltage electrical energy generated by the wind turbine before feeding it into the wind farm's medium-voltage collection network.

Northern Colombia, including the Caribbean coastal region and areas with favorable wind resources, offers suitable conditions for wind power development. However, actual project environments can vary significantly. Coastal wind farms may be continuously exposed to salt spray, high humidity, and strong solar radiation, while inland or mountainous projects may experience large day-night temperature variations, high humidity during the rainy season, dust during dry periods, and higher installation altitudes.

Therefore, a conventional distribution transformer should not simply be applied to every wind power project. The transformer needs to be designed according to the actual site conditions, including electrical performance, insulation, thermal dissipation, and corrosion protection.

For a 1200kVA wind power transformer, harmonics generated by the wind turbine converter, load fluctuations, lightning, and switching overvoltages should also be considered during the design process. The winding structure, additional losses, temperature-rise margin, insulation level, and overvoltage protection should be evaluated based on the actual data provided by the wind turbine manufacturer and the overall project system design.

Hengfengyou Electric can customize the 1200kVA 34.5/0.4kV wind power transformer according to the specific wind turbine parameters, collection system, voltage level, ambient temperature, altitude, and pollution conditions of a Colombian wind power project. Depending on project requirements, Hengfengyou can also provide technical documents, product nameplates, test reports, and related compliance documents in English or Spanish.

Ⅱ. Colombia 1200kVA 34.5/0.4kV Wind Power Transformer Key Technical Parameters

For a 1200kVA 34.5/0.4kV transformer used in a Colombian wind power project, the rated capacity, high- and low-voltage ratings, frequency, insulation level, impedance, tap range, cooling method, and accessories should first be determined according to the project technical specifications.

1. Typical Parameters of the Colombia 1200kVA Wind Power Transformer

The above parameters are provided for project selection reference. Final capacity, voltage ratio, impedance, insulation level, tap range, cooling method, and accessory configuration should be determined based on the wind turbine manufacturer's data and the project technical agreement.

For the 34.5kV high-voltage side, the transformer insulation level, bushings, tap changer, and overvoltage protection devices should be selected according to the local grid parameters and the project's insulation coordination requirements.

For the 0.4kV low-voltage side, detailed verification should be carried out based on the wind turbine converter output parameters, rated current, and system short-circuit level.

Ⅲ. Colombia 1200kVA Wind Power Transformer RETIE and Technical Standards

Electrical equipment and installation projects in Colombia are subject to the current RETIE (Reglamento Técnico de Instalaciones Eléctricas) and applicable national and international standards. According to official information from Colombia's Ministry of Mines and Energy, the current RETIE framework was updated through Resolution No. 40284 issued on June 23, 2026, and covers areas including products, electrical installations, and conformity assessment.

Therefore, for a 1200kVA wind power transformer intended for the Colombian market, it is important to consider not only IEC technical parameters but also applicable product conformity, import, and project installation requirements.

1. Colombia 1200kVA Wind Power Transformer RETIE Compliance

RETIE applies to relevant electrical installations, products, and personnel involved in electrical installations. Its product requirements establish safety and conformity requirements for electrical products within its scope.

For transformers and other products covered by RETIE, applicable conformity assessment mechanisms should be identified before the products are placed on the Colombian market. Official RETIE information also indicates that different conformity assessment routes may apply to specific products depending on their category and technical conditions.

For a 1200kVA wind power transformer project, it is recommended to confirm the following at an early stage:

• Whether the product falls within the current RETIE product scope;
• The applicable product conformity assessment method;
• Documents required from the manufacturer, importer, and project owner;
• Relevant transformer test reports and technical documentation;
• Conformity documents required during project installation and grid connection.

It is particularly important to distinguish between product conformity and conformity of the complete wind power project installation. Therefore, the equipment supplier should confirm the specific project requirements with the Colombian importer, EPC contractor, and project owner in advance.

2. Colombia 1200kVA Wind Power Transformer IEC and NTC Standards

Within the RETIE framework, applicable NTC, IEC, and other recognized technical standards should be determined according to the specific product and installation conditions.

For a 1200kVA oil-immersed wind power transformer, relevant parts of the IEC 60076 series may be applied according to project requirements. Tests and technical verification can include temperature rise, insulation performance, winding resistance, voltage ratio, losses, and dielectric withstand tests.

Hengfengyou Electric can provide the following documents and test records according to project requirements:

• Product technical datasheet;
• General arrangement drawings and dimensional drawings;
• Nameplate information;
• Voltage ratio and polarity test records;
• Winding resistance test;
• No-load loss and no-load current test;
• Load loss and impedance test;
• Power-frequency withstand voltage test;
• Induced voltage test;
• Insulation-related test documents;
• Other project-specific tests or technical documentation.

Ⅳ. Four Key Technical Challenges for Colombia 1200kVA Wind Power Transformers

Compared with conventional industrial distribution applications, wind power transformers are affected by load fluctuations, power electronic equipment, environmental conditions, and lightning during long-term operation.

Therefore, the selection of a Colombia 1200kVA wind power transformer should focus on the following four technical challenges.

1. Harmonic and Overvoltage Performance of Colombia 1200kVA Wind Power Transformers

Modern wind turbine generators normally incorporate power electronic converters. Their harmonic characteristics depend on the converter topology, control strategy, filtering system, and grid conditions. Therefore, the harmonic spectrum can vary between different wind turbine models.

During project selection, harmonic data provided by the wind turbine manufacturer should be used to evaluate additional transformer losses, temperature rise, and insulation margins.

At the same time, appropriate surge arresters or other overvoltage protection devices should be selected according to the system insulation coordination design to reduce the impact of lightning overvoltages and relevant switching overvoltages on the transformer insulation system.

2. Sealing and Oil Leakage Control of Colombia 1200kVA Wind Power Transformers

Wind power transformers are commonly installed outdoors in locations where maintenance access may be limited. Long-term sealing reliability therefore has a direct impact on equipment maintenance requirements and operating costs.

In wind farms with significant day-night temperature variations, transformer tanks, flanges, valves, radiators, and bushing connections are continuously exposed to temperature changes.

Therefore, the 1200kVA wind power transformer should be designed to minimize the risk of oil leakage through proper control of tank welding quality, sealing gaskets, flange structures, and valve connections.

3. Salt Spray, Humidity, and Dust Protection for Colombia Wind Power Transformers

Coastal wind power projects require particular attention to the corrosive effects of salt spray and high humidity on transformer tanks, radiators, fasteners, and external connections.

For inland and dry environments, dust, ultraviolet radiation, and day-night temperature variations can affect coating performance and material durability.

Therefore, the corrosion protection level of the transformer enclosure and accessories should be determined according to the actual site environment rather than applying one standard corrosion protection scheme to all projects.

4. High-Temperature and High-Altitude Thermal Design for Colombia 1200kVA Wind Power Transformers

Ambient temperature and installation altitude can both affect transformer cooling and insulation performance.

For wind farms located in high-temperature environments, temperature-rise calculations should be conducted based on the maximum project ambient temperature to ensure that winding and top-oil temperatures remain within the specified design limits.

For high-altitude installations, the effects of reduced air density on cooling conditions and external insulation should also be evaluated.

Therefore, after the project technical agreement is confirmed, dedicated thermal and insulation calculations should be performed based on the actual installation site instead of simply applying standard ambient conditions to a general-purpose transformer.

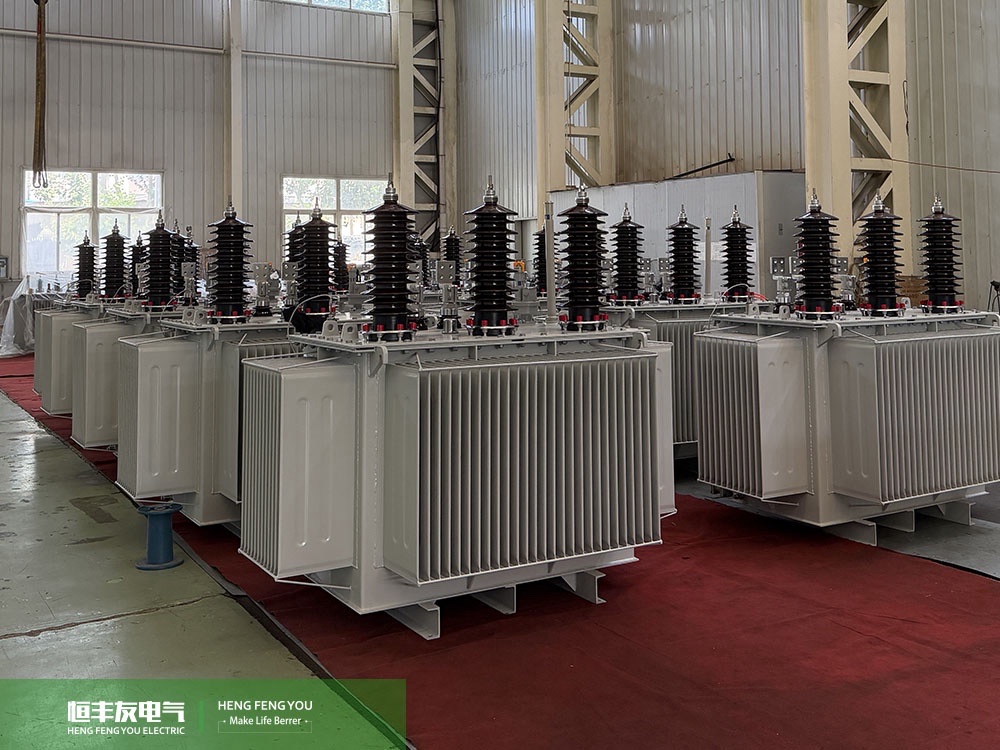

Ⅴ. Hengfengyou 1200kVA 34.5/0.4kV Wind Power Transformer Customized Solution

For Colombian wind power projects operating at 60Hz and using a 34.5kV medium-voltage collection system, Hengfengyou Electric can customize the 1200kVA 34.5/0.4kV wind power transformer in terms of electrical design, sealing structure, corrosion protection, thermal design, and project documentation.

1. Harmonic-Resistant Design for the 1200kVA Wind Power Transformer

Based on the actual harmonic data of the wind turbine converter, Hengfengyou can perform targeted calculations for the windings, magnetic circuit, and losses, and evaluate additional losses and localized temperature rise caused by harmonic currents.

High-quality copper conductors can be used for the windings, while optimized winding structures and insulation systems help support stable long-term operation.

For overvoltage protection on the wind turbine and medium-voltage sides, surge arresters and other protection devices can be configured according to the project insulation coordination and system protection requirements.

2. Sealing and Oil Leakage Prevention for the 1200kVA Wind Power Transformer

After transformer tank welding, appropriate sealing inspections are performed, with particular attention to welds, flanges, valves, and bushing connections.

Suitable sealing materials can be selected according to the project's ambient temperature range, while key oil circuit interfaces are inspected to reduce the risk of oil leakage during long-term outdoor operation.

For Colombian wind farms with significant day-night temperature variations, the sealing structure can be reinforced according to actual operating conditions.

3. Salt Spray and Dust Corrosion Protection for Colombia Wind Power Transformers

The surface treatment and coating system can be selected according to the corrosion environment of the wind farm.

For coastal salt spray environments, a multi-layer protection system may include abrasive blasting, zinc-rich epoxy primer, intermediate anti-corrosion coating, and weather-resistant topcoat.

For dusty and high-UV environments, coating weather resistance and the selection of external accessory materials can also be considered.

Bolts, grounding connections, and other external metal accessories can be manufactured using stainless steel or other corrosion-resistant materials according to project requirements.

4. High-Temperature Thermal Design for Colombia 1200kVA Wind Power Transformers

Temperature-rise verification can be performed based on the maximum project ambient temperature, installation altitude, and actual wind turbine load profile, allowing the appropriate radiator area and cooling capacity to be determined.

For wind farms located in high-temperature environments, additional thermal margin can be incorporated into the design to help maintain appropriate winding and oil temperatures during high-load operation.

5. Project Documentation Support for Colombia 1200kVA Wind Power Transformers

For Colombian projects, Hengfengyou Electric can provide technical documentation according to the requirements of the project owner and EPC contractor, including product datasheets, drawings, nameplate information, test reports, installation instructions, and maintenance documentation.

Where Spanish documentation is required, corresponding Spanish technical documents can be prepared according to the specific project requirements to facilitate equipment installation and maintenance by local EPC contractors, importers, and O&M teams.

Ⅵ. Colombia 1200kVA Wind Power Transformer Selection Parameter Comparison

Ⅶ. Colombia 1200kVA 34.5/0.4kV Wind Power Transformer Selection Recommendations

The selection of a Colombia 1200kVA 34.5/0.4kV wind power transformer should not be based only on rated capacity and voltage ratio. It should also consider the wind turbine model, converter harmonic data, system short-circuit level, lightning conditions, ambient temperature, installation altitude, salt spray, dust, and other environmental factors.

For RETIE compliance, the applicable product scope and conformity assessment route should be confirmed at an early stage. The final documentation requirements should also be discussed with the Colombian importer, EPC contractor, and project owner.

The current RETIE framework is administered and updated by Colombia's Ministry of Mines and Energy, with the latest revision issued through Resolution No. 40284 on June 23, 2026.

Before placing an order for a specific wind power project, it is recommended to confirm the following key information:

• Wind turbine manufacturer and specific model;
• Wind turbine rated output voltage;
• Wind turbine rated power and maximum output power;
• Transformer rated capacity;
• High- and low-voltage ratings;
• System frequency;
• Short-circuit impedance requirements;
• Wind turbine converter harmonic data;
• Maximum and minimum ambient temperatures at the project site;
• Installation altitude;
• Coastal salt spray or other corrosion environment classification;
• Grounding system;
• Lightning and overvoltage protection scheme;
• RETIE product conformity and project acceptance documentation requirements.

By carrying out targeted engineering based on these parameters, the transformer can be better matched to the wind turbine, electrical grid, and actual site conditions instead of simply applying conventional distribution transformer parameters.

Ⅷ. Hengfengyou 1200kVA Wind Power Transformer Project Services

Hengfengyou Electric specializes in the export of transformers and power transmission and distribution equipment. The company provides customized transformer solutions according to the grid parameters, environmental conditions, and technical specifications of different countries and projects.

For Colombian wind power projects, Hengfengyou Electric can provide project support for the 1200kVA 34.5/0.4kV wind power transformer, covering technical selection, parameter confirmation, structural design, manufacturing, routine factory testing, and technical documentation.

For coastal wind farms, the design can focus on salt spray, humidity, and corrosion protection. For high-temperature or high-altitude wind farms, thermal and insulation performance can be evaluated according to actual site conditions. For harmonics generated by wind turbine converters, additional loss and temperature-rise analysis can be carried out based on data provided by the wind turbine manufacturer.

For detailed technical parameters, loss and temperature-rise calculation documents, project-specific solutions, or quotations for the Colombia 1200kVA 34.5/0.4kV wind power transformer, please contact Sean, Regional Manager for the Americas at Hengfengyou Electric.

WhatsApp: +86 178 5422 4012
Email: sean@hengfengyou.com

Ⅸ. Data and Regulatory References

The RETIE information in this article is based on publicly available information from Colombia's Ministry of Mines and Energy (Ministerio de Minas y Energía).

According to the Ministry's current RETIE information, the latest revision was issued through Resolution No. 40284 on June 23, 2026, covering relevant areas including electrical products, installations, and conformity assessment.

Specific transformer technical parameters, test requirements, and final conformity requirements should be determined according to the project technical agreement, wind turbine manufacturer's data, local EPC requirements, current Colombian regulations, and applicable technical standards.
