What is the difference between box type substation and box type transformer?

Writer: Hengfeng you electric Time:2023-03-31 views:times

What is the difference between box type substation and box type transformer? Transformer is a device that transforms AC voltage, current and impedance. When AC current is connected in the primary coil, AC magnetic flux will be generated in the iron core (or magnetic core) to induce voltage (or current) in the secondary coil. The transformer consists of an iron core (or magnetic core) and a coil. The coil has two or more windings. The winding connected to the power supply is called the primary coil, and the other windings are called the secondary coil. In the generator, no matter whether the coil moves through the magnetic field or the magnetic field moves through the fixed coil, the potential can be induced in the coil. In both cases, the value of magnetic flux remains unchanged, but the number of magnetic flux in the chain intersecting the coil changes, which is the principle of mutual inductance. Transformer is a device that uses electromagnetic mutual inductance to transform voltage, current and impedance.
Box type substation:

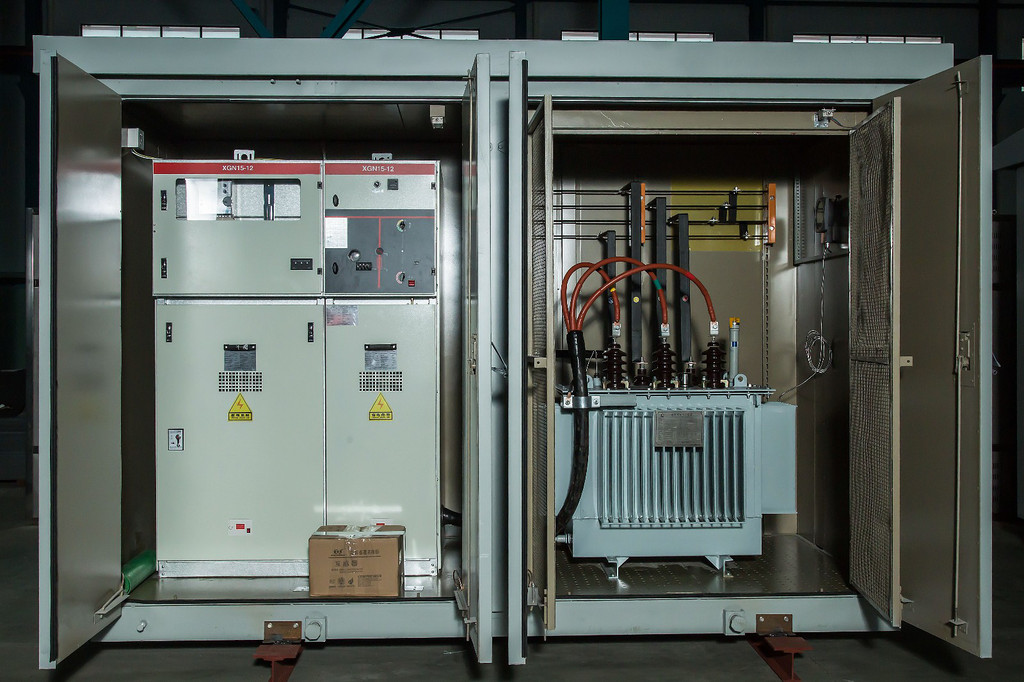

It is also called prefabricated substation or prefabricated substation. It is a factory prefabricated indoor and outdoor compact power distribution equipment with high-voltage switchgear, distribution transformer and low-voltage power distribution device arranged according to a certain wiring scheme, that is, the functions of transformer step-down and low-voltage power distribution are organically combined and installed in a moisture-proof, rust proof, dust-proof, rat proof, fire-proof, anti-theft, heat insulation, fully enclosed and movable steel structure box, It is especially suitable for urban network construction and transformation. It is a new substation rising after civil substation. Box type substation is suitable for mines, factories, oil and gas fields and wind power stations. It replaces the original civil power distribution room and power distribution station and becomes a new complete set of power transformation and distribution equipment.

power distribution equipment
Box type transformer:
As a complete set of distribution equipment, box transformer is organically composed of transformer, high voltage control equipment and low voltage control equipment. Its basic principle is that through the pressure starting system, armored wire, substation automatic system, DC point and corresponding technical equipment, all components are reasonably assembled according to the specified sequence, and all components are installed in the specific waterproof, dustproof and rat proof fully sealed toughened box structure, so as to form a specific transformer. At present, box transformer has been widely used in power engineering construction.
Box type substation and box type transformer are a kind of distribution equipment, which are called differently in different places.
China Hongye Electric is a high-tech enterprise specializing in transformer, voltage regulator and other transformation and distribution equipment. Its main products include: transformer, voltage regulator, frequency converter, voltage booster, voltage regulator, DC power supply, UPS power supply, equipment supporting power supply and other products. Please add customer service consultation for the price of the above products.
Hongye electric appliance, founded in 1985, is a high-tech enterprise, mainly providing high-end power transformation and distribution equipment for users in industries such as electric power, banks, hospitals, airports, railway stations, subway stations, universities and IDC service providers.
In addition to national key projects, local bidding projects and customized products, Hongye electric also has in-depth cooperation with well-known power transformation and distribution equipment manufacturers at home and abroad. After years of deep cultivation in the industry, it has accumulated a large number of high-quality manufacturer resources. The advantages of procurement channels enable us to provide end users with various brands of frequency converters, transformers, voltage regulators, relays, distribution boxes, ups and other power transformation and distribution equipment and various types of bus bridges with great price advantages.
