66 kV Vehicle-Mounted Mobile Power Substation (HVMM Series) Global Procurement Guide

66kv Vehicle Mounted Mobile Power Substation Global Procurement Guide
【Flexible and efficient power emergency solutions】

II. 66 kV Mobile Substation Technical Specification and Customization Matrix

---

he HVMM series supports flexible configurations with a rated primary voltage of 50 kV, 66 kV, or 69 kV, variable secondary output voltages, and power capacities ranging from 10 MVA to 63 MVA. The entire chassis layout and weight balancing undergo finite element analysis (FEA) to ensure structural safety during highway and off-road transit.

Table: Technical Parameters of 33 kV - 110 kV Mobile Substations

• 15+ Years of R&D and Manufacturing Excellence: Full-scale manufacturing facilities capable of delivering up to 30 units/year for grids under 132 kV, and over 120 units/year for systems under 35 kV.

• Elite Mechanical Stability: Heavy-duty semi-trailer frames are custom-engineered based on precise axle weight distributions, preventing mechanical stress on transformer bushings and switchgear enclosures during long-distance hauling.

• Extreme Environmental Protection: Standard enclosures are coated and sealed to resist severe environmental stressors including high humidity, heavy salt spray in coastal zones, extreme desert heat, and blinding sandstorms.

IV. Global Project Cases and Business Growth

Hengfengyou Electric aims to be a leading global manufacturer of premium electrical equipment. The business, engineering experience, and technical expertise accumulated over the decades have benefited power utilities and industrial clients across more than 50 countries. We focus on long-term partnerships built on uncompromised product stability and responsive after-sales service.

V. Frequently Asked Questions (FAQ) for 66 kV Mobile Substations

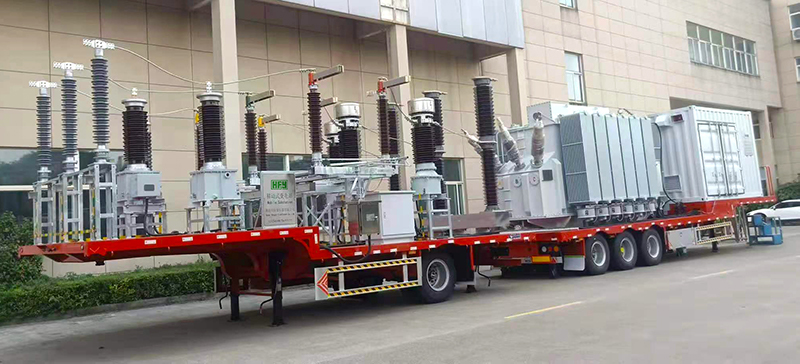

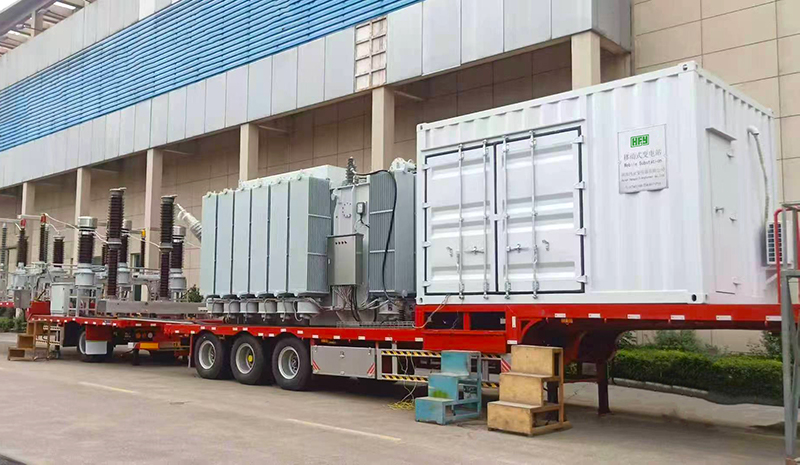

Q1: What are the core electrical components integrated into a 66 kV vehicle-mounted mobile substation?

• High-Voltage Unit: Compact 66 kV / 69 kV GIS (Gas Insulated Switchgear) or HGIS to minimize space while ensuring superior arc-extinguishing and insulation performance.

• Medium-Voltage Unit: Custom outdoor metal-clad switchgear equipped with reliable vacuum circuit breakers (VCBs).

• Transformer Unit: Low-loss power transformer (up to 63 MVA) featuring robust anti-vibration damping pads to handle transit shock.

• Auxiliary Systems: Intelligent control and protection relay cabinets, automatic fire suppression systems, and heavy-duty HVAC climate control.

• Structural Carrier: Multi-axle, heavy-duty semi-trailer or modular container configurations compliant with local road regulations.

Q2: What are the typical application scenarios for a 66 kV mobile substation?

• Urban Grid Overhauls: Fast load-transfer during traditional substation renovation or maintenance without causing long-term blackouts.

• Industrial & Mining Operations: Providing reliable, temporary power for large-scale oil & gas extraction, mining sites, and massive metallurgical projects before permanent grid infrastructure is built.

• Emergency Disaster Relief: Achieving rapid grid reconstruction within a 48 to 72-hour window after earthquakes, floods, or severe hurricanes.

• Cross-Border EPC Infrastructure: Serving as modular grid infrastructure for fast-tracking utility projects in developing markets.

Q3: What are the distinct advantages of a 66 kV mobile substation compared to a traditional fixed substation?

Q4: What are the technical and environmental requirements for the transportation and site deployment of a 66 kV mobile substation?

• Highway & Road Transit: Transported via multi-axle hydraulic trailers. Total transport weight and clearance dimensions are strictly optimized to pass under standard highway bridges.

• International Ocean Freight: Structural dimensions fully comply with ISO international shipping and tie-down protocols.

• Civil Deployment Requirements: The deployment site requires a compacted soil/gravel foundation with a bearing capacity of ≥ 150 kPa and an installation inclination slope of less than 0.5 degrees.

Q5: How long does it take to commission and energize the 66 kV mobile substation on-site?

• Standard Scheduled Deployment: Typically takes 3 to 7 days, which includes trailer leveling, cable termination, and standard protection relay debugging.

• Emergency Rapid Mode: Can be energized within 48 hours. Since all primary and secondary systems are pre-wired, pre-configured, and factory-tested at Hengfengyou, on-site engineers only need to connect the external HV/MV cables and ground loops.

Q6: What intelligent features does the substation’s automation system support for remote operations?

• Online Diagnostics: Integrates Dissolved Gas Analysis (DGA) for real-time transformer oil monitoring.

• Thermal Intelligence: Real-time fiber-optic winding hot-spot monitoring with an accuracy of ±1°C to trigger automated cooling.

• Grid Communication Framework: Fully compliant with the IEC 61850 protocol, allowing seamless integration into local utility SCADA systems for unmanned remote monitoring and control.
