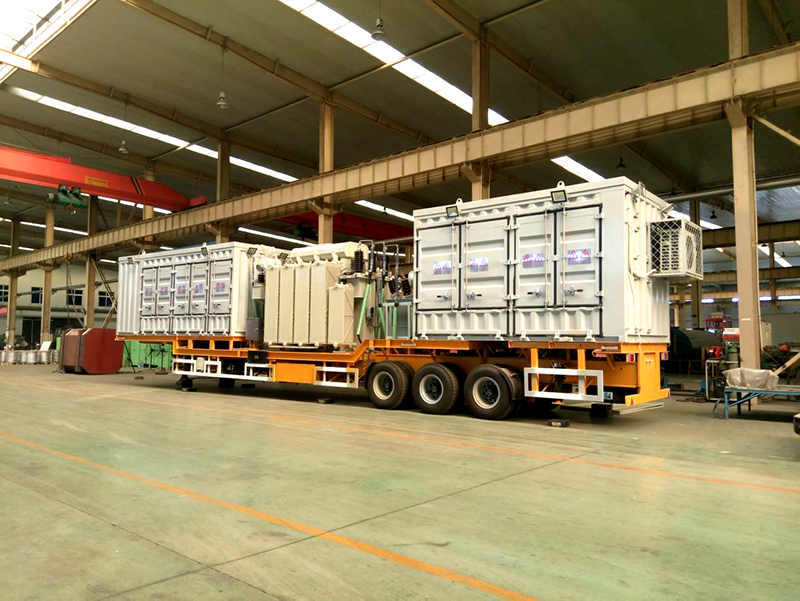

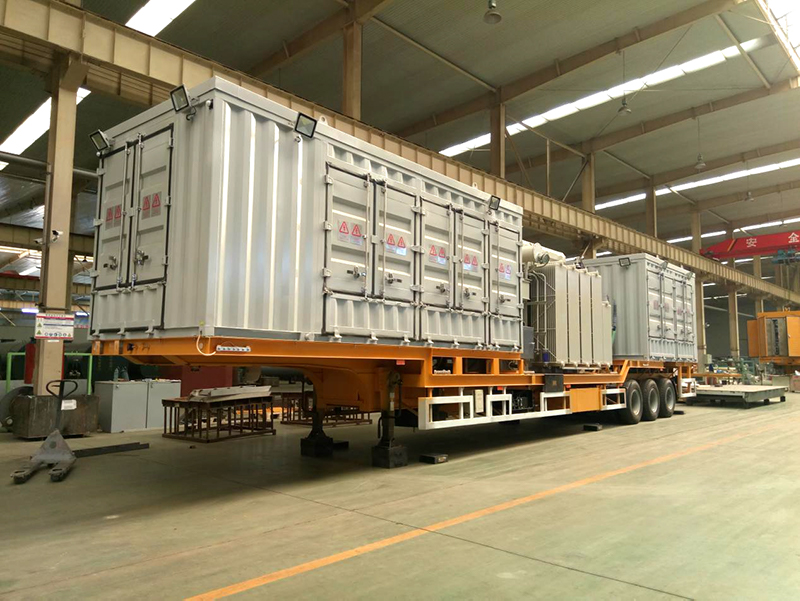

33 kV Vehicle-Mounted Mobile Power Substation (HVMM Series) Global Procurement Guide

33kv Vehicle Mounted Mobile Power Substation Global Procurement Guide
【Flexible and efficient power emergency solutions】

II. Technical Specifications & Customization Matrix

The HVMM series supports flexible configurations with a rated primary voltage of 33 kV to 35 kV, variable secondary output voltages, and power capacities ranging from 5 MVA to 63 MVA. The entire chassis layout and weight balancing undergo finite element analysis (FEA) to ensure structural safety during highway and off-road transit.

Table: Technical Parameters of 33 kV - 110 kV Mobile Substations

IV. Frequently Asked Questions (FAQ)

Q1: What are the core components integrated into a 33 kV HVMM mobile substation?

• High-Voltage Unit: Compact 33 kV GIS (Gas Insulated Switchgear) or HGIS to minimize space while ensuring superior arc-extinguishing performance.

• Medium-Voltage Unit: Custom outdoor metal-clad switchgear equipped with vacuum circuit breakers (VCBs).

• Transformer Unit: Low-loss power transformer featuring robust anti-vibration damping pads.

• Secondary Systems: Intelligent control and protection relay cabinets, automatic fire suppression systems, and HVAC climate control.

• Structural Chassis: Multi-axle, heavy-duty semi-trailer or modular container configurations compliant with local road regulations.

Q2: What are the key application scenarios for 33 kV mobile substations?

• Urban Grid Overhauls: Fast load-transfer during traditional substation renovation or maintenance without causing long-term blackouts.

• Industrial & Mining Operations: Providing reliable, temporary power for large-scale oil & gas extraction, mining sites, and massive metallurgical projects before permanent grid infrastructure is built.

• Emergency Disaster Relief: Achieving rapid grid reconstruction within a 48 to 72-hour window after earthquakes, floods, or severe hurricanes.

• Cross-Border EPC Infrastructure: Serving as modular grid infrastructure for fast tracking utility projects in developing markets.

Q3: How does a 33 kV mobile substation compare to a traditional fixed substation?

Q4: What are the logistical and environmental constraints for transportation and site deployment?

• Highway & Road Transit: Transported via multi-axle hydraulic trailers. Total transport weight and clearance dimensions are strictly optimized to pass under standard highway bridges.

• International Ocean Freight: Structural dimensions fully comply with ISO international shipping and tie-down protocols.

• Civil Deployment Requirements: The deployment site requires a compacted soil/gravel foundation with a bearing capacity of ≥ 150 kPa and an installation inclination slope of less than 0.5 degrees.

Q5: How long does it take to commission and energize the mobile substation on-site?

• Standard Scheduled Deployment: Typically takes 3 to 7 days, which includes trailer leveling, cable termination, and standard protection relay debugging.

• Emergency Rapid Mode: Can be energized within 48 hours. Since all primary and secondary systems are pre-wired, pre-configured, and factory-tested at Hengfengyou, on-site engineers only need to connect the external HV/MV cables and ground loops.

Q6: What intelligent features does the substation’s automation system support?

• Online Diagnostics: Integrates Dissolved Gas Analysis (DGA) for real-time transformer oil monitoring.

• Thermal Intelligence: Real-time fiber-optic winding hot-spot monitoring with an accuracy of ±1°C to trigger automated cooling.

• Grid Communication Framework: Fully compliant with the IEC 61850 protocol, allowing seamless integration into local utility SCADA systems for unmanned remote monitoring and control.

V. Partner with Hengfengyou Electric

Hengfengyou Electric continuously invests in state-of-the-art power distribution technologies to empower engineering firms, utilities, and industrial clients worldwide. Our long-term clients trust us because we do not compromise on component quality or structural integrity.
