Special Transformer

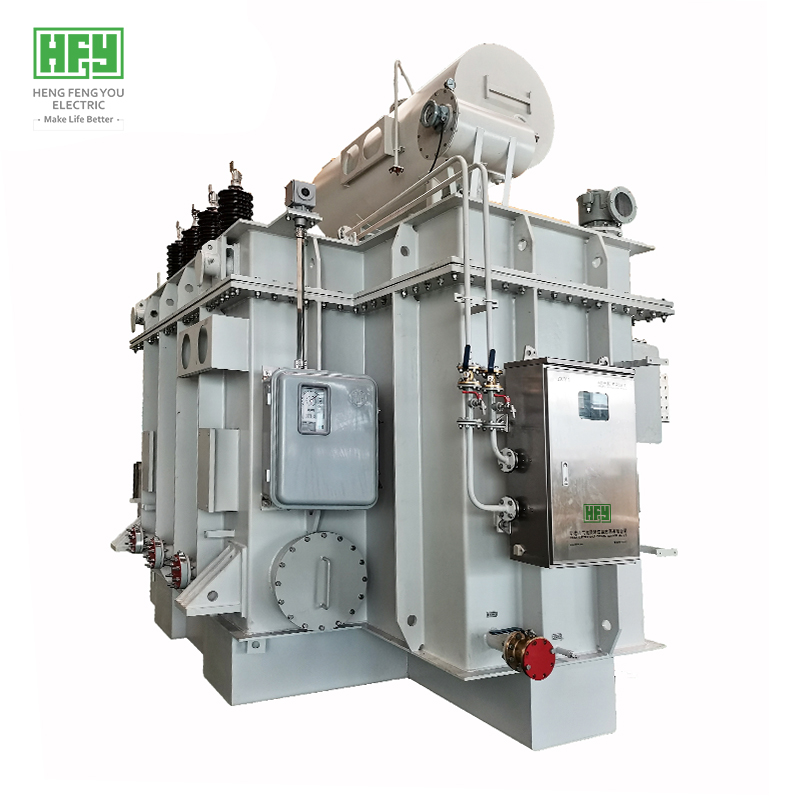

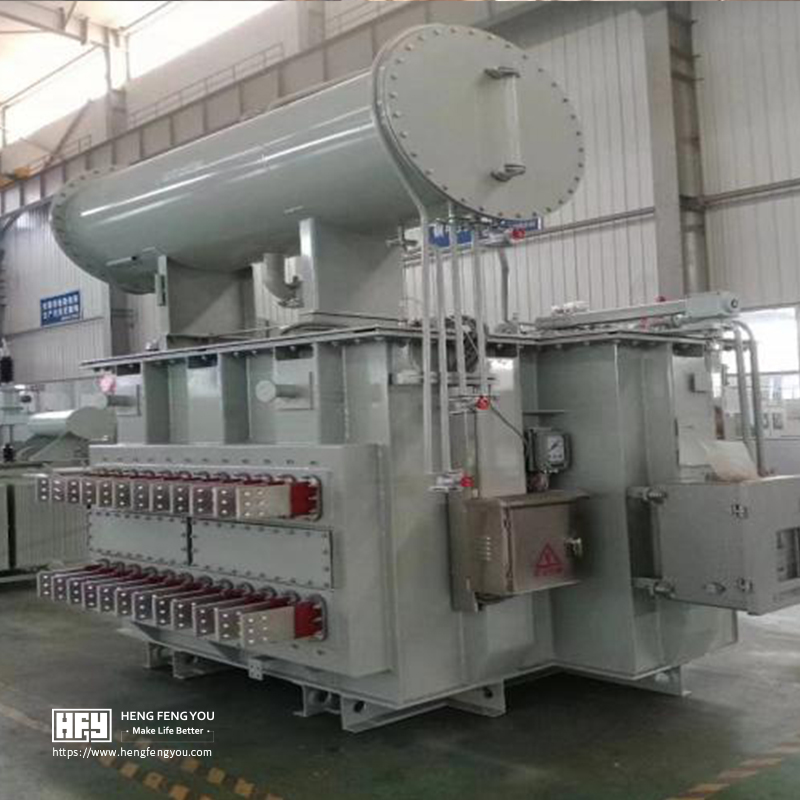

Furnace transformer series

  • Brand: HENGFENGYOU
  • Series: Furnace transformer series
  • USES: Professional for metallurgical, chemical, mechanical and other industries of electric furnace power supply solutions
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、CE、KEMA

Product overview


  - Electric furnace transformer is a professional transformer which is planned according to the working principle, load characteristics and operation characteristics of various electric furnaces
Specifically include: steel-making arc furnace transformer, ladle refining furnace transformer, slag furnace transformer, ore heating furnace transformer, frequency furnace transformer and other communication furnace transformer and medium frequency induction furnace transformer, silicon carbide, graphitization furnace transformer and other DC furnace transformer.
  - Industrial furnace transformers are mainly divided into three categories: resistance furnace transformers, arc furnace transformers and induction furnace transformers
Hengfengyou furnace transformer production standards: one type is according to the current Chinese standards of production planning of the standard furnace transformer;
The other is a new type of energy-saving electric furnace transformer developed and manufactured on the basis of Chinese standard electric furnace transformer
 - Main applications:
 · Used for smelting high quality alloy copper and ferroalloy in metallurgical industry
 · In the chemical industry, it is used to produce yellow phosphorus, calcium carbide, synthetic resin, etc
 · Used for melting cast steel and cast iron in machinery industry
 - High reliability of operation verification in more than 50 countries and regions around the world
 - Products are mainly sold to East Asia, Central Asia, Southeast Asia, South America, North America and other markets and regions
 - Executive standard: IEC 60076 series
furnace transformer, electric furnace transformer, furnace <a href='https://www.hengfengyou.com/products/' target='_blank'><u>transformer price</u></a>, oil furnace transformer


Product advantage

Leading technology
 - Large capacity, low loss, more energy saving, the actual measurement is better than GB and IEC standards
 - High voltage copper strip winding technology, improve lightning resistance
 - Low voltage copper foil winding technology, high quality A class insulation material insulation, higher temperature resistance grade
 - Small magnetic leakage, high mechanical strength, strong resistance to short circuit
 - Core 45° fully oblique joint stepping laminated structure

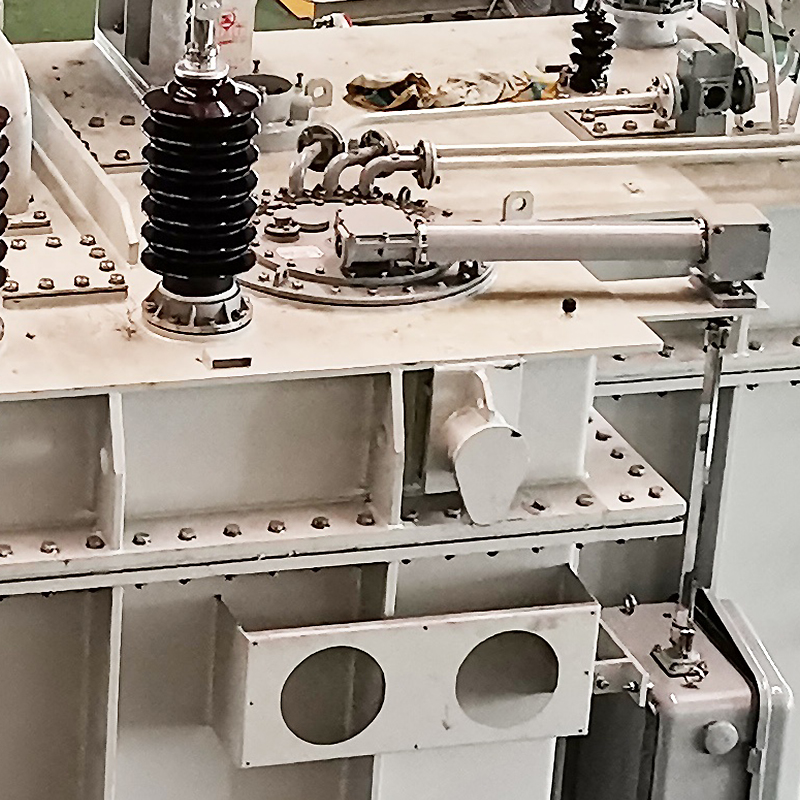

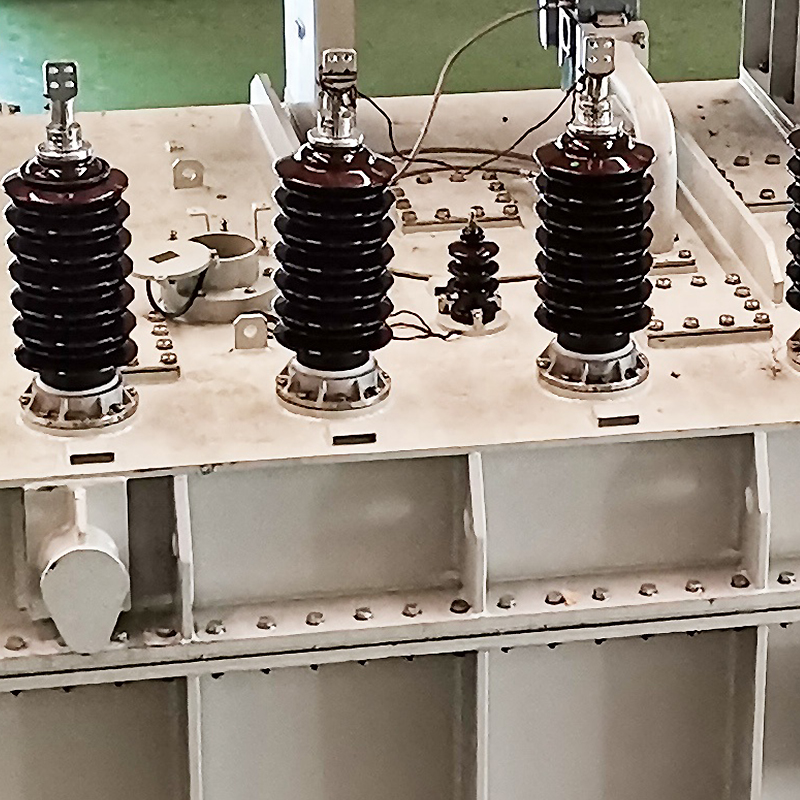

The shell
 - Japanese Mitsubishi laser cutting machine and CNC punching, reducing, folding and other equipment to ensure the accuracy of processing
 - ABB robot automatic welding, laser detection, to avoid leakage, pass rate of 99.99998%
 - Electrostatic spray treatment, 30 years not take off the paint (coating corrosion resistance within 100h, hardness ≥0.4)
 - Fully sealed structure, maintenance-free, normal operation life of more than 30 years

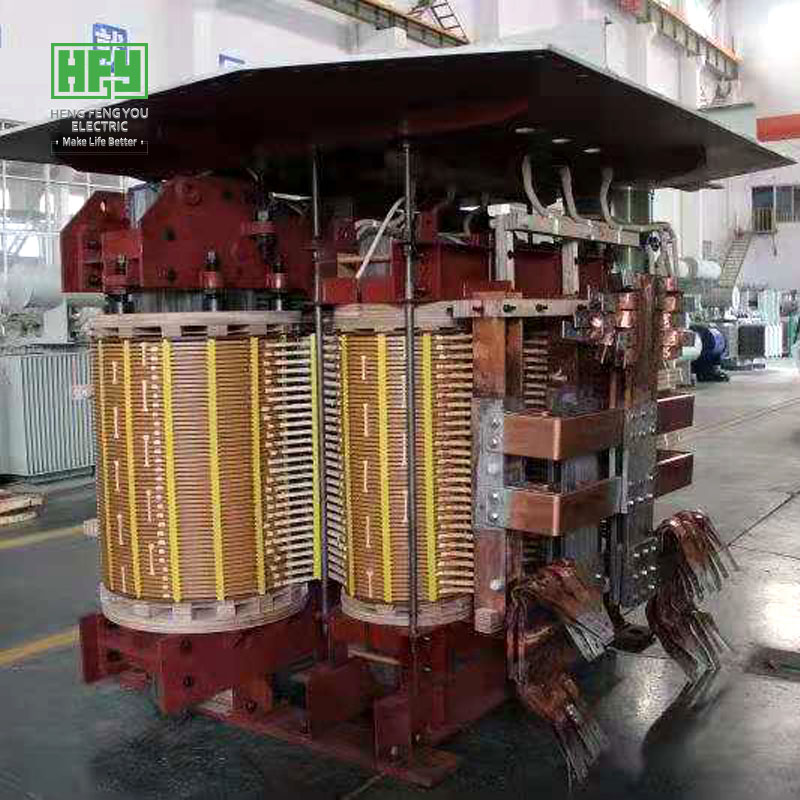

The iron core
 - The core is made of high quality cold-rolled grain oriented silicon steel sheet with mineral oxide insulation (from Baosteel and WISCO of China).
 - Minimize the loss level, no-load current and noise by controlling the cutting and stacking process of the silicon steel sheet
 - The iron core is specially reinforced to ensure the structure of the transformer is firm during normal operation and transportation

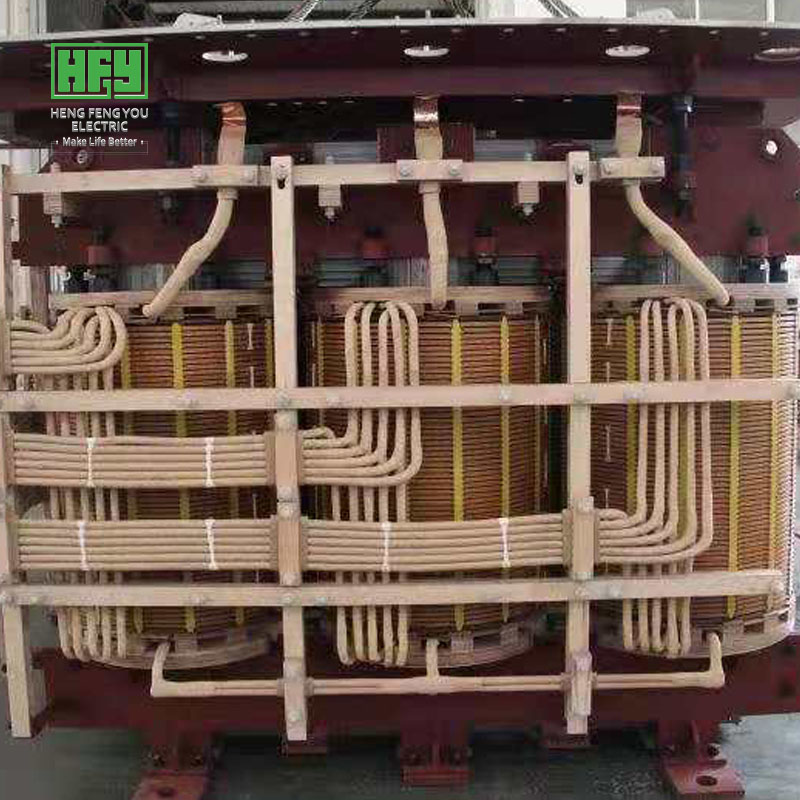

Winding
 - The low voltage winding is made of high quality copper foil, excellent insulation resistance
 - The high-voltage winding is usually made of insulated copper wire, using the patented process technology of Hengfeng You Electric
 - Very good resistance to radial stress caused by short circuit

High quality material
 - Baosteel and WISCO produce silicon steel sheets
 - China produces high quality oxygen-free copper
 - CNPC (Kunlun Petroleum) High quality transformer oil (25# 40#)

Patent technology
 - Thanks to the patented technology of "ultra-low loss energy-saving power transformer" of Hengfengyou Electric, the material can be saved by 5%, and the loss of the transformer can be reduced by 10-20% compared with similar products in the market, which is more energy saving and environmental protection.


Conditions of use

  - Altitude less than 1000m, air temperature -25℃~40℃, humidity less than 90% (+25℃)
  - The vertical incline shall not exceed 5°, there shall be no severe vibration, and the outdoor wind speed shall not exceed 35m/s
  - No gas or conductive dust that seriously affects the transformer insulation;
No explosion hazard, no corrosion of electrical components
  - If the above normal operating conditions are exceeded, customers can contact our company for customized solutions


Product parameters

  - Remarks: Voltage, capacity, frequency, connection group and loss can be customized according to customer requirements
(Table parameters are attached below)

Furnace transformer parameter table
Rated
Capacity
(kVA)
Vector
Group
Primary
Voltage
(kV)
Secondary Voltage
(V)
No.
of
Taps
Secondary
Rated
Current (A)
4000 kva







Dd0
Yd11
10
240; 138; 121; 210
4
9630
4000 kva
35
240; 139; 121; 210
4
9626
4200 kva
10
240; 138; 129; 224; 210; 121
6
10112
4200 kva
35
240; 138; 129; 224; 210; 121
6
10107
5000 kva
10
240; 139; 121; 210
4
12028
5000 kva
35
240; 130; 121; 210
4
12032
5500 kva
10
260; 150; 139; 240; 210; 121
6
12208
5500 kva
35
260; 150; 139; 240; 210; 121
6
12218
6300 kva
10
260; 150; 139; 240; 210; 121
6
13983
6300 kva
35
260; 150; 139; 240; 210; 121
6
13991
8000 kva
10
260; 150; 139; 240; 210; 121
6
17749
8000 kva
35
260; 150; 139; 240; 210; 121
6
17759
9000 kva

Dd0
10
280; 260; 240; 220; 200; 180; 160; 140
8
18576
9000 kva
10
290; 270; 250; 230; 210; 190; 170; 150
8
22603
9000 kva
10
340; 320; 300; 280; 260; 240; 220; 200
8
18591
9000 kva

Yd11
35
280; 260; 240; 220; 200; 180; 160; 140
8
18551
9000 kva
35
290; 270; 250; 230; 210; 190; 170; 150
8
22629
9000 kva
35
340; 320; 300; 280; 260; 240; 220; 200
8
18579
10000 kva

Dd0

10
280; 260; 240; 220; 200; 1880; 160; 140
8
20620
10000 kva
10
280; 260; 240; 220; 200; 1880; 160; 140
8
26228
10000 kva
10
350; 340; 330; 320; 311; 301; 291; 280; 270
9
18539
10000 kva

Yd11
35
280; 260; 240; 220; 200; 1880; 160; 140
8
20612
10000 kva
35
280; 260; 240; 220; 200; 1880; 160; 140
8
26245
10000 kva
35
350; 340; 330; 320; 311; 301; 291; 280; 270
9
18571
12500 kva

Dd0
10
300; 290; 281; 270; 260; 250; 241; 230; 221
9
24022
12500 kva
10
320; 298; 279; 262; 247; 233; 221; 210; 199
9
29177
12500 kva
10
349; 328; 309; 292; 277; 263; 251; 240; 299
9
26071
12500 kva

Yd11
35
300; 290; 281; 270; 260; 250; 241; 231; 220
9
24048
12500 kva
35
320; 298; 278; 261; 246; 233; 221; 210; 200
9
29286
12500 kva
35
350; 329; 310; 293; 278; 264; 252; 241; 230
9
25982
15000 kva

Dd0
10
330; 308; 289; 272; 257; 244; 232; 221; 211
9
26228
15000 kva
10
340; 318; 299; 282; 267; 254; 241; 230; 220
9
32414
15000 kva
10
379; 357; 338; 319; 302; 287; 273; 261; 249
9
28800
15000 kva

Yd11
35
330; 309; 289; 272; 257; 244; 232; 221; 211
9
26214
15000 kva
35
340; 318; 299; 283; 268; 254; 242; 231; 221
9
32357
15000 kva
35
380; 357; 337; 319; 302; 288; 274; 262; 251
9
28653
16000 kva

Dd0
10
340; 318; 299; 282; 267; 254; 241; 230; 220
9
27185
16000 kva
10
340; 318; 299; 282; 267; 254; 241; 230; 220
9
34575
16000 kva
10
390; 365; 343; 324; 307; 290; 275; 261; 249
9
30138
16000 kva

Yd11
35
340; 318; 299; 283; 268; 254; 242; 231; 221
9
27200
16000 kva
35
390; 365; 342; 323; 306; 289; 275; 261; 249
9
30237
16000 kva
35
400; 373; 350; 330; 312; 295; 281; 267; 255
9
29649


Ordering instructions

 - Main parameters of transformer (voltage, capacity, loss and other main parameters)
 - Transformer use environment (altitude, temperature, humidity, location, etc.)
 - Other customization requirements
 - Normal lead time is 30 days
 - Fast worldwide delivery


Our Advantages

 - Authoritative certification: ISO, CE, CB, CQC, etc
 - Perfect SQA quality management system and patented technology to ensure high quality products
 - Efficient production equipment and low raw material prices ensure the price advantage
 - Adequate inventory, short lead time, fast delivery worldwide
 - Perfect after-sales service system, so that customers buy worry-free
 - Welcome customers to visit our factory and provide OEM/ODM service
