Global bitcoin mining power distribution solution

Project Type:Mining&Metallurgy
Project Time:
Project Location:
Solution:

Get free quotes

The immediate enquiries

With the United States becoming the largest bitcoin mining center in 2022, there is a strong demand for 2500kVA three-phase pad mounted transformers and 3000kva three-phase pad mounted transformers, which indirectly drives the bitcoin mining industry in Canada. Canada is attractive because of its energy cost efficiency, and more and more crypto mining businesses are using this energy. Emiliano Grodzki, founder and chief strategy officer of bitfarms, recently told local media that they are trying to get more provinces involved and help them benefit from mining. This includes the recent agreement with Quebec, which is a win-win situation for both sides. It can be said that bitcoin mining in Canada has become a major industry supporting the local economy.

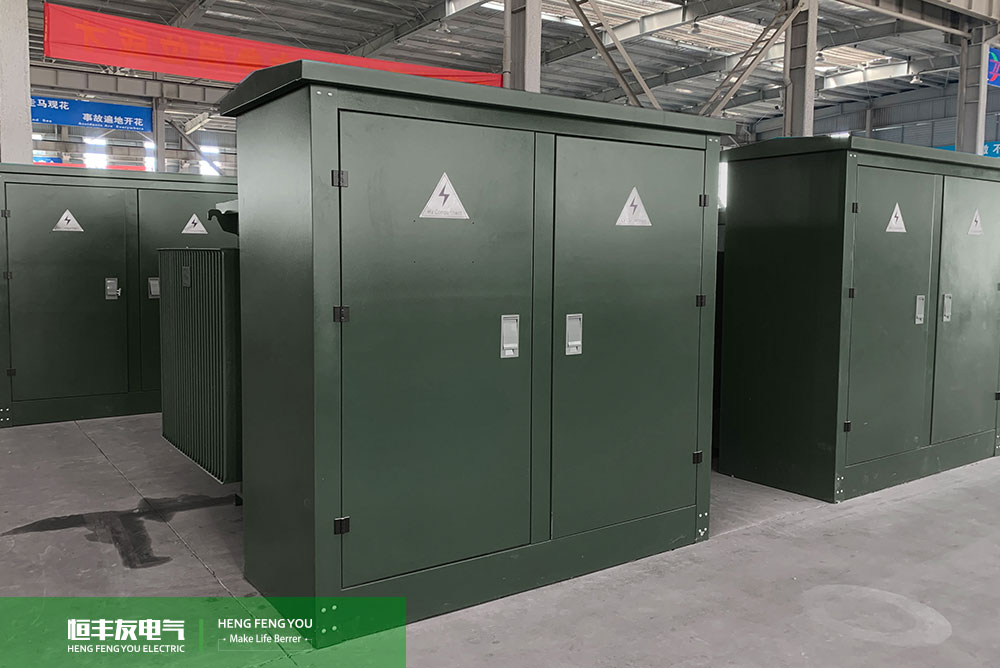

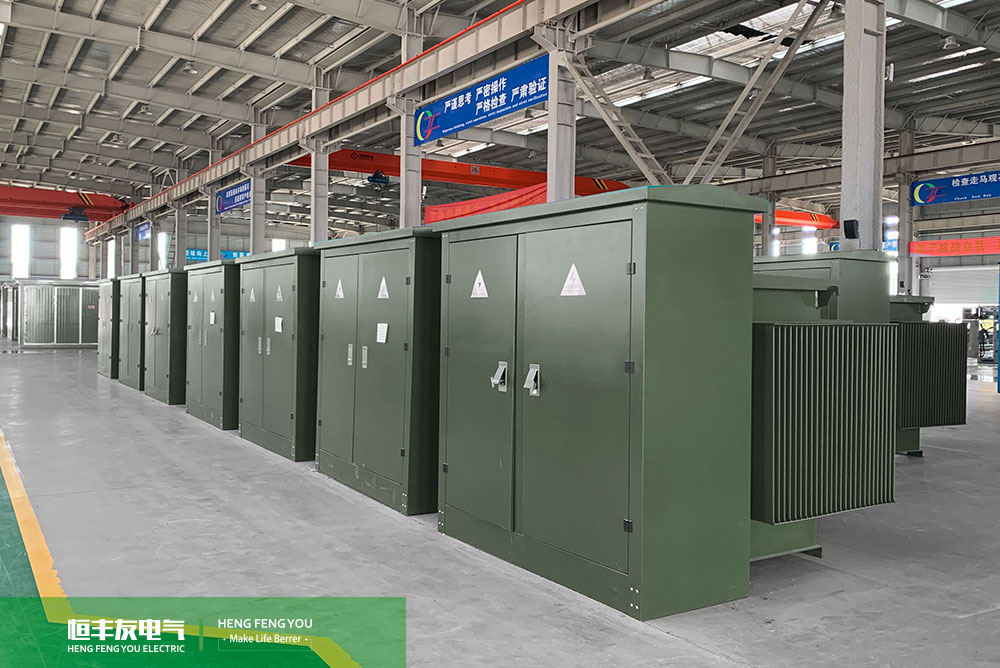

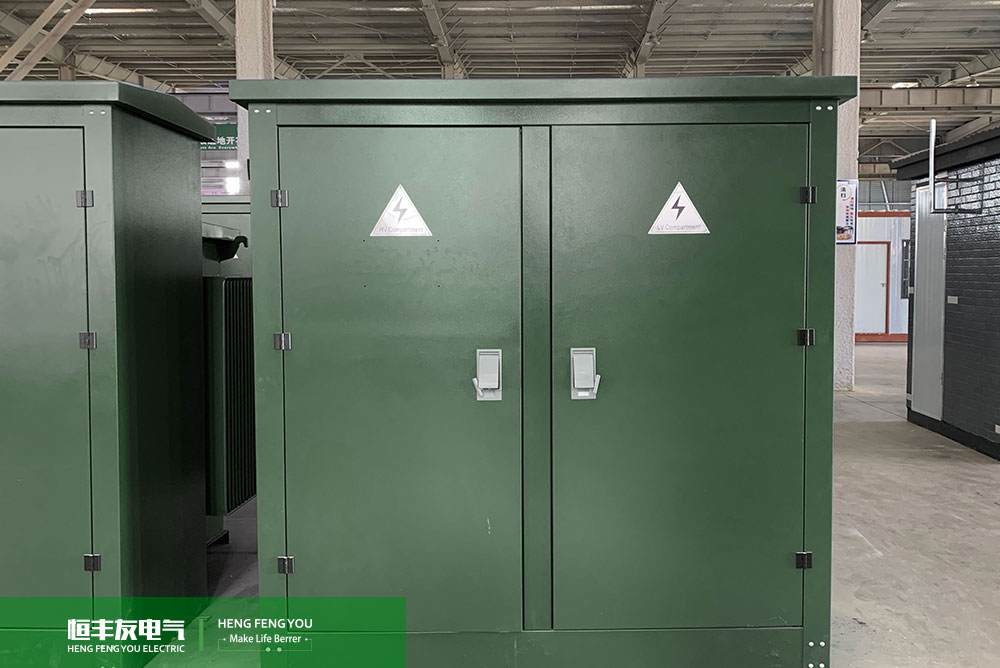

The pad mounted transformer developed and produced by hengfengyou Electric Group for bitcoin mining fully conforms to American ANSI and IEEE standards, and conforms to American UL, Canadian cul and Canadian CSA (Canadian Standards Association）Certification. At present, 1273 sets have been sold in total, and the operation is safe and reliable, winning the favor of customers.

Hengfengyou Electric Group - the global power transmission and distribution supplier, provides you with the best bitcoin mining and distribution solutions. hfy@hengfengyou.com ; http://www.hengfengyou.com

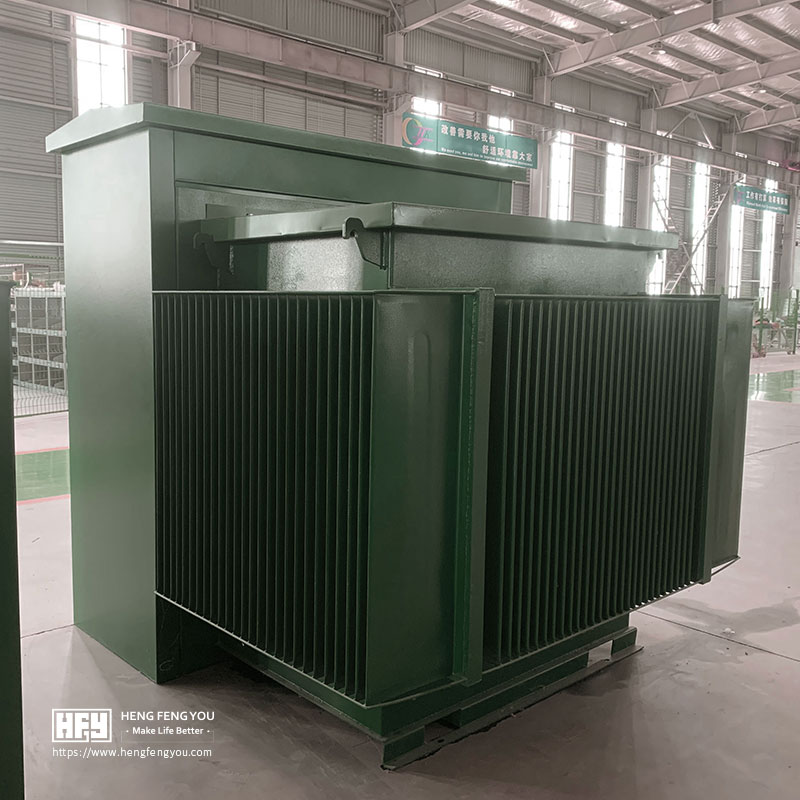

Canadian pad mounted transformer 26.7/0.415kv-3000 KVA parameter table (for bitcoin mining)

Specifications :
Product type:	Pad Mounted Transformer
Standard:	IEEE C57.12.00 /IEEE C57.12.90/IEEE C57.12.28
Rated capacity:	3000kva
Primary voltage:	27600V
Tapping range	±2x2.5%
Secondary voltage(load):	415v
Certification:	UL Listed
Impedance:	6%
Material of winding:	aluminum
Vector group:	Dyn11
Frequency:	60hz
Nos. Of phase:	three
Cooling method:	ONAN
Technical data
Type of installation:	outdoor
Level of insulation:	A
Mounting mode:	Pad mounted
Oil average temperature rise:	65°C
Oil top temperature rise:	65°C
Winding temperature rise:	65°C
No-load losses:	2.3kw
Load-losses:	22.3kw
No-load current:	0.5%
Ambient temperature for operation:	-25°C to 50°C
Noise level:	<52
BIL:HV/LV
