Amorphous Alloy Transformer

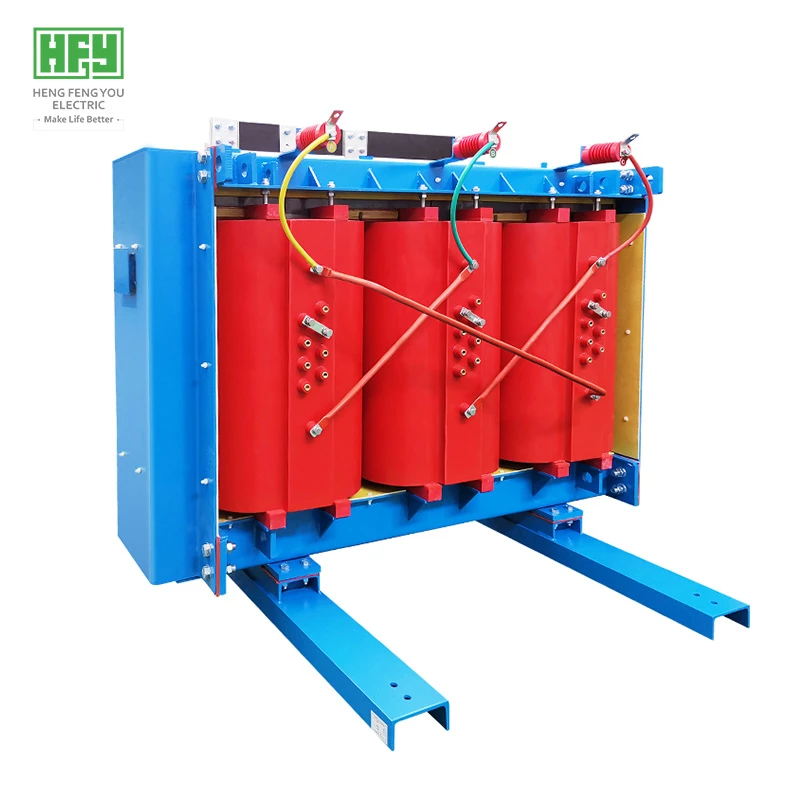

20KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

Brand: HENGFENGYOU
Series: SCBH15
USES: Distribution transformer
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、KEMA

Get Quotes

Product overview

- Lower loss, energy saving and environmental protection, 70-80% energy saving than SCB9 series
- Actual measurement is better than GB and IEC standards
- Safer excellent fire performance F1 class
- With perfect temperature protection and control system, it can run at 150% rated load under forced air cooling conditions
- The high reliability verified by global operation has been exported to more than 50 countries and regions
- It is mainly used in 20KV urban distribution network, power supply and distribution system of industrial and mining enterprises and civil buildings
- Products are mainly sold to Europe and other developed countries and regions
- Executive standard: GB1094.11-2007, GB/T22072-2008 and IEC60076-11 standards;The product is H class (working temperature 180℃) heat resistant grade
- The shell materials are aluminum alloy, cold rolled steel plate, stainless steel, etc. (protection level IP20, IP23, etc.)

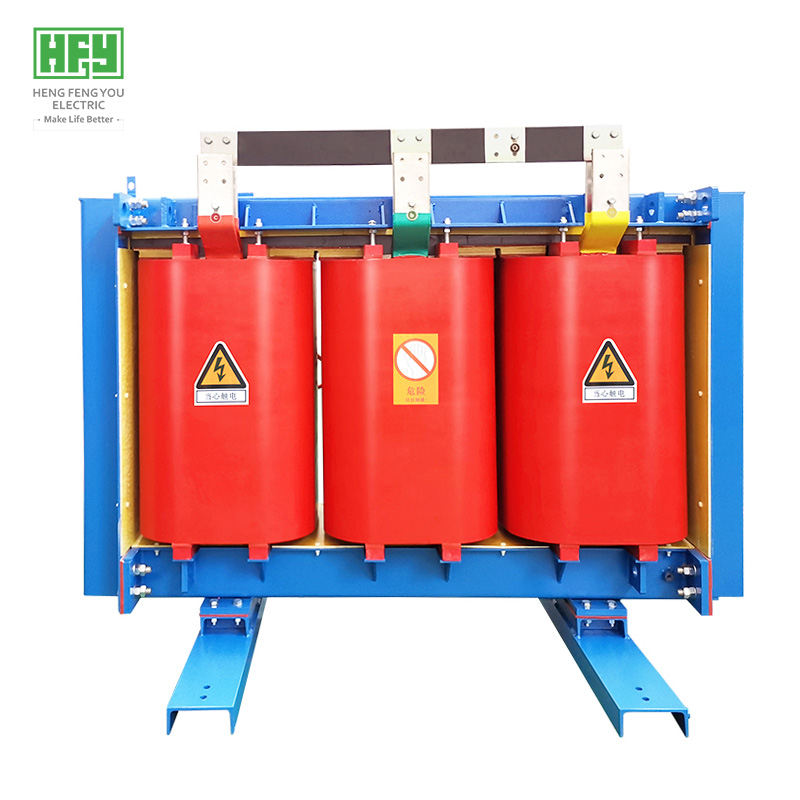

20KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

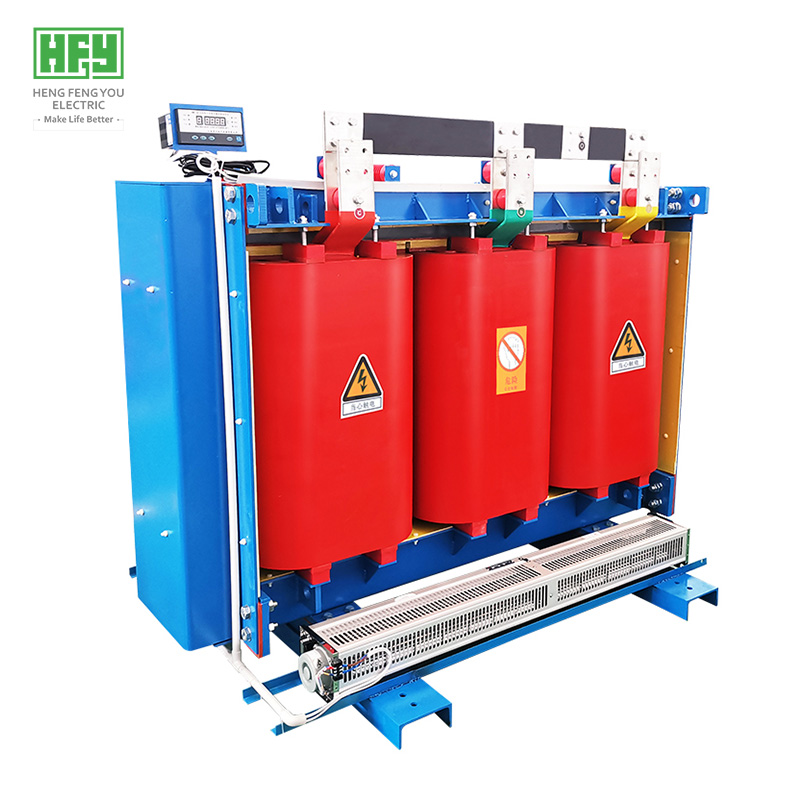

20KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

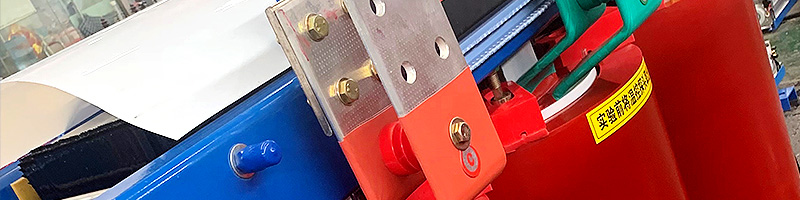

Product advantage

- High pressure copper strip winding technology, flame retardant formula vacuum pouring

- Low pressure copper foil winding technology, thermosetting epoxy prepreg cloth insulation

- The high pressure coil is cast under high vacuum, and the casting material system is added with a unique flame retardant filler, which is a patented technology of Hengfengyou Electric

Product specifications

- Input voltage: 20kV
- Output voltage: 0.4kV
- Capacity: 30-2500 kva
- Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

type	Capacity （kVA）	voltage(kV)	Vector GroupSymbol	NO-load loss（kW)	Load loss (kW)	Short circuit impedance (%)	NO-load current(%)
SH15-M-30/10	30	10 10.5	Dyn11 or Yyn0 or Yzn11	33	630/600	4.0	1.50
SH15-M-50/10	50			43	910/870		1.20
SH15-M-63/10	63			50	1090/1040		1.10
SH15-M-80/10	80			60	1310/1250		1.00
SH15-M-100/10	100			75	1580/1500		0.90
SBH15-M-125/10	125			85	1890/1800		0.80
SBH15-M-160/10	160			100	2310/2200		0.60
SBH15-M-200/10	200			120	2730/2600		0.60
SBH15-M-250/10	250			140	3200/3050		0.60
SBH15-M-315/10	315			170	3830/3650		0.50
SBH15-M-400/10	400			200	4520/4300		0.50
SBH15-M-500/10	500			240	5410/5150		0.50
SBH15-M-630/10	630			320	6200	4.5	0.30
SBH15-M-800/10	800			380	7500		0.30
SBH15-M-1000/10	1000			450	10300		0.30
SBH15-M-1250/10	1250			530	12000		0.20
SBH15-M-1600/10	1600			630	14500		0.20
SBH15-M-2000/10	2000			750	18300	5.0	0.20
SBH15-M-2500/10	2500			900	21200	5.0	0.20

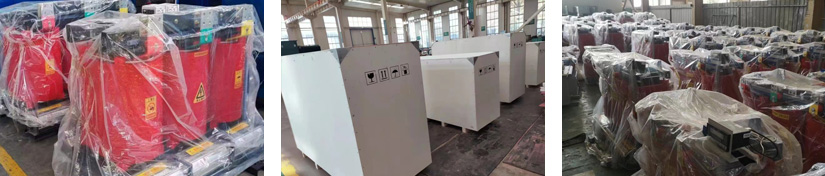

Case show

Business Cooperation

Grow business with Hengfengyou

Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.

Our advantages

- Authoritative certification: ISO, ANSI, CB, etc
- Perfect SQA quality management system and patented technology to ensure high quality products
- Efficient production equipment and low raw material prices to ensure the price advantage
- Sufficient inventory, short delivery time and fast delivery worldwide
- Perfect after-sales service system, allowing customers to buy worry-free
- Provide OEM/ODM services. Welcome clients to visit our factory.
