Amorphous Alloy Transformer

35kV Three Phase Amorphous Alloy Distribution Transformer

Brand: HENGFENGYOU
Series: SH15
USES: Distribution transformer
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、KEMA

Get Quotes

Product overview

- Lower loss, 70-80% energy saving than S9 type transformer, can operate 120% rated load
- Actual measurement is better than GB and IEC standards
- More than 50 countries and regions around the world run verification of high reliability
- It is mainly used in 35kV distribution network of State Grid, power supply and distribution system of industrial and mining enterprises and civil buildings
- Products are mainly sold to Russia, Belarus, Ukraine, Uzbekistan, Kazakhstan, Tajikistan, Turkmenistan, Kyrgyzstan, Vietnam, North Korea and other countries and regions
- Executive standard: IEC 60076 series, GB/T25446-2010, GB1094 series

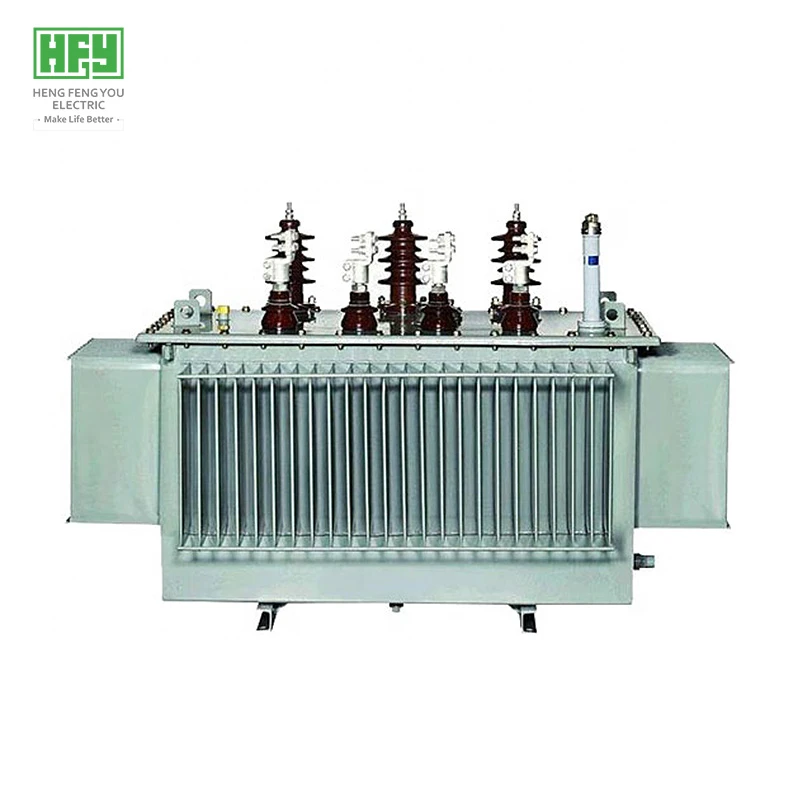

35kV Three Phase Amorphous Alloy Distribution Transformer

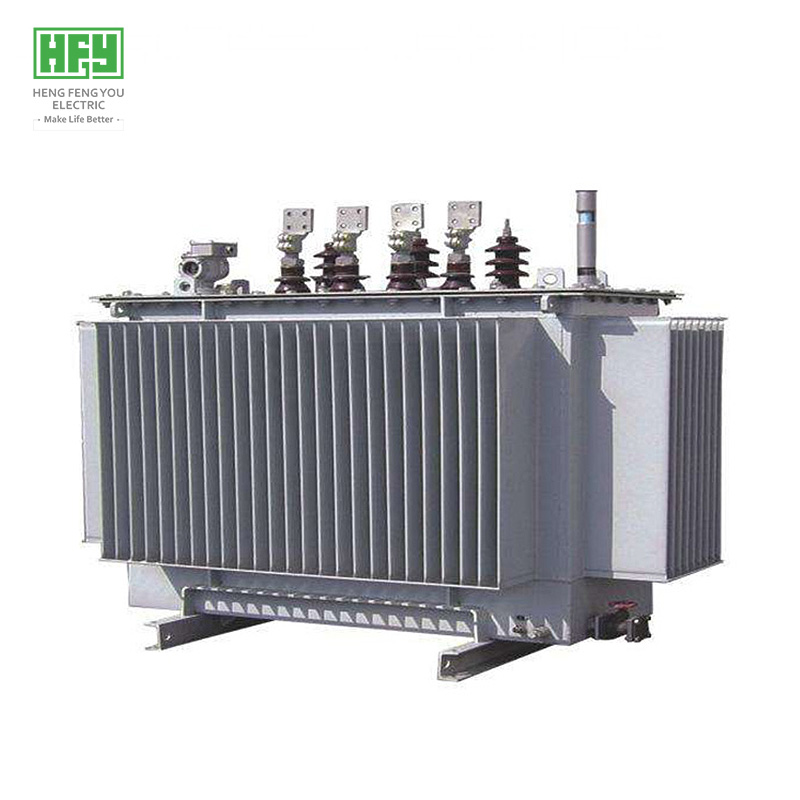

35kV Three Phase Amorphous Alloy Distribution Transformer

Product advantage

- High pressure copper strip winding technology, flame retardant formula vacuum pouring

- Low pressure copper foil winding technology, thermosetting epoxy prepreg cloth insulation

- The high pressure coil is cast under high vacuum, and the casting material system is added with a unique flame retardant filler, which is a patented technology of Hengfengyou Electric

Product specifications

- Input voltage: 35kV
- Output voltage: 0.4kV
- Capacity: 30-2500 kva
- Frequency: 50 hz
- Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

Capacity (kVA)	H.V (kV)	High pressure Tap range(%)	L.V (kV)	Vector GroupSymbol	NO-load loss(kW)		Load loss (kW))	NO-load current (%)	Short circuit impedance (%)
30 kva	6 6.3 10 10.5 11	±2×2.5 ±5	0.4	Dyn11	0.033	0.63/0.6		1.5	4.0
50 kva					0.043	0.91/0.87		1.2
63 kva					0.050	1.09/1.04		1.1
80 kva					0.060	1.31/1.25		1
100 kva					0.075	1.58/1.50		0.9
125 kva					0.085	1.89/1.8		0.8
160 kva					0.100	2.31/2.20		0.6
200 kva					0.120	2.73/2.60		0.6
250 kva					0.140	3.2/3.05		0.6
315 kva					0.170	3.83/3.65		0.5
400 kva					0.200	4.52/4.30		0.5
500 kva					0.240	5.41/5.15		0.5
630 kva					0.320	6.20		0.3	4.5
800 kva					0.380	7.50		0.3
1000 kva					0.450	10.3		0.3
1250 kva					0.530	12		0.2
1600 kva					0.630	14.5		0.2	5.0
2000 kva					0.750	18.3		0.2
2500 kva					0.900	21.2		0.2
