From High to Low Voltage: Tech Deep Dive and Selection Guide for European Compact Substations

Writer： Hengfeng you electric Time：2026-07-19 views：times

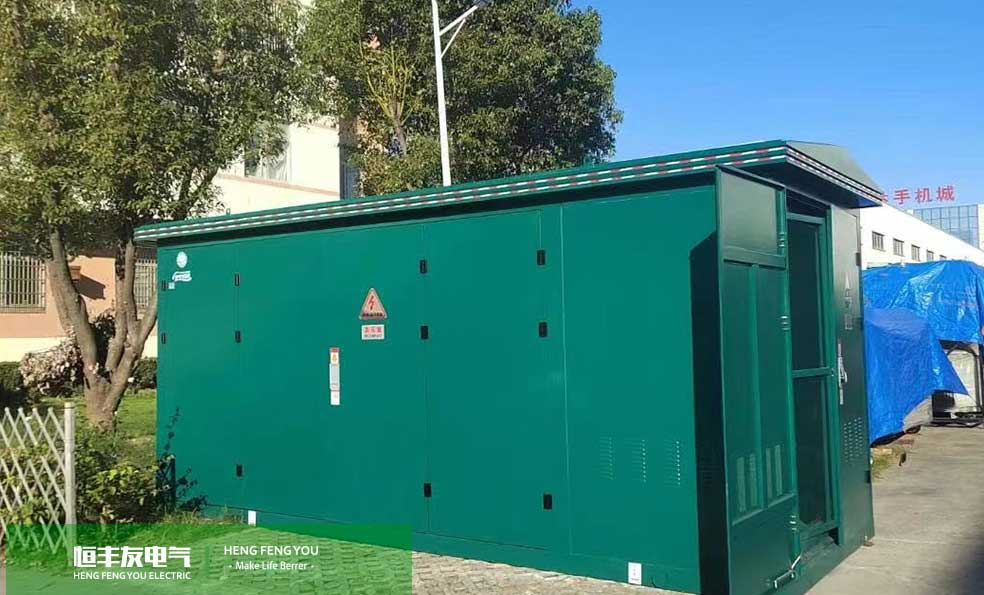

 Amid the surging waves of modern urban construction and grid modernization, a highly integrated piece of electrical equipment is quietly reshaping the traditional power distribution landscape—the outdoor prefabricated compact substation (European type). Leveraging its minimal footprint, rapid construction cycle, and safe, reliable operations, it has become the ideal choice to replace conventional civil-work distribution rooms and penetrate deeply into load centers. It is truly the "compact power steward" of modern distribution networks.

I. Fundamental Definition and Operating Principles of Prefabricated Compact Substations

The European-type compact substation, officially termed the prefabricated compact substation, is a factory-assembled, compact, complete power distribution package. It integrates high-voltage switchgear, distribution transformers, and low-voltage distribution devices into a single enclosure according to a specific wiring scheme. Fully compliant with standards such as GB/T 17467 and IEC 1330, its rated voltage ranges from 6 kV to 35 kV, with transformer capacities typically spanning from 30 kVA to 6,300 kVA.

Compared with American-type box substations, the European type features a more distinct and structured layout. While the American type adopts an integrated arrangement where the transformer body and load break switches share the same oil tank—resulting in a smaller volume but relatively simplified protection features—the European type utilizes a linear (in-line) or triangular layout. This design physically isolates the high-voltage compartment, transformer compartment, and low-voltage compartment. Each unit functions independently, offering higher safety and greater ease for expanding distribution network automation functions.

The interior of a European-type compact substation is typically partitioned into three independent functional compartments, each tasked with distinct power distribution roles:

• High-Voltage (HV) Compartment: Houses ring main units (RMUs), load break switch-fuse combinations, or vacuum circuit breakers (VCBs) to receive and distribute electrical energy. It supports various configurations including ring main, terminal, and dual-power supply modes. The rated current on the HV side can reach up to 630 A, with a short-circuit breaking capacity of up to 63 kA. It features a comprehensive "five-prevention" mechanical interlocking system to guarantee operational safety.

• Transformer Compartment: Accommodates either oil-immersed or cast resin dry-type transformers, serving as the core link for voltage transformation. This compartment is usually equipped with an automatic forced-air cooling system and an automated temperature controller. When the indoor temperature exceeds the preset threshold, axial flow fans automatically trigger to dissipate heat. The noise level of oil-immersed units is kept at $\le$ 65 dB, while dry-type units operate even more quietly at $\le$ 55 dB.

• Low-Voltage (LV) Compartment: Built with LV distribution cabinets (such as GGD types), integrating power distribution, energy metering, reactive power compensation, and smart control systems. The rated current of the main circuit can reach up to 4,000 A, and multiple outgoing feeder branch circuits can be configured according to user specifications.


III. Core Performance and Key Advantages

Compared with traditional brick-and-mortar distribution rooms, the European-type compact substation offers significant comparative advantages, which explains its widespread adoption in urban and rural grid construction.

1. Ultra-Small Footprint and Flexible Site Selection The most prominent attribute of the European-type compact substation is its high integration and compact footprint. For an identical capacity, its footprint is typically only 1/10 to 1/5 of a conventional civil-work substation. This characteristic allows it to easily penetrate dense urban centers, residential communities, commercial hubs, and other land-scarce areas. By embedding directly into load centers, it significantly shortens the supply radius of low-voltage lines, slashes line losses, and enhances power supply quality.

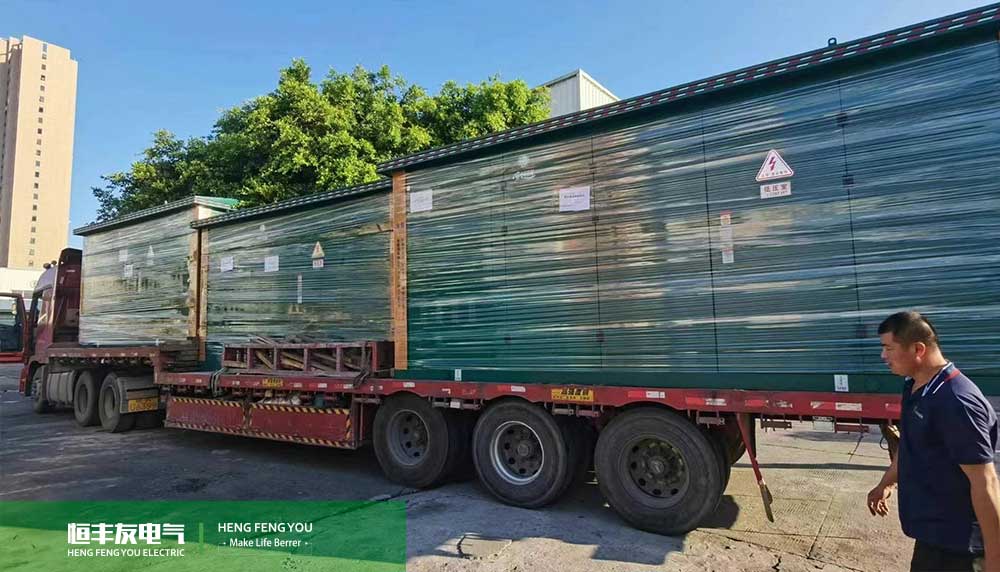

2. Factory Prefabrication and Rapid Commissioning All equipment within the substation is pre-assembled, wired, and rigorously commissioned inside the factory. Once shipped as a whole to the project site, the onsite workflow involves merely hoisting the unit onto a pre-cast concrete foundation and terminating the external power cables. This "turnkey" engineering model drastically compresses the onsite construction timeline, eliminates tedious civil engineering and component installation steps, and enables power supply to respond much faster to demand.

3. Safe, Reliable, and High-Class Protection The enclosure is fabricated from robust materials such as channel steel, aluminum alloys, or composite color-coated steel plates, rendering the entire structure highly resistant to corrosion, moisture, dust, and condensation. The outdoor ingress protection rating generally reaches IP54, with some customized configurations reaching even higher. The roof features a dual-layer structure that provides effective thermal insulation, preventing interior condensation from dripping onto live equipment. Each compartment is physically independent and outfitted with automated door-controlled lighting and safety interlocks to ensure the absolute safety of operating and maintenance personnel.

4. Diverse Aesthetics and Environmental Friendliness To seamlessly blend into modern urban architecture, the enclosure material and exterior color can be fully customized. Beyond traditional metal enclosures, eco-friendly non-metallic enclosures made from cement, fly ash, and perlite (such as Fiber-Cement Boards/Jinbang Boards) are widely available. These materials offer green benefits, low weight, high structural strength, excellent soundproofing, and thermal insulation, allowing the substation to harmonize perfectly with scenic spots, villa communities, public parks, and other surrounding environments.

IV. Principal Application Scenarios

The application scenarios for European-type compact substations are exceptionally diverse, covering virtually all outdoor venues requiring 10 kV to 35 kV power distribution:

• Urban Grids: Residential communities, high-rise buildings, commercial centers, and urban street lighting.

• Industrial & Mining Enterprises: Industrial parks, manufacturing plants, oilfields, seaports, and airports.

• Infrastructure: Highways, bridges, tunnels, subways, and transit stations.

• Renewable Energy: Solar photovoltaic (PV) power plants and wind farms, serving as dedicated step-up substations for energy aggregation and grid connection.

• Temporary Power Supplies: Fast power provisioning for large-scale construction sites and mobile field operations.


V. Critical Procurement and Selection Guidelines

When configuring and selecting a compact substation, project technical teams must holistically evaluate their actual operational needs:

• Transformer Capacity and Type: Select the optimal capacity (kVA) based on the load profile. Choose between oil-immersed or dry-type transformers depending on fire safety and environmental mandates. Dry-type transformers offer superior fire-retardant properties, making them ideal for underground or densely populated zones. Oil-immersed transformers feature lower upfront costs and robust continuous overload tolerance.

• Power Supply Configuration: Determine whether a ring main configuration (capable of forming a "hand-in-hand" loop network for maximum reliability) or a terminal configuration (single-circuit incoming line) is required.

• Ingress Protection (IP) Rating: Choose an appropriate IP rating based on local climate and environmental factors to ensure long-term, stable operations in dusty, rainy, or high-salt-spray coastal environments.

• Smart Grid Requirements: If unmanned operations or "Four Remote" capabilities (Telemetering, Teleindication, Telecontrol, and Teleregulation) are required, the substation should be configured with integrated microcomputer protection and automated communication units.

VI. Conclusion

Leveraging its outstanding advantages of high integration, low capital expenditure, rapid ROI, and rock-solid safety, the outdoor prefabricated compact substation (European type) has become an indispensable cornerstone of modern distribution grid construction. It effectively resolves the pain point of site acquisition for traditional substations in urban spaces. With its flexible configurations and field-proven reliability, it delivers an unyielding power guarantee for diverse global industries, serving as a true "backbone force" of modern urban power distribution.

As a premium, specialized electrical equipment manufacturer and service provider, we are fully committed to delivering customized smart compact substation solutions to global clients. Whether your project is for urban distribution grids, industrial plants, or renewable energy ventures like solar and wind power, we provide high-quality equipment that rigorously aligns with international standards.

Feel free to contact our engineering team anytime for detailed technical proposals and factory-direct commercial quotes:

• Official Inquiry Email: hunter@hengfengyou.com
