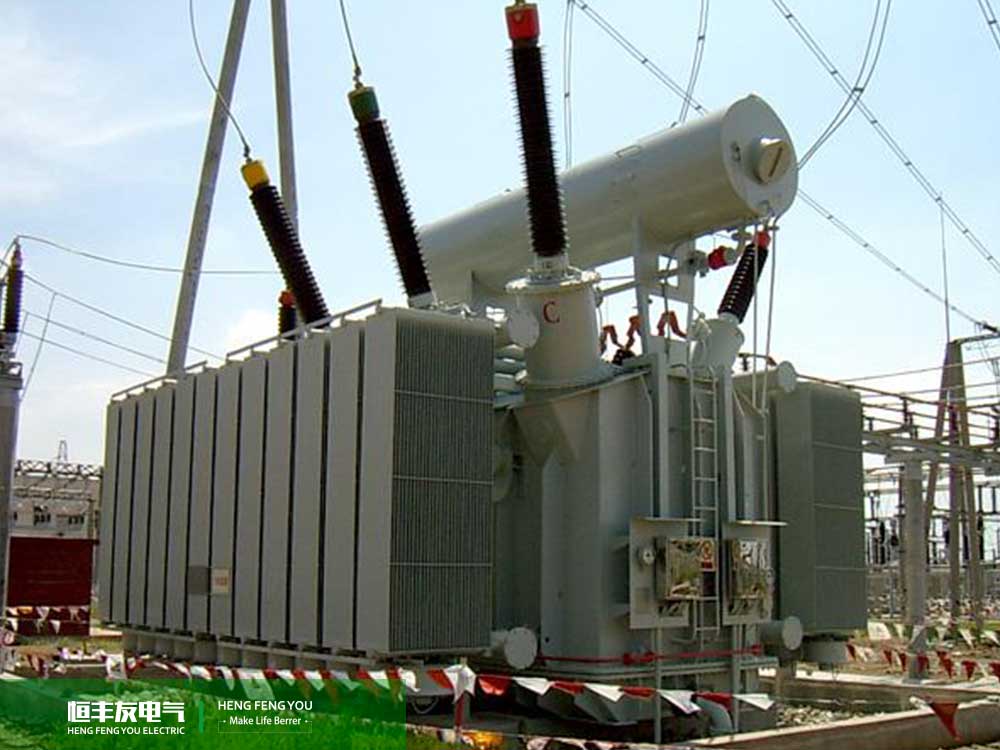

Green Hydrogen Era: End-to-End Solutions for Large-Scale Water Electrolysis Hydrogen Production Rectifier Transformers

Writer： Hengfeng you electric Time：2026-04-28 views：times

I. Project Overview and Technical Specifications

This solution details the customized delivery of 16 specialized hydrogen production rectifier transformers by Hengfengyou Electric for a landmark project in the Middle East. As the core conversion equipment linking renewable energy arrays to electrolyzers, these units must meet the rigorous demands of water electrolysis: low voltage, ultra-high current, and high grid compatibility. The scope covers the entire lifecycle—from design validation and precision manufacturing to international maritime logistics and site commissioning.

Table: Key Technical Parameters for Hydrogen Rectifier Transformers (Example)

II. Design and Development Phase

2.1 Precision Electromagnetic Design

The engineering team utilizes the Ansys Maxwell simulation platform to optimize for hydrogen production duty cycles. Through precise winding phase-offset design, Total Harmonic Distortion (THD) is minimized, significantly improving DC side current smoothness and extending the service life of the electrolyzers. The core utilizes premium domestic silicon steel sheets combined with advanced lamination processes to minimize no-load losses.

2.2 Structural Reinforcement and Thermal Management

Engineered for the high temperatures and intense UV radiation of the Middle East:

Tank Strength Simulation: Finite Element Analysis (FEA) via ANSYS ensures the tank structure remains stable and leak-free under the thermal stress caused by volatile renewable energy load fluctuations.

Cooling System Optimization: Specialized oil duct distribution enhances thermal stability, preventing unscheduled downtime due to localized overheating and ensuring continuous hydrogen production.

2.3 Global Standard Compliance

The design must pass internal reviews and meet the grid connection standards of local Middle Eastern utilities (such as Saudi SEC). Focus areas include loss metrics, noise levels (≤70dB), and resilience against load fluctuations from wind and solar power.

III. Manufacturing Phase

3.1 Core Component Fabrication and Inspection

Core Manufacturing: A six-step longitudinal lap process is used to strictly control lamination precision and reduce magnetic reluctance.

Winding Fabrication: Wound in clean-room environments using specialized transposed conductors to handle low-voltage/high-current characteristics while enhancing mechanical strength and conductivity.

Material Re-testing: 100% of incoming copper conductors, insulation paper, and transformer oil undergo rigorous electrical and physicochemical testing.

3.2 Intelligent Management Module Integration

Real-time online monitoring systems are integrated to track dissolved gases in the oil (DGA), capturing anomalies at the parts-per-million (PPM) level. This enables a shift from reactive maintenance to proactive early warning, mitigating the risk of premature equipment aging due to renewable energy volatility.

3.3 Surface Anti-Corrosion Treatment

A triple-layer heavy-duty coating system is applied: Epoxy zinc-rich primer + Epoxy micaceous iron oxide intermediate coat + Acrylic polyurethane topcoat. The total dry film thickness (DFT) exceeds 280μm, ensuring long-term protection in coastal and desert environments.

IV. Testing and Validation Phase (FAT)

4.1 Laboratory Stress Testing

Simulation of over 10,000 load-step stress tests validates the fatigue strength of the equipment under renewable energy load fluctuations.

4.2 Routine and Type Testing

Every unit undergoes a full suite of factory tests before dispatch, including DC resistance, ratio verification, and insulation oil analysis.

Harmonic Analysis: Verifying the actual cancellation effect of the 24-pulse windings on various harmonic orders.

Partial Discharge (PD) Measurement: At 1.5Um/√3 voltage, PD levels are strictly controlled below 50pC.

Temperature Rise Test: Simulating full-load operation in extreme outdoor Middle Eastern temperatures.

V. Packaging, Logistics, and Global Delivery

5.1 International Logistics Standards

Real-time Monitoring: Units are equipped with 3D impact recorders and GPS tracking terminals to monitor vibration and shock levels throughout sea and land transit.

5.2 Vertically Integrated Delivery

Leveraging the vertical integration of five business units—transformers, switchgear, and cables—we provide a "one-stop" solution from the high-voltage substation to the low-voltage rectification unit, significantly shortening project lead times.

VI. On-Site Delivery and Commissioning (SAT)

6.1 Site Handover and Installation

Hengfengyou’s service team collaborates with local engineers for unboxing inspections, impact data retrieval, and positioning.

Vacuum Oil Filling: Vacuum is drawn to specified levels before injecting qualified oil, followed by a 48-hour standing period for degassing.

6.2 Site Acceptance Testing (SAT)

Commissioning tests are performed in accordance with AS/NZS 60076:

Frequency Response Analysis (SFRA): Comparing site results with factory fingerprints to ensure no transport-related displacement.

Integrated Commissioning: Validating signal logic consistency between the transformer, rectifier cabinets, and electrolyzer control systems.

6.3 Formal Energization

System reliability is confirmed through five consecutive no-load impulse closing tests and subsequent on-load operation under renewable energy drive.

VII. Full-Process Quality Control

A comprehensive quality gate system is established across six key control points: design review, material inspection, semi-finished product testing, FAT, transport monitoring, and SAT. Each unit is delivered with a complete bilingual (Chinese/English) technical dossier, including factory test reports, certificates of conformity, and full-lifecycle maintenance manuals.

VIII. Conclusion

The hydrogen rectifier transformer is a critical asset on the balance sheet of any hydrogen production plant. Through a "Technology Leadership + Global Delivery" dual-drive model, Hengfengyou Electric addresses the operational pain points of Middle Eastern clients, converting volatile green energy into stable value and contributing to global decarbonization goals.
